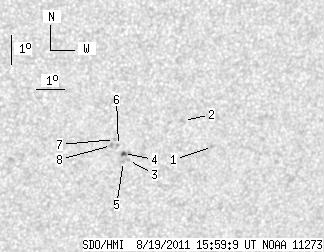

SDO HMI 2011-08-19 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 13.86 | 1.09 | 8.38 | -18.76 | 113.93 | 24.28 | 222.68 | 0.5763 | -361.7 | -295.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.89 | -18.86 | 116.62 | 26.97 | 225.54 | 0.6035 | 704.0 | 576.5 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -17.93 | 115.43 | 25.78 | 225.45 | 0.5828 | 635.0 | 549.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -19.18 | 113.69 | 24.03 | 221.91 | 0.5780 | -479.0 | -399.9 | |
| 1.80 | 3.87 | 1.09 | 2.34 | -18.93 | 113.47 | 23.82 | 221.96 | 0.5735 | -772.8 | -634.1 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -19.20 | 113.51 | 23.86 | 221.68 | 0.5766 | -577.0 | -445.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -18.65 | 113.25 | 23.60 | 222.05 | 0.5685 | -704.0 | -599.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -18.44 | 113.08 | 23.43 | 222.10 | 0.5647 | -897.0 | -711.4 | |
| 0.00 | 1.89 | 0.00 | 1.13 | -18.64 | 113.01 | 23.35 | 221.77 | 0.5660 | -766.0 | -655.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
