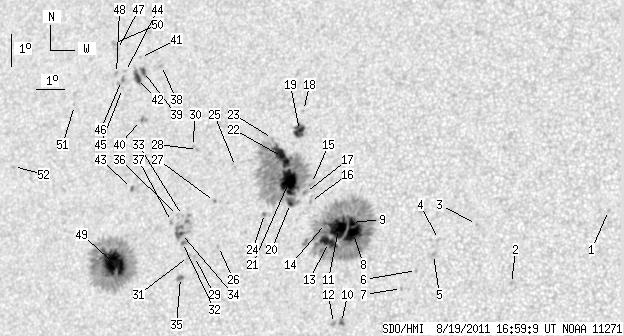

SDO HMI 2011-08-19 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.24 | 837.94 | 93.42 | 474.42 | 15.85 | 61.29 | -27.81 | 69.00 | 0.4821 | -263.3 | -96.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.94 | 16.53 | 73.35 | -15.75 | 56.40 | 0.3138 | -745.0 | -445.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 14.19 | 70.35 | -18.75 | 66.68 | 0.3408 | -730.0 | -531.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 15.95 | 69.02 | -20.08 | 63.37 | 0.3709 | -918.0 | -670.4 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 15.43 | 67.79 | -21.31 | 65.77 | 0.3857 | -808.0 | -599.2 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 14.97 | 67.67 | -21.43 | 67.02 | 0.3850 | -933.0 | -653.9 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 14.46 | 67.15 | -21.95 | 68.69 | 0.3901 | -776.0 | -595.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 13.88 | 66.71 | -22.40 | 70.40 | 0.3943 | -676.0 | -610.1 | |
| 16.10 | 296.39 | 8.82 | 162.86 | 15.49 | 64.88 | -24.22 | 67.86 | 0.4285 | -1471.4 | -442.0 | |
| 4.68 | -8.00 | 2.57 | -8.00 | 15.82 | 64.77 | -24.33 | 67.20 | 0.4318 | -1129.6 | 999999 | |
| 1.89 | 3.33 | 1.03 | 1.81 | 12.76 | 64.78 | -24.32 | 74.20 | 0.4192 | -964.0 | -792.0 | |
| 23.93 | -8.00 | 13.17 | -8.00 | 15.62 | 64.35 | -24.75 | 67.94 | 0.4369 | -1056.7 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.23 | 12.71 | 64.51 | -24.59 | 74.42 | 0.4231 | -819.0 | -673.2 | |
| 11.69 | -8.00 | 6.44 | -8.00 | 15.17 | 64.06 | -25.04 | 69.10 | 0.4391 | -936.1 | 999999 | |
| 1.17 | -8.00 | 0.65 | -8.00 | 15.75 | 63.88 | -25.22 | 67.95 | 0.4443 | -643.6 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.30 | 16.95 | 63.22 | -25.88 | 65.84 | 0.4595 | -171.0 | -82.5 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 16.40 | 63.26 | -25.84 | 66.97 | 0.4562 | -841.0 | -591.6 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 16.66 | 63.05 | -26.05 | 66.55 | 0.4605 | -109.0 | -236.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 19.18 | 62.57 | -26.53 | 61.83 | 0.4805 | 492.0 | 362.8 | |
| 10.79 | 13.85 | 6.08 | 7.80 | 18.56 | 62.54 | -26.56 | 63.07 | 0.4774 | -860.7 | -483.4 | |
| 2.43 | 229.56 | 1.36 | 129.22 | 16.30 | 62.57 | -26.53 | 67.60 | 0.4656 | 289.1 | -301.9 | |
| 28.51 | -20.00 | 15.99 | -20.00 | 16.94 | 62.41 | -26.70 | 66.39 | 0.4709 | -1202.6 | 999999 | |
| 17.36 | -20.00 | 9.79 | -20.00 | 17.73 | 62.03 | -27.07 | 65.06 | 0.4800 | -936.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 18.26 | 61.62 | -27.48 | 64.28 | 0.4884 | -557.0 | -391.0 | |
| 1.08 | 1.89 | 0.61 | 1.06 | 15.95 | 61.70 | -27.40 | 68.82 | 0.4764 | 563.3 | 433.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 17.33 | 60.44 | -28.66 | 66.79 | 0.5002 | 611.0 | 368.7 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 14.85 | 60.22 | -28.88 | 71.75 | 0.4935 | 697.0 | 626.4 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 16.22 | 59.87 | -29.24 | 69.24 | 0.5035 | 860.0 | 684.1 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 17.78 | 58.97 | -30.13 | 66.76 | 0.5223 | 835.0 | 662.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 14.50 | 59.41 | -29.69 | 72.78 | 0.5041 | 936.0 | 786.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 17.86 | 58.77 | -30.33 | 66.71 | 0.5254 | 605.0 | 539.8 | |
| 0.00 | 2.07 | 0.00 | 1.19 | 14.48 | 59.19 | -29.91 | 72.88 | 0.5071 | 803.0 | 665.0 | |
| 1.17 | 2.88 | 0.67 | 1.66 | 14.90 | 58.91 | -30.19 | 72.19 | 0.5124 | 924.0 | 603.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 15.72 | 58.78 | -30.32 | 70.68 | 0.5170 | 698.0 | 601.1 | |
| 0.81 | 22.22 | 0.47 | 12.82 | 15.17 | 58.83 | -30.27 | 71.71 | 0.5144 | 1088.9 | 775.6 | |
| 2.61 | 3.33 | 1.50 | 1.91 | 13.83 | 59.00 | -30.10 | 74.23 | 0.5080 | 885.9 | 725.4 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 15.71 | 58.60 | -30.50 | 70.78 | 0.5195 | 732.0 | 656.6 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 15.51 | 58.41 | -30.69 | 71.22 | 0.5215 | 801.0 | 578.9 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 20.29 | 57.10 | -32.01 | 63.32 | 0.5585 | 773.0 | 666.0 | |
| 2.88 | 13.31 | 1.73 | 7.99 | 20.06 | 56.46 | -32.64 | 64.04 | 0.5657 | 925.7 | 714.1 | |
| 0.36 | 3.96 | 0.21 | 2.35 | 18.54 | 56.69 | -32.42 | 66.53 | 0.5562 | -528.8 | -257.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 20.49 | 56.24 | -32.86 | 63.44 | 0.5704 | 608.0 | 499.1 | |
| 4.95 | -39.00 | 2.97 | -39.00 | 19.83 | 56.28 | -32.82 | 64.52 | 0.5669 | 979.5 | 999999 | |
| 1.35 | 1.80 | 0.80 | 1.06 | 16.43 | 56.77 | -32.33 | 70.20 | 0.5473 | 710.7 | 763.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 20.02 | 55.78 | -33.33 | 64.46 | 0.5743 | 661.0 | 559.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 19.49 | 55.79 | -33.32 | 65.35 | 0.5719 | 722.0 | 662.8 | |
| 0.00 | 4.41 | 0.00 | 2.66 | 19.73 | 55.69 | -33.41 | 64.98 | 0.5742 | 759.0 | 716.3 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 20.68 | 55.30 | -33.80 | 63.60 | 0.5832 | 775.0 | 639.9 | |
| 0.00 | 1.80 | 0.00 | 1.09 | 19.93 | 55.45 | -33.65 | 64.76 | 0.5781 | 599.0 | 507.8 | |
| 31.48 | 193.85 | 18.56 | 114.37 | 14.11 | 56.50 | -32.60 | 74.49 | 0.5444 | 1165.4 | 367.9 | |
| 0.00 | 2.43 | 0.00 | 1.48 | 20.86 | 55.10 | -34.00 | 63.42 | 0.5865 | 649.0 | 540.2 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 18.84 | 54.07 | -35.03 | 67.17 | 0.5916 | 552.0 | 465.7 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 16.81 | 52.14 | -36.96 | 71.16 | 0.6104 | 615.0 | 451.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
