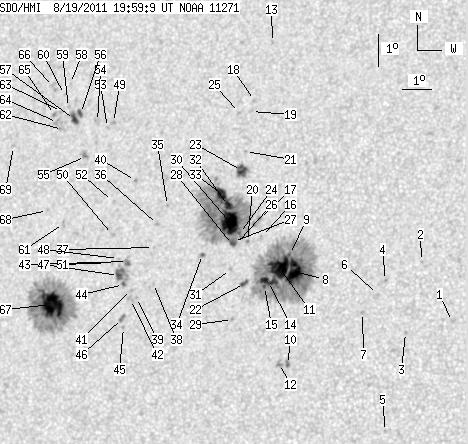

SDO HMI 2011-08-19 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.58 | 872.18 | 92.96 | 487.04 | 15.92 | 61.27 | -26.17 | 67.94 | 0.4591 | -188.7 | -107.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.85 | 14.26 | 70.24 | -17.20 | 64.88 | 0.3179 | -744.0 | -529.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.06 | 69.06 | -18.38 | 61.27 | 0.3471 | -879.0 | -707.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 13.87 | 68.73 | -18.71 | 67.58 | 0.3384 | -838.0 | -720.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 15.43 | 67.92 | -19.52 | 64.15 | 0.3595 | -966.0 | -732.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 10.83 | 68.30 | -19.14 | 76.70 | 0.3324 | -802.0 | -589.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 14.99 | 67.70 | -19.74 | 65.51 | 0.3601 | -854.0 | -661.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 14.42 | 67.25 | -20.19 | 67.40 | 0.3636 | -935.0 | -755.5 | |
| 19.97 | 299.31 | 10.81 | 162.46 | 15.58 | 64.80 | -22.64 | 66.55 | 0.4059 | -1452.5 | -458.2 | |
| 0.81 | -8.00 | 0.44 | -8.00 | 16.09 | 64.60 | -22.84 | 65.52 | 0.4115 | -653.7 | 999999 | |
| 0.36 | 2.97 | 0.19 | 1.60 | 12.73 | 64.89 | -22.55 | 73.38 | 0.3919 | -1077.5 | -852.2 | |
| 25.09 | -8.00 | 13.64 | -8.00 | 15.68 | 64.31 | -23.13 | 66.69 | 0.4136 | -1129.3 | 999999 | |
| 0.00 | 4.41 | 0.00 | 2.38 | 12.75 | 64.62 | -22.82 | 73.49 | 0.3962 | -760.0 | -664.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 22.63 | 62.99 | -24.45 | 53.55 | 0.4768 | -708.0 | -568.0 | |
| 8.81 | -8.00 | 4.80 | -8.00 | 15.23 | 63.98 | -23.46 | 67.95 | 0.4161 | -977.2 | 999999 | |
| 1.17 | -8.00 | 0.64 | -8.00 | 15.07 | 63.87 | -23.57 | 68.40 | 0.4171 | -816.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.60 | 63.57 | -23.87 | 65.18 | 0.4290 | -536.0 | -409.4 | |
| 1.53 | 4.77 | 0.84 | 2.62 | 17.15 | 63.43 | -24.01 | 64.09 | 0.4341 | 465.5 | 281.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 20.79 | 62.68 | -24.76 | 57.30 | 0.4672 | -760.0 | -586.5 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 20.44 | 62.64 | -24.80 | 58.01 | 0.4654 | -667.0 | -531.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 16.42 | 63.11 | -24.33 | 65.91 | 0.4347 | -804.0 | -587.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 19.19 | 62.63 | -24.81 | 60.48 | 0.4573 | 517.0 | 402.6 | |
| 3.69 | 3.69 | 2.02 | 2.02 | 15.13 | 63.17 | -24.27 | 68.73 | 0.4276 | -655.0 | -581.0 | |
| 8.99 | 12.68 | 5.00 | 7.04 | 18.60 | 62.58 | -24.86 | 61.72 | 0.4542 | -921.6 | -638.4 | |
| 1.08 | 238.78 | 0.59 | 132.55 | 16.65 | 62.80 | -24.64 | 65.63 | 0.4403 | -1023.3 | -336.1 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 20.39 | 62.22 | -25.22 | 58.47 | 0.4705 | -768.0 | -573.5 | |
| 0.27 | -24.00 | 0.15 | -24.00 | 16.31 | 62.71 | -24.73 | 66.43 | 0.4399 | -167.0 | 999999 | |
| 1.26 | -24.00 | 0.69 | -24.00 | 16.40 | 62.63 | -24.81 | 66.30 | 0.4415 | -335.2 | 999999 | |
| 1.80 | -24.00 | 0.99 | -24.00 | 16.31 | 62.60 | -24.84 | 66.52 | 0.4414 | 278.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.01 | 62.89 | -24.55 | 71.43 | 0.4270 | 695.0 | 409.7 | |
| 27.70 | -24.00 | 15.33 | -24.00 | 16.98 | 62.44 | -25.00 | 65.20 | 0.4471 | -1297.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 15.54 | 62.64 | -24.80 | 68.17 | 0.4372 | -724.0 | -428.5 | |
| 5.58 | -24.00 | 3.09 | -24.00 | 17.50 | 62.29 | -25.15 | 64.21 | 0.4519 | -1089.8 | 999999 | |
| 6.30 | -24.00 | 3.50 | -24.00 | 17.82 | 62.00 | -25.44 | 63.76 | 0.4579 | -980.3 | 999999 | |
| 0.54 | 1.62 | 0.30 | 0.90 | 15.95 | 61.60 | -25.84 | 67.93 | 0.4540 | 685.2 | 478.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 17.39 | 60.15 | -27.29 | 65.89 | 0.4813 | 829.0 | 623.0 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 16.79 | 59.89 | -27.55 | 67.25 | 0.4822 | 903.0 | 694.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 16.07 | 59.85 | -27.59 | 68.69 | 0.4796 | 852.0 | 639.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 14.97 | 60.01 | -27.43 | 70.85 | 0.4730 | 823.0 | 613.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 14.51 | 59.47 | -27.97 | 72.05 | 0.4792 | 836.0 | 758.7 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 18.09 | 58.87 | -28.57 | 65.30 | 0.5023 | 986.0 | 833.4 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 14.75 | 59.26 | -28.18 | 71.66 | 0.4830 | 824.0 | 682.5 | |
| 0.00 | 2.88 | 0.00 | 1.63 | 14.44 | 59.27 | -28.17 | 72.28 | 0.4819 | 683.0 | 718.3 | |
| 0.00 | 4.95 | 0.00 | 2.81 | 15.59 | 59.00 | -28.44 | 70.09 | 0.4899 | 898.0 | 834.0 | |
| 1.35 | 15.56 | 0.76 | 8.83 | 14.88 | 58.96 | -28.48 | 71.52 | 0.4879 | 963.2 | 834.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 13.57 | 59.14 | -28.30 | 74.11 | 0.4811 | 718.0 | 607.7 | |
| 0.00 | 3.33 | 0.00 | 1.88 | 13.85 | 59.07 | -28.37 | 73.58 | 0.4830 | 1030.0 | 824.1 | |
| 5.22 | -44.00 | 2.96 | -44.00 | 15.15 | 58.74 | -28.70 | 71.09 | 0.4919 | 919.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 15.67 | 58.66 | -28.78 | 70.10 | 0.4949 | 844.0 | 639.9 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 19.84 | 57.73 | -29.71 | 62.78 | 0.5263 | 911.0 | 730.7 | |
| 0.00 | 2.07 | 0.00 | 1.18 | 16.39 | 58.33 | -29.11 | 68.86 | 0.5024 | 793.0 | 554.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 15.53 | 58.47 | -28.97 | 70.46 | 0.4972 | 705.0 | 614.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 17.40 | 58.16 | -29.28 | 67.02 | 0.5090 | 584.0 | 522.1 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 19.67 | 57.54 | -29.90 | 63.20 | 0.5280 | 814.0 | 687.3 | |
| 0.00 | 4.32 | 0.00 | 2.53 | 19.84 | 57.13 | -30.31 | 63.15 | 0.5342 | 696.0 | 593.6 | |
| 1.62 | 4.50 | 0.95 | 2.63 | 18.73 | 56.91 | -30.53 | 65.25 | 0.5318 | -501.8 | 139.4 | |
| 3.24 | 11.42 | 1.91 | 6.74 | 20.05 | 56.45 | -30.99 | 63.18 | 0.5441 | 906.3 | 784.5 | |
| 4.86 | -56.00 | 2.87 | -56.00 | 19.85 | 56.26 | -31.18 | 63.63 | 0.5456 | 973.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 20.96 | 55.86 | -31.58 | 61.96 | 0.5562 | 525.0 | 382.0 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 20.21 | 55.96 | -31.48 | 63.18 | 0.5513 | 645.0 | 536.4 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 20.60 | 55.71 | -31.73 | 62.65 | 0.5563 | 686.0 | 565.0 | |
| 0.00 | 1.98 | 0.00 | 1.15 | 16.63 | 56.50 | -30.94 | 69.29 | 0.5288 | 717.0 | 590.2 | |
| 0.00 | 3.06 | 0.00 | 1.81 | 19.51 | 55.88 | -31.56 | 64.42 | 0.5490 | 784.0 | 607.3 | |
| 0.00 | 1.89 | 0.00 | 1.12 | 20.07 | 55.72 | -31.72 | 63.55 | 0.5536 | 749.0 | 547.2 | |
| 0.00 | 4.41 | 0.00 | 2.62 | 19.72 | 55.65 | -31.79 | 64.19 | 0.5530 | 632.0 | 714.8 | |
| 0.00 | 1.89 | 0.00 | 1.12 | 19.96 | 55.48 | -31.96 | 63.87 | 0.5563 | 797.0 | 629.1 | |
| 0.00 | 4.32 | 0.00 | 2.58 | 20.82 | 55.24 | -32.20 | 62.54 | 0.5635 | 460.0 | 570.0 | |
| 35.34 | 196.33 | 20.49 | 113.82 | 14.13 | 56.47 | -30.97 | 73.97 | 0.5213 | 1229.3 | 388.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 16.99 | 55.83 | -31.61 | 68.92 | 0.5392 | 610.0 | 485.6 | |
| 0.00 | 1.71 | 0.00 | 1.03 | 18.88 | 54.16 | -33.28 | 66.38 | 0.5689 | 161.0 | 305.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
