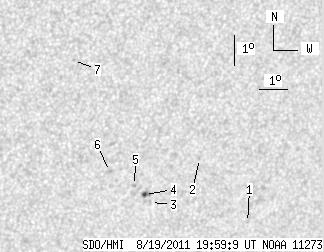

SDO HMI 2011-08-19 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 11.25 | 1.27 | 6.88 | -18.42 | 113.42 | 25.98 | 225.00 | 0.5894 | -270.7 | -271.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.47 | -20.14 | 117.45 | 30.01 | 226.95 | 0.6448 | 609.0 | 494.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -17.86 | 115.25 | 27.81 | 227.65 | 0.6030 | 764.0 | 635.0 | |
| 0.00 | 1.80 | 0.00 | 1.11 | -19.25 | 113.72 | 26.28 | 224.33 | 0.6005 | -438.0 | -341.8 | |
| 2.07 | 3.42 | 1.27 | 2.10 | -18.96 | 113.46 | 26.02 | 224.40 | 0.5952 | -764.0 | -645.7 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -18.64 | 113.05 | 25.61 | 224.35 | 0.5881 | -724.0 | -629.8 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -18.12 | 112.09 | 24.65 | 223.92 | 0.5735 | -543.0 | -383.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.38 | 110.36 | 22.92 | 226.92 | 0.5184 | -666.0 | -533.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
