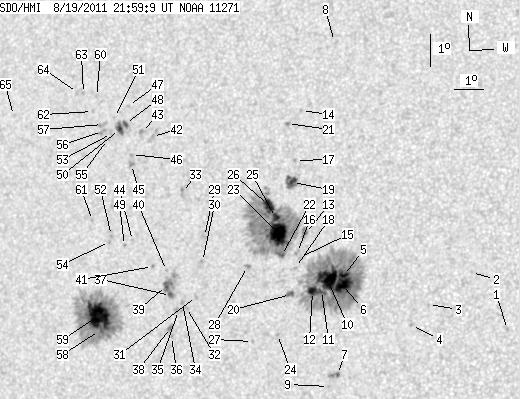

SDO HMI 2011-08-19 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.22 | 865.92 | 83.21 | 479.67 | 15.97 | 61.12 | -25.21 | 67.22 | 0.4455 | -120.5 | -108.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.79 | 14.34 | 70.40 | -15.94 | 63.11 | 0.2996 | -904.0 | -649.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.05 | 69.08 | -17.26 | 59.92 | 0.3309 | -735.0 | -574.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.02 | 67.75 | -18.59 | 64.30 | 0.3431 | -843.0 | -561.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 14.35 | 67.24 | -19.09 | 66.61 | 0.3467 | -828.0 | -631.4 | |
| 3.06 | 289.07 | 1.64 | 155.75 | 15.79 | 64.82 | -21.51 | 65.14 | 0.3906 | -1352.3 | -496.1 | |
| 13.67 | -5.00 | 7.35 | -5.00 | 15.51 | 64.82 | -21.52 | 65.81 | 0.3891 | -1566.5 | 999999 | |
| 0.63 | 4.05 | 0.34 | 2.16 | 12.76 | 64.92 | -21.41 | 72.67 | 0.3746 | -1106.6 | -849.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 23.03 | 63.46 | -22.87 | 51.21 | 0.4607 | -245.0 | -365.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 12.38 | 64.66 | -21.68 | 73.81 | 0.3773 | -686.0 | -497.0 | |
| 25.54 | -5.00 | 13.78 | -5.00 | 15.64 | 64.29 | -22.04 | 65.93 | 0.3974 | -1134.8 | 999999 | |
| 0.45 | -5.00 | 0.24 | -5.00 | 15.30 | 64.13 | -22.20 | 66.88 | 0.3980 | -895.0 | 999999 | |
| 6.12 | -5.00 | 3.31 | -5.00 | 15.26 | 63.83 | -22.51 | 67.22 | 0.4022 | -933.4 | 999999 | |
| 1.17 | 5.13 | 0.64 | 2.79 | 17.02 | 63.37 | -22.96 | 63.52 | 0.4185 | 764.2 | 190.1 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 20.82 | 62.67 | -23.66 | 56.23 | 0.4532 | -795.0 | -636.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 16.28 | 63.26 | -23.07 | 65.29 | 0.4158 | -855.0 | -601.3 | |
| 0.00 | 2.43 | 0.00 | 1.32 | 16.43 | 63.17 | -23.16 | 65.02 | 0.4179 | -699.0 | -569.8 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 19.26 | 62.71 | -23.62 | 59.32 | 0.4417 | 338.0 | 311.0 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 15.96 | 63.16 | -23.17 | 66.08 | 0.4156 | -652.0 | -399.4 | |
| 4.77 | 13.31 | 2.62 | 7.33 | 18.57 | 62.71 | -23.63 | 60.75 | 0.4372 | -1025.6 | -718.1 | |
| 1.53 | 3.78 | 0.83 | 2.05 | 15.13 | 63.09 | -23.24 | 68.06 | 0.4124 | -844.5 | -621.3 | |
| 0.00 | 2.61 | 0.00 | 1.45 | 20.39 | 62.25 | -24.09 | 57.47 | 0.4556 | -871.0 | -590.8 | |
| 1.35 | 232.95 | 0.74 | 128.18 | 16.31 | 62.64 | -23.70 | 65.70 | 0.4250 | 319.0 | -355.8 | |
| 26.98 | -22.00 | 14.80 | -22.00 | 16.98 | 62.45 | -23.89 | 64.37 | 0.4313 | -1320.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 13.89 | 62.79 | -23.55 | 71.16 | 0.4115 | 804.0 | 586.8 | |
| 4.32 | -22.00 | 2.37 | -22.00 | 17.47 | 62.27 | -24.06 | 63.46 | 0.4365 | -1047.1 | 999999 | |
| 10.70 | -22.00 | 5.91 | -22.00 | 17.82 | 61.98 | -24.36 | 62.94 | 0.4427 | -925.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 13.64 | 61.96 | -24.37 | 72.22 | 0.4229 | -663.0 | -508.7 | |
| 0.00 | 2.52 | 0.00 | 1.39 | 15.92 | 61.51 | -24.82 | 67.37 | 0.4392 | 763.0 | 518.6 | |
| 0.00 | 2.61 | 0.00 | 1.46 | 16.76 | 59.88 | -26.45 | 66.64 | 0.4665 | 849.0 | 684.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 15.99 | 59.92 | -26.41 | 68.21 | 0.4624 | 876.0 | 715.0 | |
| 0.00 | 2.25 | 0.00 | 1.25 | 14.91 | 59.86 | -26.47 | 70.51 | 0.4588 | 998.0 | 745.9 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 14.56 | 59.56 | -26.78 | 71.41 | 0.4619 | 811.0 | 645.5 | |
| 0.00 | 2.79 | 0.00 | 1.58 | 18.07 | 58.89 | -27.45 | 64.66 | 0.4868 | 875.0 | 741.3 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 14.70 | 59.40 | -26.94 | 71.19 | 0.4648 | 946.0 | 750.9 | |
| 0.00 | 4.59 | 0.00 | 2.56 | 14.45 | 59.29 | -27.04 | 71.77 | 0.4654 | 626.0 | 709.6 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 13.65 | 59.15 | -27.19 | 73.53 | 0.4649 | 787.0 | 548.5 | |
| 2.34 | 23.29 | 1.31 | 13.09 | 14.89 | 58.95 | -27.39 | 71.01 | 0.4720 | 919.2 | 822.3 | |
| 0.00 | 3.33 | 0.00 | 1.86 | 13.92 | 59.08 | -27.26 | 72.98 | 0.4668 | 1097.0 | 853.4 | |
| 2.07 | -37.00 | 1.16 | -37.00 | 15.19 | 58.77 | -27.57 | 70.49 | 0.4758 | 1038.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 15.65 | 58.70 | -27.64 | 69.59 | 0.4785 | 872.0 | 660.6 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 15.75 | 58.18 | -28.15 | 69.66 | 0.4862 | 758.0 | 613.2 | |
| 0.00 | 5.94 | 0.00 | 3.42 | 19.74 | 57.49 | -28.85 | 62.42 | 0.5143 | 974.0 | 517.9 | |
| 0.00 | 3.87 | 0.00 | 2.24 | 19.84 | 57.06 | -29.27 | 62.51 | 0.5205 | 962.0 | 772.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 16.50 | 57.35 | -28.99 | 68.60 | 0.5011 | 683.0 | 558.0 | |
| 0.00 | 3.78 | 0.00 | 2.18 | 18.84 | 56.89 | -29.44 | 64.45 | 0.5177 | -402.0 | -148.2 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 19.14 | 56.83 | -29.50 | 63.93 | 0.5200 | 779.0 | 596.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 20.65 | 56.41 | -29.93 | 61.49 | 0.5333 | 680.0 | 520.9 | |
| 2.16 | 10.88 | 1.26 | 6.35 | 20.09 | 56.42 | -29.92 | 62.48 | 0.5303 | 933.6 | 814.9 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 16.33 | 57.08 | -29.25 | 69.06 | 0.5041 | 811.0 | 629.1 | |
| 5.31 | -48.00 | 3.10 | -48.00 | 19.89 | 56.23 | -30.10 | 62.94 | 0.5316 | 962.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 20.25 | 55.97 | -30.36 | 62.46 | 0.5369 | 617.0 | 568.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 16.61 | 56.56 | -29.77 | 68.78 | 0.5124 | 719.0 | 579.9 | |
| 0.00 | 2.52 | 0.00 | 1.47 | 19.75 | 55.96 | -30.37 | 63.35 | 0.5345 | 703.0 | 664.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 16.42 | 56.52 | -29.81 | 69.15 | 0.5123 | 753.0 | 612.4 | |
| 0.00 | 2.34 | 0.00 | 1.37 | 19.56 | 55.86 | -30.48 | 63.76 | 0.5349 | 656.0 | 606.7 | |
| 0.00 | 3.24 | 0.00 | 1.90 | 19.79 | 55.62 | -30.72 | 63.48 | 0.5392 | 809.0 | 715.2 | |
| 0.00 | 3.87 | 0.00 | 2.27 | 20.01 | 55.57 | -30.76 | 63.13 | 0.5409 | 694.0 | 600.7 | |
| 0.99 | 194.45 | 0.57 | 111.53 | 13.69 | 56.58 | -29.75 | 74.42 | 0.5025 | 894.8 | 383.7 | |
| 37.06 | -58.00 | 21.24 | -58.00 | 14.14 | 56.48 | -29.85 | 73.56 | 0.5053 | 1249.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 20.86 | 55.15 | -31.18 | 61.89 | 0.5506 | 596.0 | 493.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 17.03 | 55.79 | -30.54 | 68.37 | 0.5248 | 570.0 | 450.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 20.39 | 55.11 | -31.22 | 62.73 | 0.5488 | 724.0 | 542.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 20.93 | 54.64 | -31.69 | 62.08 | 0.5574 | 646.0 | 608.8 | |
| 0.00 | 1.98 | 0.00 | 1.18 | 20.95 | 54.41 | -31.93 | 62.19 | 0.5605 | 648.0 | 538.7 | |
| 0.00 | 1.71 | 0.00 | 1.04 | 20.08 | 52.14 | -34.19 | 64.80 | 0.5855 | 538.0 | 347.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
