SDO HMI 2011-08-19 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.66 | 871.46 | 94.16 | 478.41 | 15.91 | 61.20 | -24.03 | 66.51 | 0.4285 | -197.9 | -112.5 | |
|
previous
or next observation for the same group /

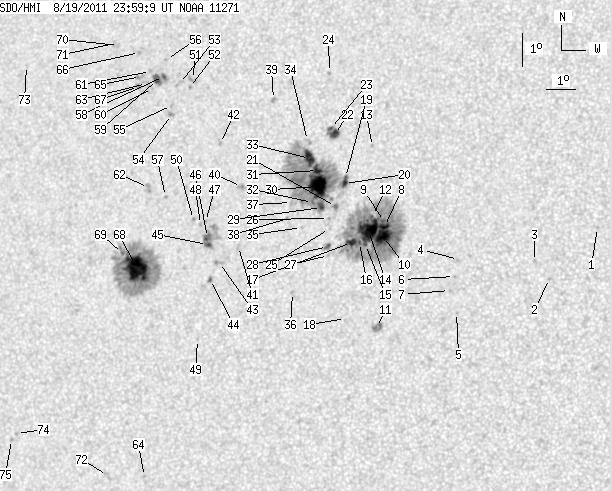

back to the solar disc SDO HMI 2011-08-19 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.60 | 16.02 | 71.84 | -13.40 | 53.89 | 0.2769 | -749.0 | -536.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 14.41 | 70.39 | -14.84 | 61.36 | 0.2839 | -1002.0 | -773.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 14.92 | 69.87 | -15.36 | 60.56 | 0.2953 | -780.0 | -588.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 14.90 | 67.38 | -17.85 | 63.84 | 0.3315 | -725.0 | -655.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 13.28 | 67.44 | -17.79 | 68.44 | 0.3211 | -714.0 | -567.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 14.37 | 67.29 | -17.94 | 65.41 | 0.3296 | -958.0 | -735.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.94 | 67.16 | -18.07 | 66.78 | 0.3290 | -763.0 | -652.2 | |
| 3.87 | 293.35 | 2.07 | 156.92 | 15.82 | 64.83 | -20.41 | 64.08 | 0.3746 | -1280.4 | -470.6 | |
| 1.71 | -8.00 | 0.91 | -8.00 | 15.97 | 64.81 | -20.42 | 63.72 | 0.3757 | -1034.9 | 999999 | |
| 13.85 | -8.00 | 7.39 | -8.00 | 15.51 | 64.82 | -20.41 | 64.85 | 0.3728 | -1551.7 | 999999 | |
| 0.00 | 8.10 | 0.00 | 4.29 | 12.72 | 64.85 | -20.38 | 72.12 | 0.3585 | -1016.0 | -850.9 | |
| 0.54 | -8.00 | 0.29 | -8.00 | 16.14 | 64.39 | -20.84 | 63.71 | 0.3829 | -632.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 18.26 | 64.13 | -21.10 | 59.00 | 0.4005 | -662.0 | -647.3 | |
| 27.26 | -8.00 | 14.60 | -8.00 | 15.67 | 64.30 | -20.93 | 64.93 | 0.3813 | -1133.9 | 999999 | |
| 1.35 | -8.00 | 0.72 | -8.00 | 15.24 | 64.25 | -20.98 | 66.05 | 0.3797 | -869.8 | 999999 | |
| 1.17 | -8.00 | 0.63 | -8.00 | 15.29 | 64.04 | -21.19 | 66.10 | 0.3830 | -1005.6 | 999999 | |
| 5.13 | -8.00 | 2.75 | -8.00 | 15.28 | 63.77 | -21.46 | 66.35 | 0.3869 | -960.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 12.95 | 63.80 | -21.43 | 72.20 | 0.3756 | -539.0 | -541.2 | |
| 1.80 | 236.23 | 0.97 | 128.90 | 17.26 | 63.33 | -21.90 | 62.05 | 0.4049 | -485.6 | -334.5 | |
| 3.42 | -19.00 | 1.85 | -19.00 | 17.08 | 63.32 | -21.91 | 62.48 | 0.4039 | 767.8 | 999999 | |
| 1.80 | 3.96 | 0.97 | 2.14 | 16.36 | 63.10 | -22.13 | 64.34 | 0.4027 | -854.7 | -747.9 | |
| 5.76 | 11.33 | 3.14 | 6.19 | 18.57 | 62.78 | -22.45 | 59.67 | 0.4211 | -1050.0 | -709.6 | |
| 1.71 | -22.00 | 0.93 | -22.00 | 18.75 | 62.62 | -22.61 | 59.45 | 0.4246 | -641.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 20.49 | 62.32 | -22.91 | 56.15 | 0.4409 | -773.0 | -680.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.68 | 62.98 | -22.25 | 66.05 | 0.4006 | -726.0 | -442.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 15.98 | 62.91 | -22.32 | 65.39 | 0.4033 | -751.0 | -547.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 14.85 | 63.04 | -22.19 | 67.98 | 0.3955 | -384.0 | -390.1 | |
| 2.79 | 3.96 | 1.50 | 2.14 | 15.12 | 62.97 | -22.26 | 67.37 | 0.3978 | -740.8 | -525.3 | |
| 1.62 | -19.00 | 0.88 | -19.00 | 16.31 | 62.63 | -22.60 | 64.86 | 0.4092 | 310.6 | 999999 | |
| 26.36 | -19.00 | 14.34 | -19.00 | 16.95 | 62.45 | -22.78 | 63.56 | 0.4154 | -1306.7 | 999999 | |
| 4.68 | -19.00 | 2.55 | -19.00 | 17.44 | 62.35 | -22.88 | 62.55 | 0.4198 | -1053.7 | 999999 | |
| 1.17 | -19.00 | 0.64 | -19.00 | 16.45 | 62.30 | -22.93 | 64.81 | 0.4146 | -755.5 | 999999 | |
| 11.24 | -19.00 | 6.15 | -19.00 | 17.80 | 62.02 | -23.21 | 62.05 | 0.4265 | -925.2 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.88 | 18.35 | 61.88 | -23.35 | 61.00 | 0.4320 | -519.0 | -433.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 15.66 | 62.02 | -23.21 | 66.81 | 0.4145 | -640.0 | -435.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 13.67 | 61.94 | -23.29 | 71.56 | 0.4067 | -748.0 | -578.2 | |
| 0.00 | 2.25 | 0.00 | 1.23 | 16.41 | 61.59 | -23.65 | 65.45 | 0.4247 | -303.0 | -255.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 15.92 | 61.51 | -23.72 | 66.62 | 0.4232 | 552.0 | 455.2 | |
| 0.00 | 1.89 | 0.00 | 1.05 | 19.56 | 60.50 | -24.74 | 59.71 | 0.4585 | -786.0 | -693.2 | |
| 0.00 | 2.97 | 0.00 | 1.65 | 16.82 | 59.79 | -25.44 | 65.87 | 0.4525 | 857.0 | 727.7 | |
| 0.00 | 2.70 | 0.00 | 1.49 | 14.98 | 59.93 | -25.30 | 69.73 | 0.4419 | 755.0 | 676.9 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 18.11 | 58.85 | -26.38 | 63.89 | 0.4723 | 900.0 | 752.4 | |
| 0.00 | 3.87 | 0.00 | 2.14 | 14.46 | 59.34 | -25.89 | 71.20 | 0.4486 | 814.0 | 729.8 | |
| 1.44 | 2.34 | 0.80 | 1.30 | 13.92 | 59.09 | -26.14 | 72.48 | 0.4503 | 863.8 | 767.3 | |
| 2.34 | 23.84 | 1.30 | 13.27 | 14.99 | 58.85 | -26.38 | 70.32 | 0.4577 | 921.2 | 745.7 | |
| 4.68 | -45.00 | 2.61 | -45.00 | 15.20 | 58.82 | -26.41 | 69.88 | 0.4590 | 1046.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 15.69 | 58.68 | -26.55 | 68.94 | 0.4630 | 808.0 | 593.3 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 15.59 | 58.52 | -26.71 | 69.24 | 0.4649 | 731.0 | 628.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 12.08 | 58.85 | -26.38 | 76.64 | 0.4485 | 628.0 | 491.0 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 15.73 | 58.25 | -26.98 | 69.10 | 0.4693 | 804.0 | 663.3 | |
| 0.00 | 4.41 | 0.00 | 2.52 | 20.03 | 57.50 | -27.73 | 61.15 | 0.5012 | 858.0 | 731.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 19.78 | 57.44 | -27.80 | 61.66 | 0.5006 | 910.0 | 784.8 | |
| 0.00 | 2.88 | 0.00 | 1.65 | 19.88 | 57.05 | -28.18 | 61.73 | 0.5062 | 676.0 | 682.2 | |
| 0.00 | 3.06 | 0.00 | 1.75 | 18.91 | 56.94 | -28.29 | 63.62 | 0.5025 | -594.0 | -260.8 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 19.19 | 56.89 | -28.34 | 63.13 | 0.5046 | 761.0 | 632.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 20.60 | 56.43 | -28.80 | 60.85 | 0.5184 | 715.0 | 589.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 16.38 | 57.16 | -28.07 | 68.38 | 0.4876 | 811.0 | 639.6 | |
| 2.07 | 13.76 | 1.19 | 7.95 | 20.07 | 56.42 | -28.81 | 61.82 | 0.5155 | 932.3 | 666.5 | |
| 6.30 | -58.00 | 3.64 | -58.00 | 19.96 | 56.22 | -29.01 | 62.14 | 0.5176 | 953.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 19.67 | 56.10 | -29.13 | 62.75 | 0.5177 | 643.0 | 509.8 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 20.20 | 55.92 | -29.31 | 61.92 | 0.5228 | 677.0 | 511.1 | |
| 0.00 | 4.05 | 0.00 | 2.31 | 16.62 | 56.51 | -28.72 | 68.25 | 0.4978 | 912.0 | 694.5 | |
| 0.00 | 2.97 | 0.00 | 1.72 | 19.82 | 55.85 | -29.38 | 62.65 | 0.5218 | 745.0 | 675.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 7.83 | 57.39 | -27.84 | 86.20 | 0.4655 | -785.0 | -636.5 | |
| 0.00 | 4.14 | 0.00 | 2.41 | 20.02 | 55.58 | -29.65 | 62.45 | 0.5263 | 764.0 | 631.3 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 20.76 | 55.39 | -29.84 | 61.26 | 0.5328 | 913.0 | 727.0 | |
| 0.00 | 2.34 | 0.00 | 1.36 | 19.71 | 55.57 | -29.66 | 63.01 | 0.5248 | 839.0 | 692.0 | |
| 36.07 | 188.64 | 20.47 | 107.06 | 14.15 | 56.45 | -28.78 | 73.15 | 0.4898 | 1241.5 | 423.2 | |
| 1.53 | -68.00 | 0.87 | -68.00 | 14.55 | 55.89 | -29.34 | 72.58 | 0.4991 | 654.9 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.27 | 20.94 | 54.56 | -30.67 | 61.48 | 0.5444 | 615.0 | 518.7 | |
| 0.00 | 1.98 | 0.00 | 1.17 | 20.99 | 54.39 | -30.84 | 61.49 | 0.5468 | 600.0 | 508.0 | |
| 0.00 | 3.51 | 0.00 | 1.98 | 7.78 | 56.11 | -29.12 | 86.30 | 0.4852 | -628.0 | -547.5 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 20.10 | 51.22 | -34.01 | 64.69 | 0.5832 | 506.0 | 378.7 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 8.86 | 52.76 | -32.47 | 84.24 | 0.5352 | 826.0 | 638.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 8.67 | 52.60 | -32.63 | 84.61 | 0.5376 | 757.0 | 574.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
