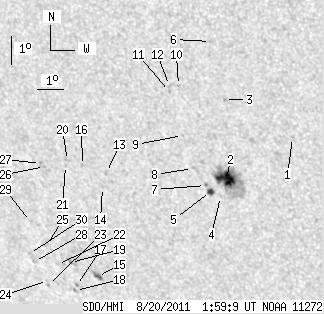

SDO HMI 2011-08-20 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.51 | 103.22 | 13.87 | 67.02 | -21.51 | 55.13 | -29.00 | 135.75 | 0.6467 | 236.2 | 195.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.77 | -19.50 | 59.67 | -24.46 | 138.02 | 0.5858 | 722.0 | 508.8 | |
| 14.49 | 60.83 | 9.18 | 38.54 | -21.04 | 57.02 | -27.11 | 136.97 | 0.6255 | 1083.1 | 466.0 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -18.34 | 57.44 | -26.69 | 134.14 | 0.5963 | 730.0 | 643.7 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -21.67 | 56.67 | -27.46 | 137.35 | 0.6347 | 404.0 | 193.6 | |
| 3.42 | 4.41 | 2.19 | 2.83 | -21.52 | 56.33 | -27.80 | 136.83 | 0.6364 | 651.4 | 422.7 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -16.43 | 57.25 | -26.89 | 131.44 | 0.5808 | 619.0 | 541.1 | |
| 0.45 | 1.26 | 0.29 | 0.81 | -21.33 | 56.19 | -27.94 | 136.46 | 0.6359 | 574.2 | 654.2 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -20.77 | 55.83 | -28.31 | 135.45 | 0.6342 | 456.0 | 455.8 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -19.66 | 55.68 | -28.45 | 133.97 | 0.6256 | 762.0 | 546.4 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -17.97 | 55.85 | -28.28 | 132.03 | 0.6091 | 601.0 | 531.9 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -18.19 | 55.48 | -28.65 | 131.95 | 0.6148 | 656.0 | 489.5 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -17.99 | 55.52 | -28.62 | 131.73 | 0.6126 | 544.0 | 487.3 | |
| 0.00 | 1.98 | 0.00 | 1.32 | -21.11 | 52.52 | -31.61 | 132.78 | 0.6685 | -219.0 | -376.7 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -21.65 | 52.23 | -31.90 | 133.15 | 0.6755 | -529.0 | -470.9 | |
| 3.15 | 4.95 | 2.21 | 3.47 | -24.82 | 51.17 | -32.96 | 135.79 | 0.7106 | 647.6 | 549.3 | |
| 0.00 | 1.44 | 0.00 | 0.96 | -20.93 | 51.64 | -32.49 | 131.81 | 0.6755 | -657.0 | -571.4 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -25.21 | 50.20 | -33.93 | 135.42 | 0.7218 | -686.0 | -607.8 | |
| 0.00 | 1.89 | 0.00 | 1.35 | -25.39 | 50.10 | -34.03 | 135.54 | 0.7241 | -553.0 | -502.4 | |
| 0.00 | 2.70 | 0.00 | 1.91 | -24.39 | 50.22 | -33.92 | 134.55 | 0.7154 | -775.0 | -567.4 | |
| 0.00 | 2.07 | 0.00 | 1.39 | -20.80 | 51.09 | -33.04 | 131.20 | 0.6797 | -599.0 | -523.6 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -20.98 | 50.97 | -33.16 | 131.31 | 0.6822 | -587.0 | -484.5 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -24.50 | 49.66 | -34.48 | 134.23 | 0.7211 | -673.0 | -570.6 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -25.26 | 49.04 | -35.09 | 134.56 | 0.7320 | -417.0 | -351.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -25.11 | 49.05 | -35.08 | 134.41 | 0.7308 | -113.0 | -251.0 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -23.86 | 49.41 | -34.72 | 133.32 | 0.7183 | -553.0 | -451.8 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -21.07 | 50.12 | -34.01 | 130.73 | 0.6910 | -682.0 | -573.6 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -20.98 | 49.99 | -34.14 | 130.51 | 0.6916 | -717.0 | -619.6 | |
| 0.00 | 1.53 | 0.00 | 1.10 | -24.47 | 48.73 | -35.40 | 133.47 | 0.7288 | -394.0 | -457.5 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -23.05 | 49.01 | -35.12 | 132.11 | 0.7159 | -627.0 | -539.0 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -24.19 | 48.61 | -35.52 | 133.08 | 0.7278 | -602.0 | -542.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
