SDO HMI 2011-08-20 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.01 | 108.45 | 16.67 | 70.03 | -21.60 | 54.73 | -28.31 | 136.56 | 0.6412 | 230.3 | 182.4 | |
|
previous
or next observation for the same group /

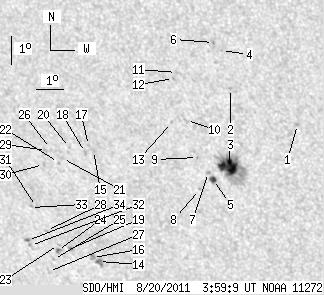

back to the solar disc SDO HMI 2011-08-20 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.93 | -19.51 | 59.70 | -23.34 | 139.35 | 0.5754 | 789.0 | 566.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -18.41 | 57.50 | -25.53 | 135.48 | 0.5854 | 710.0 | 576.8 | |
| 18.36 | 58.32 | 11.53 | 36.60 | -21.08 | 56.97 | -26.07 | 138.12 | 0.6164 | 1053.3 | 445.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.15 | 57.38 | -25.65 | 133.73 | 0.5746 | 747.0 | 626.9 | |
| 3.33 | 4.41 | 2.11 | 2.80 | -21.56 | 56.33 | -26.71 | 138.00 | 0.6269 | 654.7 | 486.9 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -16.90 | 57.14 | -25.90 | 133.13 | 0.5748 | 751.0 | 645.6 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -21.33 | 56.19 | -26.85 | 137.59 | 0.6259 | 697.0 | 562.3 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -21.94 | 55.73 | -27.30 | 137.82 | 0.6358 | 539.0 | 363.9 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -20.84 | 55.89 | -27.15 | 136.70 | 0.6240 | 546.0 | 466.4 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -19.59 | 55.72 | -27.31 | 135.04 | 0.6140 | 369.0 | 394.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -17.98 | 55.65 | -27.39 | 132.96 | 0.6001 | 598.0 | 459.9 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -18.19 | 55.50 | -27.53 | 133.08 | 0.6034 | 648.0 | 506.5 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -19.69 | 55.16 | -27.88 | 134.59 | 0.6204 | 561.0 | 452.6 | |
| 1.17 | 3.69 | 0.81 | 2.55 | -24.74 | 51.20 | -31.84 | 136.66 | 0.7004 | 757.5 | 583.0 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -20.84 | 52.01 | -31.02 | 132.98 | 0.6606 | -775.0 | -652.9 | |
| 0.00 | 2.70 | 0.00 | 1.87 | -24.62 | 51.00 | -32.04 | 136.36 | 0.7010 | 601.0 | 489.6 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -20.68 | 51.86 | -31.17 | 132.66 | 0.6608 | -549.0 | -493.2 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -20.93 | 51.69 | -31.35 | 132.80 | 0.6645 | -736.0 | -566.9 | |
| 0.54 | 1.44 | 0.38 | 1.00 | -24.35 | 50.20 | -32.83 | 135.40 | 0.7057 | -827.7 | -613.3 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -20.80 | 51.11 | -31.93 | 132.14 | 0.6690 | -533.0 | -404.1 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -21.20 | 50.74 | -32.29 | 132.29 | 0.6756 | -708.0 | -532.8 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -21.35 | 50.55 | -32.48 | 132.30 | 0.6787 | -659.0 | -567.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -24.24 | 49.76 | -33.28 | 134.91 | 0.7087 | -485.0 | -539.7 | |
| 1.17 | 3.06 | 0.82 | 2.15 | -24.46 | 49.65 | -33.38 | 135.06 | 0.7114 | -606.0 | -524.2 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -24.80 | 49.39 | -33.65 | 135.21 | 0.7163 | -393.0 | -283.4 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -20.88 | 50.36 | -32.68 | 131.60 | 0.6768 | -445.0 | -325.9 | |
| 0.00 | 1.62 | 0.00 | 1.16 | -25.25 | 49.05 | -33.99 | 135.42 | 0.7227 | -462.0 | -395.8 | |
| 0.00 | 1.62 | 0.00 | 1.13 | -23.78 | 49.42 | -33.62 | 134.12 | 0.7081 | -267.0 | -353.5 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -20.96 | 50.18 | -32.85 | 131.54 | 0.6791 | -349.0 | -413.1 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -21.46 | 49.94 | -33.09 | 131.92 | 0.6853 | -644.0 | -468.8 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -22.95 | 49.26 | -33.78 | 133.07 | 0.7031 | -791.0 | -599.8 | |
| 0.00 | 1.44 | 0.00 | 1.02 | -24.36 | 48.60 | -34.44 | 134.11 | 0.7197 | -652.0 | -558.2 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -23.01 | 49.00 | -34.03 | 132.93 | 0.7058 | -453.0 | -497.4 | |
| 1.44 | 1.98 | 1.02 | 1.41 | -24.19 | 48.53 | -34.51 | 133.86 | 0.7190 | -627.0 | -446.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
