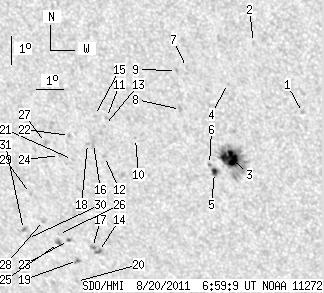

SDO HMI 2011-08-20 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.38 | 110.71 | 16.08 | 70.55 | -21.71 | 54.49 | -26.90 | 138.12 | 0.6294 | 150.9 | 79.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.29 | -19.43 | 59.74 | -21.66 | 141.34 | 0.5592 | 818.0 | 543.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -17.16 | 58.35 | -23.04 | 136.78 | 0.5481 | 612.0 | 556.2 | |
| 17.46 | 57.88 | 10.82 | 35.84 | -21.14 | 56.93 | -24.46 | 139.95 | 0.6024 | 1088.9 | 455.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.58 | 57.25 | -24.15 | 137.26 | 0.5735 | 376.0 | 402.3 | |
| 2.88 | 4.32 | 1.80 | 2.70 | -21.65 | 56.26 | -25.13 | 139.79 | 0.6136 | 597.1 | 291.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -21.38 | 56.13 | -25.26 | 139.34 | 0.6121 | 556.0 | 440.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -18.12 | 55.87 | -25.52 | 135.12 | 0.5825 | 685.0 | 532.1 | |
| 0.00 | 2.16 | 0.00 | 1.34 | -19.55 | 55.42 | -25.97 | 136.41 | 0.6007 | 663.0 | 502.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -18.24 | 55.50 | -25.90 | 134.86 | 0.5874 | 688.0 | 536.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -20.64 | 53.58 | -27.81 | 135.79 | 0.6284 | -520.0 | -294.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -19.98 | 52.65 | -28.74 | 134.08 | 0.6314 | -494.0 | -533.3 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -21.33 | 52.29 | -29.10 | 135.34 | 0.6468 | -681.0 | -598.0 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -20.26 | 52.52 | -28.87 | 134.29 | 0.6352 | -426.0 | -440.8 | |
| 2.07 | 3.60 | 1.41 | 2.44 | -24.71 | 51.24 | -30.15 | 138.12 | 0.6858 | 757.4 | 568.6 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -19.94 | 52.21 | -29.18 | 133.62 | 0.6353 | -598.0 | -481.5 | |
| 0.00 | 3.24 | 0.00 | 2.10 | -20.91 | 51.97 | -29.42 | 134.54 | 0.6460 | -744.0 | -667.4 | |
| 0.00 | 1.98 | 0.00 | 1.34 | -24.58 | 51.04 | -30.35 | 137.80 | 0.6863 | 708.0 | 623.1 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -20.92 | 51.74 | -29.65 | 134.34 | 0.6483 | -732.0 | -648.5 | |
| 0.36 | 2.16 | 0.25 | 1.49 | -25.09 | 50.32 | -31.07 | 137.70 | 0.6968 | -754.5 | -603.5 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -25.86 | 50.06 | -31.34 | 138.28 | 0.7055 | -638.0 | -516.6 | |
| 0.00 | 1.35 | 0.00 | 0.89 | -21.52 | 51.05 | -30.35 | 134.39 | 0.6600 | -558.0 | -448.3 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -20.69 | 51.12 | -30.27 | 133.49 | 0.6523 | -563.0 | -504.8 | |
| 1.44 | 1.80 | 0.99 | 1.23 | -24.39 | 50.16 | -31.23 | 136.81 | 0.6922 | -656.6 | -440.5 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -21.41 | 50.58 | -30.81 | 133.84 | 0.6635 | -696.0 | -636.1 | |
| 1.17 | 3.78 | 0.81 | 2.60 | -24.53 | 49.73 | -31.66 | 136.58 | 0.6970 | -682.8 | -694.4 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -24.20 | 49.82 | -31.57 | 136.31 | 0.6936 | -637.0 | -524.1 | |
| 0.00 | 2.70 | 0.00 | 1.78 | -20.99 | 50.14 | -31.25 | 132.96 | 0.6641 | -700.0 | -585.1 | |
| 0.00 | 2.25 | 0.00 | 1.54 | -23.74 | 49.36 | -32.03 | 135.41 | 0.6938 | -337.0 | -297.9 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -22.82 | 49.11 | -32.29 | 134.16 | 0.6886 | -675.0 | -552.8 | |
| 0.00 | 2.07 | 0.00 | 1.44 | -24.43 | 48.54 | -32.86 | 135.46 | 0.7066 | -688.0 | -490.8 | |
| 0.00 | 3.24 | 0.00 | 2.26 | -24.12 | 48.47 | -32.92 | 135.07 | 0.7047 | -848.0 | -579.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
