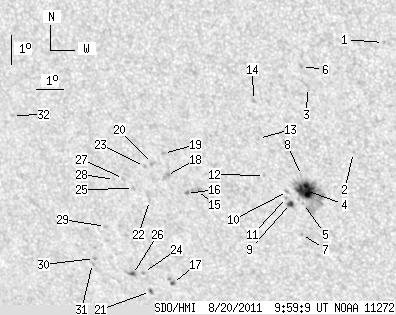

SDO HMI 2011-08-20 09:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.04 | 113.40 | 14.39 | 70.82 | -21.36 | 54.78 | -24.97 | 139.78 | 0.6090 | 125.9 | 66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 09:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.62 | -16.04 | 60.21 | -19.54 | 139.96 | 0.5016 | 730.0 | 596.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -19.78 | 58.74 | -21.01 | 142.57 | 0.5572 | 715.0 | 457.0 | |
| 0.00 | 2.52 | 0.00 | 1.49 | -17.65 | 57.44 | -22.31 | 138.33 | 0.5461 | 573.0 | 408.1 | |
| 16.02 | 56.97 | 9.80 | 34.87 | -21.16 | 56.85 | -22.90 | 141.79 | 0.5888 | 1058.8 | 425.9 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -21.61 | 56.71 | -23.04 | 142.13 | 0.5949 | 320.0 | 316.0 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -16.96 | 57.32 | -22.43 | 137.28 | 0.5400 | 880.0 | 705.1 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -22.70 | 56.44 | -23.30 | 143.00 | 0.6086 | -810.0 | -612.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -20.65 | 56.79 | -22.95 | 141.15 | 0.5839 | 212.0 | 227.2 | |
| 2.52 | 3.24 | 1.56 | 2.00 | -21.64 | 56.24 | -23.51 | 141.60 | 0.5992 | 659.9 | 447.7 | |
| 0.00 | 2.07 | 0.00 | 1.27 | -21.23 | 56.20 | -23.55 | 141.10 | 0.5952 | 512.0 | 375.0 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -21.44 | 56.13 | -23.62 | 141.25 | 0.5980 | 504.0 | 499.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -20.72 | 55.47 | -24.28 | 139.67 | 0.5964 | 540.0 | 437.1 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -19.46 | 55.47 | -24.28 | 138.19 | 0.5837 | 177.0 | 309.9 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -18.19 | 55.49 | -24.26 | 136.63 | 0.5706 | 677.0 | 553.8 | |
| 0.00 | 4.05 | 0.00 | 2.57 | -21.37 | 52.90 | -26.85 | 137.62 | 0.6263 | -740.0 | -699.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -21.50 | 52.50 | -27.24 | 137.36 | 0.6311 | -720.0 | -653.2 | |
| 1.44 | 3.24 | 0.96 | 2.16 | -24.71 | 51.25 | -28.50 | 139.66 | 0.6719 | 645.1 | 621.5 | |
| 0.00 | 4.50 | 0.00 | 2.87 | -20.92 | 51.89 | -27.86 | 136.07 | 0.6314 | -824.0 | -670.2 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -20.17 | 51.93 | -27.82 | 135.22 | 0.6242 | -765.0 | -572.5 | |
| 0.00 | 2.43 | 0.00 | 1.55 | -20.54 | 51.45 | -28.30 | 135.18 | 0.6321 | -680.0 | -484.1 | |
| 1.26 | 2.34 | 0.85 | 1.58 | -25.06 | 50.32 | -29.43 | 139.15 | 0.6827 | -504.1 | -484.6 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -21.83 | 51.06 | -28.68 | 136.31 | 0.6473 | -582.0 | -466.0 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -20.66 | 51.13 | -28.62 | 135.01 | 0.6362 | -728.0 | -505.8 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -24.39 | 50.23 | -29.52 | 138.35 | 0.6776 | -645.0 | -615.3 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -21.45 | 50.55 | -29.20 | 135.37 | 0.6486 | -844.0 | -662.9 | |
| 1.80 | 4.23 | 1.22 | 2.86 | -24.49 | 49.78 | -29.97 | 138.04 | 0.6823 | -739.5 | -549.5 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -21.12 | 50.25 | -29.50 | 134.71 | 0.6486 | -636.0 | -575.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -21.18 | 49.90 | -29.85 | 134.45 | 0.6524 | -513.0 | -400.0 | |
| 0.00 | 1.53 | 0.00 | 1.02 | -22.85 | 49.16 | -30.59 | 135.68 | 0.6735 | -804.0 | -697.9 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -24.01 | 48.43 | -31.32 | 136.32 | 0.6898 | -779.0 | -633.6 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -24.20 | 48.30 | -31.45 | 136.41 | 0.6924 | -649.0 | -538.1 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -19.24 | 46.46 | -33.29 | 129.12 | 0.6702 | -604.0 | -433.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
