SDO HMI 2011-08-20 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.05 | 827.93 | 77.96 | 437.15 | 16.04 | 61.19 | -18.01 | 60.37 | 0.3431 | -214.4 | -119.5 | |
|
previous
or next observation for the same group /

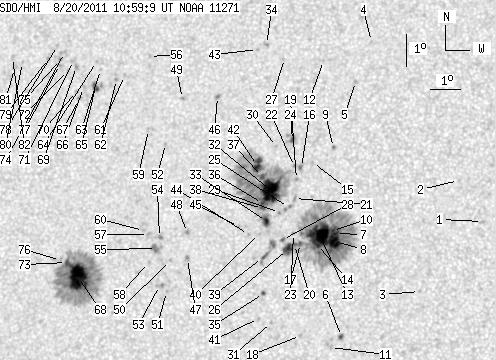

back to the solar disc SDO HMI 2011-08-20 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.29 | 69.49 | -9.71 | 44.35 | 0.2327 | -842.0 | -709.2 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 17.54 | 68.64 | -10.55 | 42.99 | 0.2573 | -639.0 | -464.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 14.11 | 67.58 | -11.62 | 56.63 | 0.2349 | -819.0 | -651.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 21.79 | 65.45 | -13.75 | 40.22 | 0.3433 | -723.0 | -582.1 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 20.53 | 65.03 | -14.17 | 43.71 | 0.3331 | -956.0 | -667.5 | |
| 1.89 | 2.34 | 0.97 | 1.20 | 12.67 | 65.17 | -14.03 | 66.11 | 0.2599 | -964.7 | -729.6 | |
| 2.16 | 276.63 | 1.12 | 143.31 | 15.81 | 64.77 | -14.43 | 56.40 | 0.2891 | -1380.2 | -479.8 | |
| 11.07 | -7.00 | 5.72 | -7.00 | 15.57 | 64.75 | -14.44 | 57.16 | 0.2872 | -1574.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 18.46 | 64.49 | -14.71 | 49.62 | 0.3175 | -930.0 | -823.4 | |
| 0.72 | -7.00 | 0.37 | -7.00 | 15.90 | 64.66 | -14.53 | 56.31 | 0.2913 | -1210.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 12.32 | 64.83 | -14.37 | 67.79 | 0.2630 | -797.0 | -723.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 21.15 | 63.90 | -15.30 | 44.45 | 0.3530 | -721.0 | -593.3 | |
| 29.97 | -7.00 | 15.54 | -7.00 | 15.77 | 64.25 | -14.95 | 57.40 | 0.2960 | -1180.4 | 999999 | |
| 2.88 | -7.00 | 1.49 | -7.00 | 15.46 | 64.21 | -14.99 | 58.38 | 0.2940 | -1022.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.97 | 63.84 | -15.36 | 51.99 | 0.3212 | 746.0 | 500.2 | |
| 0.00 | 3.69 | 0.00 | 1.93 | 17.81 | 63.49 | -15.71 | 53.00 | 0.3242 | 946.0 | 631.9 | |
| 1.98 | -7.00 | 1.03 | -7.00 | 15.47 | 63.65 | -15.55 | 59.19 | 0.3021 | -899.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 12.66 | 63.85 | -15.35 | 67.82 | 0.2802 | -759.0 | -587.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.43 | 63.36 | -15.84 | 54.19 | 0.3225 | 713.0 | 494.7 | |
| 0.54 | -7.00 | 0.28 | -7.00 | 15.43 | 63.46 | -15.74 | 59.59 | 0.3045 | -1029.5 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.27 | 16.85 | 63.34 | -15.85 | 55.78 | 0.3176 | -813.0 | -580.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.83 | 63.26 | -15.94 | 53.32 | 0.3275 | -596.0 | -525.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 15.77 | 63.40 | -15.80 | 58.70 | 0.3080 | -521.0 | -483.8 | |
| 1.89 | 6.93 | 0.99 | 3.65 | 18.63 | 63.11 | -16.09 | 51.54 | 0.3368 | -1027.9 | -620.5 | |
| 0.00 | 3.15 | 0.00 | 1.64 | 16.56 | 63.17 | -16.03 | 56.82 | 0.3176 | -946.0 | -811.5 | |
| 7.20 | -7.00 | 3.75 | -7.00 | 15.27 | 63.24 | -15.96 | 60.37 | 0.3064 | -874.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 21.17 | 62.57 | -16.63 | 46.64 | 0.3686 | -344.0 | -337.1 | |
| 1.35 | 1.98 | 0.70 | 1.03 | 15.57 | 63.06 | -16.14 | 59.76 | 0.3114 | -701.7 | -645.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.40 | 62.89 | -16.31 | 57.68 | 0.3202 | -939.0 | -816.0 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 18.43 | 62.60 | -16.60 | 52.84 | 0.3415 | -826.0 | -646.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.03 | 62.89 | -16.31 | 67.71 | 0.2971 | -932.0 | -687.4 | |
| 26.82 | 228.58 | 14.07 | 120.22 | 17.07 | 62.53 | -16.67 | 56.41 | 0.3306 | -1266.0 | -322.5 | |
| 3.33 | -32.00 | 1.74 | -32.00 | 16.11 | 62.48 | -16.71 | 59.05 | 0.3236 | 407.6 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 21.59 | 61.91 | -17.29 | 46.81 | 0.3806 | -906.0 | -748.4 | |
| 1.53 | 2.07 | 0.80 | 1.08 | 13.90 | 62.56 | -16.63 | 65.34 | 0.3071 | 651.9 | 525.0 | |
| 0.99 | -32.00 | 0.52 | -32.00 | 16.66 | 62.30 | -16.90 | 57.82 | 0.3304 | -964.1 | 999999 | |
| 2.61 | -32.00 | 1.37 | -32.00 | 17.49 | 62.23 | -16.97 | 55.76 | 0.3383 | -799.6 | 999999 | |
| 1.53 | -32.00 | 0.80 | -32.00 | 16.50 | 62.32 | -16.88 | 58.21 | 0.3290 | -829.1 | 999999 | |
| 1.35 | 12.87 | 0.70 | 6.71 | 15.00 | 62.45 | -16.75 | 62.23 | 0.3160 | -619.9 | -670.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.73 | 62.29 | -16.91 | 60.36 | 0.3236 | -699.0 | -482.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.13 | 62.46 | -16.74 | 67.83 | 0.3043 | -701.0 | -522.8 | |
| 9.09 | -32.00 | 4.79 | -32.00 | 17.82 | 62.03 | -17.17 | 55.20 | 0.3438 | -923.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 21.43 | 61.62 | -17.58 | 47.59 | 0.3823 | -671.0 | -473.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.69 | 61.93 | -17.27 | 60.95 | 0.3284 | -775.0 | -549.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.92 | 61.58 | -17.62 | 60.75 | 0.3351 | -780.0 | -574.3 | |
| 0.00 | 2.61 | 0.00 | 1.40 | 19.91 | 60.45 | -18.75 | 52.51 | 0.3826 | -1027.0 | -784.6 | |
| 0.00 | 3.06 | 0.00 | 1.62 | 14.88 | 59.98 | -19.22 | 65.34 | 0.3516 | 990.0 | 760.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 15.68 | 59.90 | -19.30 | 63.32 | 0.3576 | 989.0 | 831.9 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 19.80 | 59.26 | -19.94 | 54.27 | 0.3969 | -772.0 | -564.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 14.80 | 59.42 | -19.78 | 66.09 | 0.3594 | 889.0 | 731.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 13.85 | 59.38 | -19.82 | 68.66 | 0.3550 | 753.0 | 608.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.39 | 58.86 | -20.34 | 57.89 | 0.3910 | 795.0 | 638.7 | |
| 0.00 | 3.24 | 0.00 | 1.72 | 14.02 | 59.13 | -20.07 | 68.41 | 0.3596 | 742.0 | 690.8 | |
| 0.00 | 2.88 | 0.00 | 1.53 | 15.49 | 58.98 | -20.21 | 64.73 | 0.3698 | 1074.0 | 783.4 | |
| 0.00 | 7.56 | 0.00 | 4.03 | 15.15 | 58.92 | -20.28 | 65.65 | 0.3688 | 1160.0 | 860.3 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 21.07 | 57.94 | -21.26 | 53.20 | 0.4243 | 701.0 | 584.1 | |
| 0.00 | 2.43 | 0.00 | 1.30 | 15.57 | 58.61 | -20.59 | 64.89 | 0.3758 | 831.0 | 605.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 14.71 | 58.69 | -20.50 | 66.98 | 0.3697 | 671.0 | 525.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 18.80 | 58.23 | -20.97 | 57.67 | 0.4027 | 833.0 | 705.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.68 | 58.43 | -20.77 | 64.77 | 0.3791 | 909.0 | 707.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 20.44 | 57.16 | -22.03 | 55.35 | 0.4291 | 719.0 | 642.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 20.30 | 56.91 | -22.29 | 55.90 | 0.4315 | 919.0 | 759.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 20.59 | 56.30 | -22.90 | 55.95 | 0.4415 | 724.0 | 529.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 20.83 | 56.12 | -23.08 | 55.65 | 0.4456 | 752.0 | 561.2 | |
| 4.86 | 6.84 | 2.68 | 3.77 | 20.05 | 56.21 | -22.99 | 57.12 | 0.4387 | 946.2 | 781.9 | |
| 0.00 | 1.89 | 0.00 | 1.04 | 20.00 | 55.79 | -23.40 | 57.62 | 0.4438 | 740.0 | 734.7 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 19.65 | 55.71 | -23.49 | 58.41 | 0.4425 | 932.0 | 783.7 | |
| 33.03 | 187.45 | 17.85 | 101.32 | 14.15 | 56.39 | -22.81 | 70.10 | 0.4014 | 1249.3 | 439.4 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 20.64 | 55.44 | -23.76 | 56.68 | 0.4530 | 953.0 | 791.7 | |
| 0.00 | 1.89 | 0.00 | 1.04 | 19.87 | 55.57 | -23.63 | 58.11 | 0.4458 | 855.0 | 673.4 | |
| 0.00 | 2.70 | 0.00 | 1.50 | 20.82 | 55.31 | -23.89 | 56.46 | 0.4561 | 803.0 | 629.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 20.50 | 55.15 | -24.05 | 57.24 | 0.4558 | 763.0 | 654.5 | |
| 1.26 | -68.00 | 0.68 | -68.00 | 14.59 | 55.93 | -23.26 | 69.36 | 0.4102 | 705.7 | 999999 | |
| 0.00 | 3.33 | 0.00 | 1.86 | 21.06 | 54.94 | -24.25 | 56.35 | 0.4624 | 606.0 | 558.7 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 20.83 | 54.84 | -24.36 | 56.88 | 0.4621 | 903.0 | 763.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 14.64 | 55.72 | -23.48 | 69.38 | 0.4135 | 729.0 | 515.9 | |
| 0.00 | 2.16 | 0.00 | 1.20 | 20.68 | 54.83 | -24.37 | 57.19 | 0.4611 | 851.0 | 708.0 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 21.27 | 54.66 | -24.54 | 56.22 | 0.4676 | 586.0 | 479.4 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 20.85 | 54.41 | -24.79 | 57.25 | 0.4678 | 695.0 | 550.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 20.68 | 53.51 | -25.69 | 58.36 | 0.4783 | 717.0 | 489.6 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 20.47 | 53.26 | -25.94 | 58.95 | 0.4803 | 316.0 | 305.9 | |
| 0.00 | 2.34 | 0.00 | 1.32 | 20.81 | 53.12 | -26.08 | 58.42 | 0.4843 | 543.0 | 444.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
