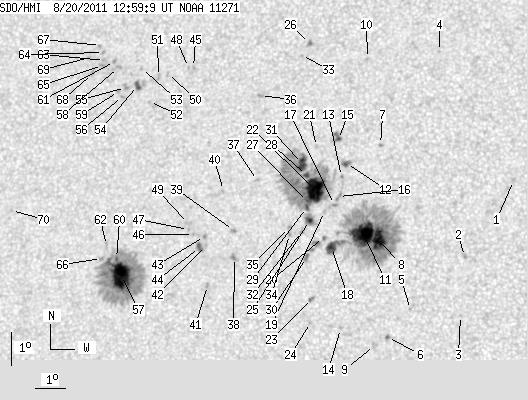

SDO HMI 2011-08-20 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.26 | 829.46 | 78.68 | 435.29 | 16.01 | 61.20 | -16.90 | 58.93 | 0.3271 | -226.1 | -111.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 0.96 | 17.50 | 68.97 | -9.13 | 39.09 | 0.2410 | -709.0 | -627.4 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 15.14 | 67.52 | -10.58 | 50.52 | 0.2307 | -914.0 | -678.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.33 | 67.47 | -10.62 | 57.38 | 0.2139 | -812.0 | -573.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 21.46 | 66.28 | -11.81 | 36.81 | 0.3193 | -681.0 | -502.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 13.48 | 65.88 | -12.22 | 60.18 | 0.2383 | -696.0 | -596.2 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 12.60 | 65.19 | -12.91 | 64.68 | 0.2423 | -995.0 | -850.3 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 18.52 | 64.57 | -13.52 | 47.20 | 0.3035 | -860.0 | -705.3 | |
| 16.91 | 279.44 | 8.71 | 144.08 | 15.59 | 64.72 | -13.37 | 55.17 | 0.2726 | -1449.0 | -448.8 | |
| 0.00 | 3.33 | 0.00 | 1.70 | 12.35 | 64.79 | -13.31 | 66.26 | 0.2468 | -614.0 | -534.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 21.18 | 63.90 | -14.19 | 42.35 | 0.3409 | -768.0 | -607.1 | |
| 34.73 | -8.00 | 17.92 | -8.00 | 15.73 | 64.23 | -13.87 | 55.65 | 0.2807 | -1129.4 | 999999 | |
| 1.98 | 4.77 | 1.03 | 2.48 | 17.90 | 63.51 | -14.59 | 50.84 | 0.3106 | 801.2 | 510.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.49 | 63.37 | -14.72 | 52.15 | 0.3083 | 560.0 | 485.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 12.84 | 63.67 | -14.43 | 66.05 | 0.2670 | -763.0 | -587.5 | |
| 1.53 | 5.31 | 0.80 | 2.78 | 18.63 | 63.18 | -14.92 | 49.56 | 0.3220 | -1039.5 | -789.4 | |
| 0.00 | 2.79 | 0.00 | 1.45 | 16.88 | 63.33 | -14.77 | 53.92 | 0.3032 | -668.0 | -618.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 16.63 | 63.22 | -14.88 | 54.81 | 0.3025 | -1023.0 | -876.1 | |
| 7.65 | -8.00 | 3.96 | -8.00 | 15.30 | 63.22 | -14.88 | 58.67 | 0.2912 | -959.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 16.40 | 62.91 | -15.19 | 55.95 | 0.3047 | -864.0 | -535.6 | |
| 0.81 | 10.26 | 0.42 | 5.32 | 15.60 | 62.94 | -15.16 | 58.22 | 0.2977 | -714.9 | -641.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.40 | 62.47 | -15.63 | 51.37 | 0.3286 | -759.0 | -616.5 | |
| 28.70 | 211.87 | 14.98 | 110.85 | 17.07 | 62.52 | -15.58 | 54.74 | 0.3157 | -1220.8 | -340.2 | |
| 0.00 | 3.15 | 0.00 | 1.63 | 13.72 | 62.68 | -15.42 | 64.39 | 0.2877 | 927.0 | 633.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.99 | 62.70 | -15.40 | 66.77 | 0.2829 | -720.0 | -563.9 | |
| 3.06 | 12.15 | 1.59 | 6.32 | 16.11 | 62.44 | -15.66 | 57.52 | 0.3088 | 438.4 | -7.8 | |
| 0.00 | 2.79 | 0.00 | 1.48 | 21.59 | 61.90 | -16.20 | 45.06 | 0.3680 | -945.0 | -781.6 | |
| 0.27 | -22.00 | 0.14 | -22.00 | 16.69 | 62.32 | -15.77 | 56.07 | 0.3152 | -1068.7 | 999999 | |
| 2.43 | -22.00 | 1.27 | -22.00 | 17.49 | 62.22 | -15.88 | 54.09 | 0.3235 | -811.7 | 999999 | |
| 1.98 | -22.00 | 1.03 | -22.00 | 16.51 | 62.31 | -15.79 | 56.61 | 0.3139 | -784.8 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.77 | 14.97 | 62.43 | -15.67 | 60.85 | 0.3001 | -987.0 | -732.2 | |
| 10.08 | -22.00 | 5.28 | -22.00 | 17.86 | 62.05 | -16.04 | 53.41 | 0.3290 | -901.4 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.17 | 15.76 | 62.20 | -15.89 | 58.86 | 0.3093 | -794.0 | -608.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 21.21 | 61.67 | -16.42 | 46.24 | 0.3665 | -638.0 | -543.5 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 15.66 | 61.82 | -16.28 | 59.71 | 0.3140 | -818.0 | -608.4 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 15.87 | 61.80 | -16.30 | 59.12 | 0.3159 | -887.0 | -755.5 | |
| 0.00 | 2.61 | 0.00 | 1.39 | 19.91 | 60.43 | -17.66 | 50.97 | 0.3688 | -1033.0 | -766.2 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 17.28 | 60.61 | -17.48 | 57.00 | 0.3435 | -41.0 | 94.6 | |
| 0.00 | 3.96 | 0.00 | 2.08 | 14.89 | 60.07 | -18.02 | 64.05 | 0.3340 | 950.0 | 734.9 | |
| 0.00 | 2.61 | 0.00 | 1.37 | 15.72 | 59.97 | -18.13 | 61.92 | 0.3410 | 909.0 | 758.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.93 | 59.51 | -18.58 | 59.30 | 0.3561 | 612.0 | 588.4 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 14.00 | 59.26 | -18.84 | 67.36 | 0.3410 | 805.0 | 702.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 15.23 | 59.11 | -18.98 | 64.18 | 0.3502 | 806.0 | 607.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 15.50 | 59.02 | -19.08 | 63.56 | 0.3532 | 977.0 | 820.3 | |
| 3.87 | 4.41 | 2.05 | 2.33 | 15.16 | 58.89 | -19.21 | 64.60 | 0.3531 | 927.9 | 877.8 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 20.70 | 58.04 | -20.05 | 52.50 | 0.4060 | 949.0 | 742.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 15.55 | 58.65 | -19.45 | 63.82 | 0.3590 | 789.0 | 592.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.69 | 58.47 | -19.63 | 63.63 | 0.3625 | 843.0 | 587.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 20.69 | 57.87 | -20.23 | 52.73 | 0.4081 | 675.0 | 544.1 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 15.88 | 58.45 | -19.65 | 63.18 | 0.3639 | 769.0 | 608.5 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 20.48 | 57.17 | -20.92 | 54.01 | 0.4152 | 666.0 | 529.2 | |
| 0.00 | 2.34 | 0.00 | 1.27 | 20.37 | 56.88 | -21.22 | 54.58 | 0.4181 | 688.0 | 611.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 19.58 | 56.68 | -21.42 | 56.46 | 0.4146 | 709.0 | 626.4 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 20.60 | 56.25 | -21.85 | 54.81 | 0.4280 | 730.0 | 539.1 | |
| 3.96 | 8.01 | 2.16 | 4.37 | 20.06 | 56.19 | -21.91 | 55.98 | 0.4246 | 953.8 | 680.5 | |
| 0.00 | 3.42 | 0.00 | 1.87 | 19.98 | 55.78 | -22.31 | 56.57 | 0.4293 | 910.0 | 729.9 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 19.70 | 55.72 | -22.37 | 57.22 | 0.4280 | 856.0 | 719.7 | |
| 31.49 | 191.18 | 16.90 | 102.57 | 14.19 | 56.37 | -21.73 | 69.25 | 0.3854 | 1251.1 | 439.4 | |
| 0.00 | 2.34 | 0.00 | 1.29 | 20.59 | 55.45 | -22.65 | 55.68 | 0.4383 | 958.0 | 830.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 19.85 | 55.56 | -22.54 | 57.08 | 0.4313 | 883.0 | 694.3 | |
| 0.81 | -57.00 | 0.44 | -57.00 | 14.71 | 56.15 | -21.95 | 68.15 | 0.3912 | 596.7 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.34 | 20.77 | 55.28 | -22.82 | 55.49 | 0.4419 | 849.0 | 725.0 | |
| 0.00 | 2.70 | 0.00 | 1.46 | 15.09 | 55.77 | -22.33 | 67.51 | 0.3987 | 570.0 | 416.6 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 20.79 | 54.92 | -23.18 | 55.82 | 0.4466 | 883.0 | 747.2 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 21.04 | 54.85 | -23.25 | 55.41 | 0.4494 | 764.0 | 600.8 | |
| 0.00 | 2.16 | 0.00 | 1.19 | 20.63 | 54.88 | -23.22 | 56.18 | 0.4460 | 879.0 | 757.6 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 14.68 | 55.64 | -22.45 | 68.57 | 0.3986 | 690.0 | 451.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 21.25 | 54.70 | -23.39 | 55.14 | 0.4528 | 622.0 | 504.3 | |
| 0.00 | 2.88 | 0.00 | 1.59 | 20.37 | 54.57 | -23.53 | 57.01 | 0.4481 | 681.0 | 571.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 20.86 | 54.38 | -23.72 | 56.22 | 0.4541 | 744.0 | 624.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 16.01 | 52.38 | -25.72 | 67.78 | 0.4525 | 783.0 | 620.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
