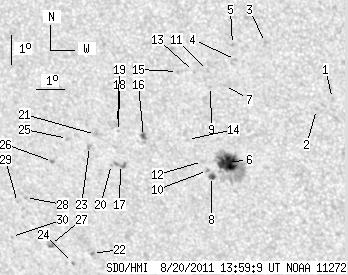

SDO HMI 2011-08-20 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.01 | 114.36 | 15.10 | 69.64 | -21.12 | 55.40 | -22.14 | 142.78 | 0.5818 | 359.0 | 125.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | -18.86 | 60.67 | -16.88 | 147.36 | 0.5115 | 748.0 | 615.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -19.25 | 60.09 | -17.46 | 146.92 | 0.5210 | 674.0 | 585.4 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -17.07 | 58.61 | -18.94 | 142.16 | 0.5077 | 887.0 | 600.2 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -17.68 | 57.53 | -20.02 | 141.39 | 0.5247 | 670.0 | 567.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -17.18 | 57.48 | -20.06 | 140.70 | 0.5195 | 861.0 | 733.6 | |
| 19.52 | 64.50 | 11.76 | 38.89 | -21.19 | 56.79 | -20.75 | 144.49 | 0.5709 | 1003.1 | 365.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.57 | 57.05 | -20.50 | 141.82 | 0.5391 | 631.0 | 510.1 | |
| 3.15 | 3.60 | 1.91 | 2.19 | -21.70 | 56.15 | -21.39 | 144.23 | 0.5819 | 646.0 | 354.6 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -18.63 | 56.56 | -20.99 | 141.24 | 0.5442 | 437.0 | 449.2 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -21.50 | 56.04 | -21.50 | 143.88 | 0.5806 | 626.0 | 445.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -18.09 | 56.53 | -21.02 | 140.54 | 0.5386 | 528.0 | 430.2 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -21.20 | 55.92 | -21.63 | 143.38 | 0.5783 | 478.0 | 267.5 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -18.15 | 56.04 | -21.51 | 139.97 | 0.5437 | 554.0 | 473.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -20.47 | 55.50 | -22.04 | 142.05 | 0.5738 | 644.0 | 508.5 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.17 | 55.48 | -22.06 | 139.29 | 0.5493 | 607.0 | 492.4 | |
| 2.34 | 4.68 | 1.43 | 2.86 | -20.44 | 53.96 | -23.58 | 140.15 | 0.5873 | 698.3 | 576.9 | |
| 0.00 | 5.13 | 0.00 | 3.19 | -21.45 | 52.97 | -24.58 | 140.17 | 0.6066 | -319.0 | -686.6 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -20.32 | 53.10 | -24.45 | 139.00 | 0.5939 | -708.0 | -502.4 | |
| 0.00 | 1.80 | 0.00 | 1.10 | -20.04 | 53.11 | -24.44 | 138.70 | 0.5910 | -510.0 | -550.8 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -21.47 | 52.64 | -24.90 | 139.82 | 0.6096 | -579.0 | -605.7 | |
| 0.00 | 1.89 | 0.00 | 1.17 | -20.46 | 52.25 | -25.30 | 138.23 | 0.6032 | -711.0 | -530.1 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -24.65 | 51.29 | -26.25 | 141.82 | 0.6527 | 773.0 | 659.2 | |
| 0.00 | 2.70 | 0.00 | 1.68 | -20.89 | 51.96 | -25.59 | 138.40 | 0.6101 | -794.0 | -651.9 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -25.01 | 50.46 | -27.09 | 141.36 | 0.6631 | -393.0 | -435.5 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -20.66 | 51.20 | -26.34 | 137.32 | 0.6148 | -598.0 | -514.4 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -21.48 | 50.50 | -27.05 | 137.55 | 0.6291 | -775.0 | -676.0 | |
| 0.00 | 4.05 | 0.00 | 2.67 | -24.42 | 49.77 | -27.77 | 140.05 | 0.6631 | -706.0 | -654.7 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -22.80 | 49.21 | -28.33 | 137.75 | 0.6530 | -810.0 | -663.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -23.00 | 48.87 | -28.68 | 137.63 | 0.6578 | -613.0 | -554.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -24.22 | 48.34 | -29.20 | 138.47 | 0.6734 | -516.0 | -423.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
