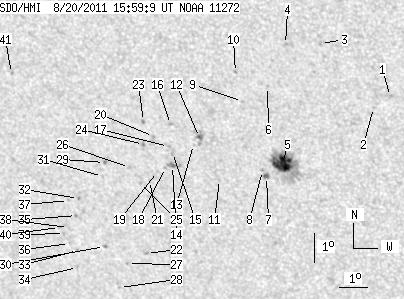

SDO HMI 2011-08-20 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.24 | 129.36 | 16.96 | 78.61 | -21.32 | 54.78 | -21.65 | 143.66 | 0.5799 | 104.0 | 64.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.13 | -18.81 | 60.71 | -15.73 | 149.11 | 0.5018 | 843.0 | 641.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -19.20 | 60.10 | -16.34 | 148.58 | 0.5115 | 551.0 | 446.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -17.12 | 58.54 | -17.90 | 143.77 | 0.4989 | 705.0 | 584.9 | |
| 0.00 | 2.07 | 0.00 | 1.19 | -17.20 | 57.36 | -19.08 | 142.12 | 0.5105 | 845.0 | 638.5 | |
| 22.39 | 64.30 | 13.40 | 38.47 | -21.24 | 56.76 | -19.68 | 145.95 | 0.5627 | 1001.4 | 360.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.63 | 56.59 | -19.85 | 142.78 | 0.5341 | 625.0 | 429.0 | |
| 2.43 | 3.24 | 1.47 | 1.95 | -21.71 | 56.14 | -20.30 | 145.64 | 0.5732 | 671.2 | 501.1 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -21.51 | 56.03 | -20.41 | 145.28 | 0.5718 | 707.0 | 455.5 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -19.18 | 55.66 | -20.77 | 142.18 | 0.5485 | 537.0 | 429.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.21 | 55.55 | -20.89 | 140.87 | 0.5387 | 635.0 | 522.7 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -21.90 | 54.46 | -21.98 | 143.72 | 0.5889 | 426.0 | 354.9 | |
| 1.80 | 9.80 | 1.09 | 5.94 | -20.48 | 53.98 | -22.45 | 141.56 | 0.5777 | 753.4 | 478.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -20.73 | 53.73 | -22.70 | 141.54 | 0.5826 | 371.0 | 314.2 | |
| 1.62 | 5.67 | 1.00 | 3.49 | -21.49 | 52.86 | -23.57 | 141.37 | 0.5982 | -744.9 | -702.2 | |
| 0.00 | 2.34 | 0.00 | 1.44 | -21.04 | 52.94 | -23.50 | 140.95 | 0.5929 | -737.0 | -566.9 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -20.08 | 53.03 | -23.41 | 139.94 | 0.5821 | -712.0 | -584.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -20.84 | 52.83 | -23.61 | 140.59 | 0.5917 | -924.0 | -746.2 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -21.58 | 52.60 | -23.84 | 141.15 | 0.6014 | -606.0 | -565.4 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -21.73 | 52.29 | -24.15 | 140.97 | 0.6057 | -591.0 | -372.8 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -20.53 | 52.35 | -24.09 | 139.67 | 0.5928 | -778.0 | -559.0 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -22.06 | 51.94 | -24.50 | 140.94 | 0.6121 | -597.0 | -489.5 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -24.65 | 51.31 | -25.13 | 143.00 | 0.6437 | 762.0 | 615.7 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -20.03 | 52.08 | -24.36 | 138.78 | 0.5902 | -836.0 | -698.6 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -20.82 | 51.95 | -24.49 | 139.55 | 0.5994 | -773.0 | -630.8 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -22.15 | 51.60 | -24.84 | 140.65 | 0.6160 | -587.0 | -494.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -21.64 | 51.30 | -25.14 | 139.76 | 0.6136 | -503.0 | -463.4 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -25.05 | 50.52 | -25.92 | 142.58 | 0.6540 | -571.0 | -507.0 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -25.93 | 50.01 | -26.43 | 142.95 | 0.6667 | -639.0 | -518.5 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -21.52 | 50.41 | -26.02 | 138.66 | 0.6202 | -797.0 | -744.0 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -24.48 | 49.79 | -26.65 | 141.25 | 0.6544 | -803.0 | -690.4 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -22.01 | 50.24 | -26.19 | 139.04 | 0.6266 | -469.0 | -347.5 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -22.84 | 49.19 | -27.25 | 138.87 | 0.6437 | -753.0 | -640.6 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -24.69 | 48.73 | -27.71 | 140.40 | 0.6652 | -710.0 | -529.3 | |
| 0.00 | 1.44 | 0.00 | 0.96 | -25.30 | 48.57 | -27.87 | 140.89 | 0.6721 | -599.0 | -396.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -23.44 | 48.98 | -27.46 | 139.32 | 0.6513 | -553.0 | -528.1 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -24.46 | 48.48 | -27.96 | 139.91 | 0.6650 | -603.0 | -434.6 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -22.93 | 48.80 | -27.64 | 138.57 | 0.6481 | -616.0 | -504.6 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -23.89 | 48.58 | -27.86 | 139.40 | 0.6589 | -636.0 | -477.9 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -24.11 | 48.37 | -28.06 | 139.44 | 0.6627 | -575.0 | -482.0 | |
| 0.00 | 1.53 | 0.00 | 1.01 | -23.91 | 48.23 | -28.20 | 139.09 | 0.6620 | -628.0 | -518.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -18.67 | 47.57 | -28.87 | 132.35 | 0.6211 | 720.0 | 582.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
