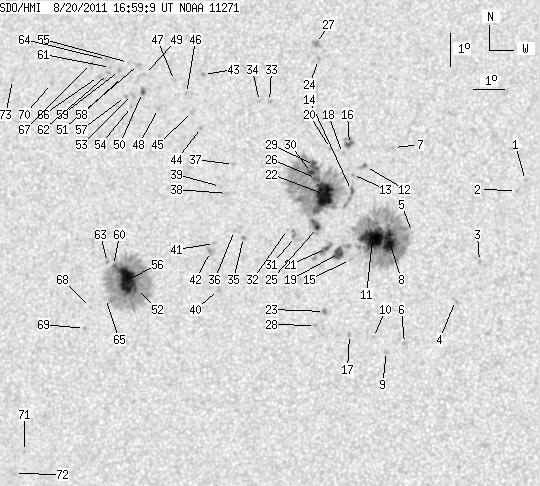

SDO HMI 2011-08-20 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.39 | 825.97 | 71.61 | 429.16 | 16.11 | 61.17 | -14.72 | 55.17 | 0.2983 | -230.5 | -111.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.63 | 69.01 | -6.88 | 31.30 | 0.2207 | -795.0 | -599.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.32 | 68.73 | -7.16 | 33.09 | 0.2188 | -756.0 | -617.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.12 | 67.64 | -8.25 | 43.71 | 0.2013 | -954.0 | -702.0 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 13.92 | 66.92 | -8.96 | 50.58 | 0.1966 | -775.0 | -583.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.97 | 65.46 | -10.42 | 47.35 | 0.2376 | -219.0 | -176.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.57 | 65.37 | -10.52 | 60.33 | 0.2060 | -1034.0 | -735.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.58 | 64.69 | -11.19 | 41.88 | 0.2769 | -881.0 | -740.9 | |
| 18.07 | 238.64 | 9.23 | 122.02 | 15.68 | 64.74 | -11.15 | 50.12 | 0.2436 | -1491.6 | -464.2 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 12.32 | 64.81 | -11.08 | 62.60 | 0.2124 | -791.0 | -619.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.73 | 64.38 | -11.51 | 61.72 | 0.2220 | -850.0 | -670.4 | |
| 31.56 | -8.00 | 16.15 | -8.00 | 15.76 | 64.19 | -11.70 | 51.17 | 0.2516 | -1208.7 | 999999 | |
| 0.27 | 3.60 | 0.14 | 1.86 | 17.97 | 63.82 | -12.07 | 45.53 | 0.2799 | 855.7 | 769.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.71 | 63.41 | -12.47 | 47.13 | 0.2819 | 547.0 | 450.8 | |
| 2.16 | 8.90 | 1.11 | 4.59 | 17.22 | 63.42 | -12.47 | 48.50 | 0.2766 | -812.8 | -669.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.10 | 63.52 | -12.37 | 54.78 | 0.2542 | -700.0 | -547.6 | |
| 3.51 | 8.45 | 1.82 | 4.38 | 18.64 | 63.25 | -12.64 | 45.07 | 0.2941 | -973.3 | -674.6 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 12.81 | 63.61 | -12.27 | 62.86 | 0.2340 | -925.0 | -698.4 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 18.35 | 63.04 | -12.84 | 46.24 | 0.2934 | -782.0 | -630.8 | |
| 9.26 | 16.99 | 4.75 | 8.72 | 15.27 | 63.12 | -12.76 | 55.01 | 0.2613 | -940.1 | -713.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 18.50 | 62.64 | -13.25 | 46.72 | 0.2999 | -751.0 | -555.9 | |
| 1.98 | 12.05 | 1.02 | 6.20 | 15.42 | 62.73 | -13.16 | 55.33 | 0.2680 | -801.0 | -702.5 | |
| 27.69 | 243.76 | 14.31 | 126.25 | 17.07 | 62.55 | -13.34 | 50.72 | 0.2862 | -1290.9 | -355.5 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 13.49 | 62.78 | -13.11 | 61.76 | 0.2514 | 803.0 | 507.9 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 21.25 | 62.00 | -13.89 | 41.62 | 0.3383 | -939.0 | -596.1 | |
| 2.07 | -22.00 | 1.07 | -22.00 | 16.05 | 62.39 | -13.49 | 54.00 | 0.2784 | 521.3 | 999999 | |
| 3.06 | -22.00 | 1.58 | -22.00 | 17.56 | 62.25 | -13.64 | 49.96 | 0.2949 | -911.2 | 999999 | |
| 0.00 | 4.95 | 0.00 | 2.61 | 21.75 | 61.88 | -14.01 | 40.81 | 0.3454 | -853.0 | -723.8 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 13.05 | 62.51 | -13.37 | 63.76 | 0.2523 | -817.0 | -643.5 | |
| 5.57 | -22.00 | 2.89 | -22.00 | 17.96 | 62.15 | -13.73 | 49.09 | 0.3001 | -865.2 | 999999 | |
| 2.88 | -22.00 | 1.49 | -22.00 | 17.74 | 62.07 | -13.81 | 49.82 | 0.2989 | -1004.2 | 999999 | |
| 0.00 | 5.31 | 0.00 | 2.74 | 15.76 | 61.70 | -14.19 | 56.16 | 0.2852 | -514.0 | -671.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.96 | 61.42 | -14.46 | 56.02 | 0.2908 | -673.0 | -507.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.90 | 60.49 | -15.40 | 47.40 | 0.3406 | -1004.0 | -792.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 19.89 | 60.16 | -15.73 | 47.99 | 0.3446 | -781.0 | -575.6 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 15.67 | 60.01 | -15.88 | 59.10 | 0.3083 | 956.0 | 812.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.88 | 59.70 | -16.19 | 58.97 | 0.3143 | 814.0 | 580.8 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 17.91 | 59.48 | -16.40 | 53.86 | 0.3342 | 802.0 | 625.1 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 17.01 | 59.37 | -16.52 | 56.36 | 0.3280 | 875.0 | 645.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.22 | 59.12 | -16.77 | 56.18 | 0.3331 | 740.0 | 570.4 | |
| 0.00 | 3.42 | 0.00 | 1.78 | 14.06 | 59.32 | -16.57 | 64.81 | 0.3070 | 790.0 | 641.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.46 | 59.07 | -16.81 | 61.01 | 0.3201 | 915.0 | 699.0 | |
| 0.00 | 4.95 | 0.00 | 2.58 | 15.21 | 58.96 | -16.92 | 61.86 | 0.3199 | 1145.0 | 880.7 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 20.66 | 58.18 | -17.71 | 49.40 | 0.3764 | 922.0 | 756.4 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 19.02 | 58.30 | -17.59 | 52.92 | 0.3596 | 936.0 | 747.4 | |
| 0.00 | 2.70 | 0.00 | 1.44 | 19.50 | 57.94 | -17.94 | 52.32 | 0.3685 | 840.0 | 603.5 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 20.05 | 57.67 | -18.21 | 51.46 | 0.3769 | 734.0 | 630.6 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 20.44 | 57.22 | -18.67 | 51.25 | 0.3862 | 748.0 | 526.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 19.55 | 56.78 | -19.10 | 53.78 | 0.3839 | 1001.0 | 772.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.59 | 56.17 | -19.72 | 52.32 | 0.4007 | 758.0 | 645.5 | |
| 2.07 | 3.33 | 1.11 | 1.79 | 20.03 | 56.17 | -19.71 | 53.51 | 0.3958 | 1021.3 | 922.4 | |
| 0.00 | 2.97 | 0.00 | 1.61 | 20.89 | 55.92 | -19.97 | 52.00 | 0.4065 | 781.0 | 557.5 | |
| 0.99 | 189.36 | 0.52 | 100.19 | 13.99 | 56.63 | -19.26 | 67.79 | 0.3472 | 1506.1 | 485.3 | |
| 0.00 | 2.52 | 0.00 | 1.36 | 19.95 | 55.84 | -20.05 | 54.09 | 0.3995 | 929.0 | 760.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 19.58 | 55.86 | -20.03 | 54.88 | 0.3962 | 827.0 | 661.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 20.94 | 55.57 | -20.32 | 52.34 | 0.4114 | 580.0 | 503.4 | |
| 26.35 | -52.00 | 13.94 | -52.00 | 14.22 | 56.28 | -19.61 | 67.48 | 0.3537 | 1344.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 19.88 | 55.61 | -20.28 | 54.52 | 0.4019 | 862.0 | 673.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 20.50 | 55.42 | -20.46 | 53.44 | 0.4094 | 830.0 | 667.1 | |
| 0.00 | 3.06 | 0.00 | 1.66 | 20.68 | 55.29 | -20.59 | 53.22 | 0.4126 | 866.0 | 663.2 | |
| 0.90 | -52.00 | 0.48 | -52.00 | 14.66 | 55.80 | -20.08 | 66.74 | 0.3632 | 691.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 20.76 | 54.97 | -20.92 | 53.43 | 0.4174 | 861.0 | 722.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 20.57 | 54.93 | -20.96 | 53.87 | 0.4164 | 961.0 | 811.4 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 14.75 | 55.59 | -20.29 | 66.71 | 0.3667 | 639.0 | 535.4 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 21.01 | 54.79 | -21.09 | 53.14 | 0.4216 | 809.0 | 669.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 13.65 | 55.63 | -20.26 | 69.57 | 0.3606 | -6.0 | 7.7 | |
| 0.00 | 2.79 | 0.00 | 1.52 | 20.46 | 54.59 | -21.29 | 54.48 | 0.4197 | 727.0 | 635.3 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 20.86 | 54.29 | -21.59 | 54.01 | 0.4268 | 758.0 | 593.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 13.35 | 55.16 | -20.73 | 70.70 | 0.3665 | 729.0 | 512.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.70 | 55.01 | -20.87 | 72.52 | 0.3660 | -735.0 | -532.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 20.18 | 53.00 | -22.89 | 56.77 | 0.4383 | 734.0 | 583.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 8.89 | 53.31 | -22.58 | 83.33 | 0.3835 | 719.0 | 483.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 8.20 | 53.02 | -22.87 | 85.13 | 0.3877 | 751.0 | 625.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 20.24 | 51.61 | -24.28 | 57.97 | 0.4569 | 685.0 | 454.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
