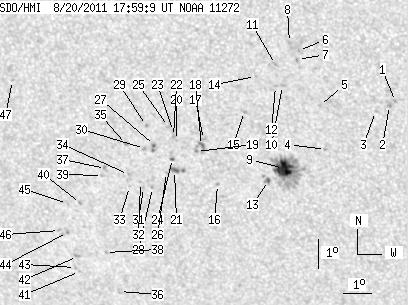

SDO HMI 2011-08-20 17:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.43 | 144.27 | 16.41 | 86.73 | -21.11 | 54.93 | -20.40 | 145.05 | 0.5673 | 55.9 | 101.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 17:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | -18.83 | 60.76 | -14.57 | 151.03 | 0.4934 | 830.0 | 719.5 | |
| 0.00 | 2.70 | 0.00 | 1.54 | -18.97 | 60.55 | -14.78 | 150.82 | 0.4968 | 751.0 | 617.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -19.19 | 60.07 | -15.26 | 150.26 | 0.5033 | 599.0 | 444.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -20.54 | 58.24 | -17.09 | 148.86 | 0.5341 | -629.0 | -515.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -19.05 | 58.21 | -17.12 | 147.21 | 0.5160 | 560.0 | 388.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.23 | 57.69 | -17.64 | 144.31 | 0.4981 | 838.0 | 714.7 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -17.54 | 57.63 | -17.70 | 144.58 | 0.5023 | 852.0 | 652.8 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -16.98 | 57.42 | -17.91 | 143.58 | 0.4975 | 727.0 | 648.5 | |
| 17.71 | 67.16 | 10.53 | 39.93 | -21.25 | 56.72 | -18.61 | 147.43 | 0.5545 | 1084.4 | 385.0 | |
| 0.00 | 2.07 | 0.00 | 1.20 | -18.43 | 57.03 | -18.30 | 144.75 | 0.5182 | 681.0 | 527.1 | |
| 0.00 | 2.34 | 0.00 | 1.35 | -17.73 | 56.87 | -18.46 | 143.69 | 0.5113 | 818.0 | 580.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -18.47 | 56.79 | -18.54 | 144.45 | 0.5208 | 633.0 | 552.7 | |
| 1.71 | 4.32 | 1.02 | 2.59 | -21.69 | 56.15 | -19.18 | 147.09 | 0.5642 | 634.9 | 547.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -18.16 | 56.15 | -19.18 | 143.16 | 0.5227 | 617.0 | 518.8 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -19.36 | 55.63 | -19.70 | 143.85 | 0.5412 | 627.0 | 526.7 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -21.91 | 54.34 | -20.99 | 144.96 | 0.5811 | 641.0 | 476.1 | |
| 0.00 | 2.07 | 0.00 | 1.24 | -20.38 | 54.08 | -21.25 | 142.96 | 0.5661 | 714.0 | 617.4 | |
| 2.52 | 6.47 | 1.51 | 3.90 | -20.59 | 53.98 | -21.35 | 143.06 | 0.5693 | 630.8 | 413.1 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -20.80 | 53.77 | -21.56 | 143.04 | 0.5734 | 575.0 | 441.2 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -20.46 | 53.13 | -22.20 | 141.85 | 0.5753 | -662.0 | -503.6 | |
| 3.78 | 6.02 | 2.31 | 3.68 | -21.50 | 52.89 | -22.44 | 142.72 | 0.5886 | -770.0 | -671.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -20.33 | 53.04 | -22.29 | 141.59 | 0.5746 | -614.0 | -422.9 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -20.15 | 53.07 | -22.26 | 141.42 | 0.5725 | -640.0 | -507.8 | |
| 0.54 | 1.35 | 0.33 | 0.82 | -21.08 | 52.89 | -22.44 | 142.26 | 0.5841 | -840.7 | -738.1 | |
| 0.00 | 1.80 | 0.00 | 1.08 | -19.99 | 52.92 | -22.41 | 141.05 | 0.5721 | -769.0 | -649.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -21.58 | 52.60 | -22.73 | 142.46 | 0.5920 | -634.0 | -532.0 | |
| 1.17 | 2.88 | 0.71 | 1.76 | -20.67 | 52.32 | -23.01 | 141.11 | 0.5847 | -842.6 | -804.4 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -22.13 | 52.01 | -23.33 | 142.36 | 0.6028 | -699.0 | -627.5 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -20.00 | 52.15 | -23.18 | 140.12 | 0.5791 | -908.0 | -769.2 | |
| 0.00 | 2.07 | 0.00 | 1.27 | -20.79 | 51.95 | -23.38 | 140.80 | 0.5892 | -915.0 | -636.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -22.14 | 51.68 | -23.65 | 142.00 | 0.6058 | -537.0 | -423.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -21.97 | 51.60 | -23.73 | 141.73 | 0.6047 | -737.0 | -507.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -22.13 | 51.18 | -24.15 | 141.42 | 0.6100 | -555.0 | -437.8 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -21.72 | 51.22 | -24.11 | 141.00 | 0.6053 | -796.0 | -607.9 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -20.68 | 51.33 | -24.00 | 139.96 | 0.5937 | -645.0 | -464.2 | |
| 0.00 | 1.71 | 0.00 | 1.12 | -25.89 | 50.04 | -25.29 | 144.09 | 0.6576 | -633.0 | -603.5 | |
| 0.00 | 2.25 | 0.00 | 1.40 | -21.55 | 50.42 | -24.91 | 139.92 | 0.6106 | -823.0 | -717.6 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -24.52 | 49.83 | -25.50 | 142.48 | 0.6454 | -805.0 | -642.5 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -21.80 | 50.27 | -25.06 | 140.03 | 0.6145 | -404.0 | -414.6 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -22.83 | 49.27 | -26.06 | 140.09 | 0.6334 | -769.0 | -638.9 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -25.26 | 48.69 | -26.64 | 142.06 | 0.6619 | -619.0 | -439.6 | |
| 0.00 | 2.25 | 0.00 | 1.47 | -24.72 | 48.74 | -26.59 | 141.56 | 0.6563 | -892.0 | -646.6 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -25.12 | 48.57 | -26.76 | 141.80 | 0.6615 | -595.0 | -540.9 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -23.88 | 48.56 | -26.77 | 140.49 | 0.6497 | -777.0 | -610.2 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -22.86 | 48.78 | -26.55 | 139.61 | 0.6379 | -690.0 | -551.8 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -23.83 | 48.27 | -27.06 | 140.14 | 0.6516 | -727.0 | -533.4 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -18.73 | 47.58 | -27.75 | 133.54 | 0.6105 | 753.0 | 563.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
