SDO HMI 2011-08-20 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.27 | 158.92 | 15.07 | 95.14 | -21.12 | 55.01 | -19.77 | 145.88 | 0.5625 | 93.2 | 100.7 | |
|
previous
or next observation for the same group /

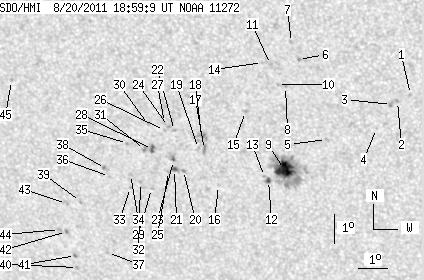

back to the solar disc SDO HMI 2011-08-20 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.56 | -18.59 | 61.22 | -13.55 | 152.50 | 0.4830 | 663.0 | 526.3 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -18.84 | 60.78 | -14.00 | 151.99 | 0.4895 | 900.0 | 756.9 | |
| 0.00 | 2.61 | 0.00 | 1.48 | -18.95 | 60.57 | -14.21 | 151.75 | 0.4924 | 819.0 | 716.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -19.78 | 59.99 | -14.78 | 151.63 | 0.5074 | 644.0 | 499.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -20.21 | 58.27 | -16.51 | 149.39 | 0.5256 | -759.0 | -585.4 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.54 | 57.61 | -17.17 | 145.42 | 0.4978 | 897.0 | 758.7 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -16.99 | 57.43 | -17.34 | 144.47 | 0.4925 | 810.0 | 687.9 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -18.47 | 57.08 | -17.70 | 145.69 | 0.5135 | 702.0 | 533.2 | |
| 17.17 | 80.46 | 10.17 | 47.67 | -21.30 | 56.72 | -18.06 | 148.23 | 0.5508 | 1106.0 | 394.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -18.41 | 56.82 | -17.96 | 145.24 | 0.5151 | 665.0 | 580.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.75 | 56.66 | -18.12 | 144.21 | 0.5085 | 774.0 | 576.1 | |
| 2.34 | 3.06 | 1.40 | 1.83 | -21.70 | 56.11 | -18.66 | 147.81 | 0.5603 | 681.5 | 524.4 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -21.57 | 55.99 | -18.78 | 147.51 | 0.5596 | 682.0 | 511.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -17.69 | 56.39 | -18.38 | 143.75 | 0.5102 | 559.0 | 506.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -19.37 | 55.63 | -19.15 | 144.62 | 0.5366 | 753.0 | 634.4 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -21.95 | 54.34 | -20.43 | 145.72 | 0.5771 | 687.0 | 471.8 | |
| 0.00 | 3.60 | 0.00 | 2.16 | -20.73 | 54.04 | -20.74 | 144.00 | 0.5657 | 824.0 | 644.2 | |
| 0.00 | 6.38 | 0.00 | 3.81 | -20.28 | 54.00 | -20.78 | 143.46 | 0.5611 | 417.0 | 262.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -20.70 | 53.83 | -20.95 | 143.71 | 0.5672 | 511.0 | 402.0 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -21.48 | 53.19 | -21.59 | 143.76 | 0.5813 | -770.0 | -661.3 | |
| 2.16 | 2.88 | 1.31 | 1.75 | -21.46 | 52.88 | -21.90 | 143.35 | 0.5837 | -802.6 | -736.6 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -20.12 | 53.08 | -21.70 | 142.10 | 0.5672 | -751.0 | -559.7 | |
| 0.90 | 4.59 | 0.55 | 2.78 | -21.16 | 52.89 | -21.89 | 143.03 | 0.5802 | -750.8 | -644.8 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -20.00 | 52.89 | -21.89 | 141.71 | 0.5675 | -789.0 | -666.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -21.54 | 52.65 | -22.12 | 143.16 | 0.5865 | -620.0 | -604.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -20.14 | 52.73 | -22.05 | 141.68 | 0.5705 | -596.0 | -467.4 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -19.87 | 52.77 | -22.01 | 141.41 | 0.5672 | -750.0 | -588.9 | |
| 2.70 | 8.36 | 1.64 | 5.09 | -20.81 | 52.21 | -22.57 | 141.80 | 0.5824 | -870.2 | -640.7 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -22.17 | 51.95 | -22.83 | 142.99 | 0.5991 | -604.0 | -570.6 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -19.96 | 52.20 | -22.58 | 140.81 | 0.5733 | -820.0 | -683.3 | |
| 0.00 | 1.98 | 0.00 | 1.21 | -20.83 | 51.92 | -22.85 | 141.48 | 0.5850 | -895.0 | -679.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -21.98 | 51.59 | -23.19 | 142.36 | 0.6001 | -752.0 | -615.0 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -22.17 | 51.20 | -23.58 | 142.11 | 0.6055 | -544.0 | -495.0 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -21.72 | 51.28 | -23.50 | 141.71 | 0.6001 | -769.0 | -642.6 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -20.65 | 51.35 | -23.43 | 140.59 | 0.5882 | -713.0 | -576.3 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -21.83 | 50.51 | -24.27 | 140.95 | 0.6079 | -545.0 | -502.8 | |
| 0.00 | 1.35 | 0.00 | 0.87 | -24.51 | 49.91 | -24.87 | 143.15 | 0.6404 | -549.0 | -532.5 | |
| 0.00 | 2.43 | 0.00 | 1.51 | -21.55 | 50.41 | -24.36 | 140.54 | 0.6059 | -894.0 | -725.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -22.76 | 49.28 | -25.50 | 140.62 | 0.6279 | -517.0 | -499.1 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -25.11 | 48.66 | -26.12 | 142.45 | 0.6564 | -683.0 | -603.0 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -24.69 | 48.68 | -26.09 | 142.04 | 0.6520 | -712.0 | -676.7 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -23.85 | 48.54 | -26.24 | 141.01 | 0.6450 | -790.0 | -653.2 | |
| 0.00 | 2.16 | 0.00 | 1.38 | -22.86 | 48.75 | -26.03 | 140.16 | 0.6335 | -661.0 | -423.1 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -23.79 | 48.29 | -26.49 | 140.69 | 0.6465 | -696.0 | -519.4 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -18.73 | 47.54 | -27.24 | 134.06 | 0.6054 | 691.0 | 485.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
