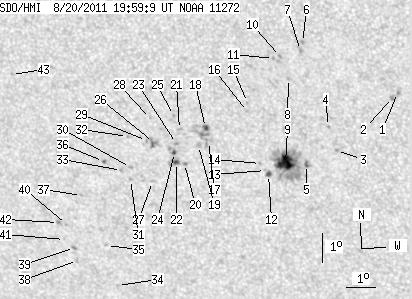

SDO HMI 2011-08-20 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.09 | 165.29 | 14.90 | 98.67 | -21.10 | 54.92 | -19.31 | 146.46 | 0.5586 | 76.2 | 82.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-20 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.79 | 60.72 | -13.50 | 152.79 | 0.4853 | 856.0 | 757.9 | |
| 0.00 | 2.61 | 0.00 | 1.48 | -18.96 | 60.54 | -13.68 | 152.65 | 0.4889 | 924.0 | 731.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -20.83 | 58.50 | -15.73 | 151.19 | 0.5278 | -671.0 | -536.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -20.01 | 58.31 | -15.91 | 150.10 | 0.5187 | -678.0 | -464.4 | |
| 0.90 | 74.08 | 0.53 | 43.77 | -21.34 | 57.42 | -16.80 | 150.09 | 0.5421 | 879.6 | 413.7 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -17.21 | 57.72 | -16.50 | 146.08 | 0.4881 | 939.0 | 801.6 | |
| 0.00 | 2.88 | 0.00 | 1.64 | -17.48 | 57.63 | -16.59 | 146.25 | 0.4923 | 870.0 | 677.8 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -18.44 | 57.14 | -17.09 | 146.58 | 0.5082 | 712.0 | 602.9 | |
| 15.46 | -5.00 | 9.14 | -5.00 | -21.30 | 56.71 | -17.51 | 149.02 | 0.5468 | 1145.2 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -17.71 | 56.94 | -17.28 | 145.44 | 0.5009 | 796.0 | 640.2 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -17.78 | 56.70 | -17.52 | 145.16 | 0.5039 | 713.0 | 590.9 | |
| 2.52 | 2.88 | 1.50 | 1.71 | -21.74 | 56.07 | -18.15 | 148.56 | 0.5569 | 631.1 | 585.8 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -21.61 | 55.99 | -18.24 | 148.31 | 0.5560 | 630.0 | 502.2 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -21.37 | 55.85 | -18.38 | 147.87 | 0.5542 | 532.0 | 481.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -19.30 | 55.66 | -18.56 | 145.38 | 0.5309 | 674.0 | 596.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -19.61 | 55.62 | -18.60 | 145.67 | 0.5349 | 585.0 | 473.9 | |
| 0.00 | 4.58 | 0.00 | 2.74 | -20.69 | 54.15 | -20.08 | 144.84 | 0.5598 | 418.0 | 472.6 | |
| 2.34 | 14.65 | 1.39 | 8.73 | -20.21 | 54.11 | -20.12 | 144.26 | 0.5547 | 707.6 | 114.2 | |
| 0.00 | 2.52 | 0.00 | 1.51 | -20.84 | 53.78 | -20.45 | 144.52 | 0.5646 | 456.0 | 375.9 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -21.49 | 53.20 | -21.03 | 144.47 | 0.5767 | -690.0 | -576.0 | |
| 0.00 | 1.89 | 0.00 | 1.13 | -20.32 | 53.19 | -21.03 | 143.18 | 0.5637 | -380.0 | -313.1 | |
| 1.98 | 13.13 | 1.20 | 7.95 | -21.46 | 52.92 | -21.30 | 144.10 | 0.5788 | -746.9 | -549.0 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -20.81 | 53.02 | -21.20 | 143.50 | 0.5706 | -942.0 | -829.6 | |
| 1.53 | -22.00 | 0.92 | -22.00 | -21.12 | 52.90 | -21.32 | 143.70 | 0.5751 | -890.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -19.85 | 53.05 | -21.17 | 142.47 | 0.5597 | -773.0 | -673.4 | |
| 0.00 | 6.29 | 0.00 | 3.81 | -20.81 | 52.22 | -22.01 | 142.50 | 0.5775 | -978.0 | -772.4 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -22.17 | 51.96 | -22.26 | 143.67 | 0.5944 | -818.0 | -600.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -19.99 | 52.23 | -21.99 | 141.59 | 0.5685 | -818.0 | -683.6 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -20.76 | 51.98 | -22.25 | 142.14 | 0.5790 | -717.0 | -605.1 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -21.72 | 51.26 | -22.97 | 142.34 | 0.5955 | -815.0 | -666.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -22.14 | 51.19 | -23.04 | 142.71 | 0.6006 | -548.0 | -434.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -20.65 | 51.33 | -22.90 | 141.23 | 0.5836 | -772.0 | -591.7 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -21.84 | 50.92 | -23.31 | 142.07 | 0.5997 | -683.0 | -577.9 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -25.93 | 49.97 | -24.26 | 145.24 | 0.6502 | -609.0 | -444.3 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -24.51 | 49.87 | -24.36 | 143.71 | 0.6363 | -822.0 | -538.1 | |
| 0.36 | 1.17 | 0.22 | 0.72 | -21.56 | 50.32 | -23.90 | 141.08 | 0.6019 | -868.5 | -778.8 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -22.79 | 49.30 | -24.92 | 141.28 | 0.6233 | -739.0 | -596.8 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -25.11 | 48.67 | -25.56 | 143.04 | 0.6519 | -723.0 | -621.3 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -24.65 | 48.66 | -25.57 | 142.56 | 0.6474 | -816.0 | -699.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -23.84 | 48.54 | -25.69 | 141.59 | 0.6403 | -673.0 | -609.1 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -24.38 | 48.35 | -25.88 | 141.95 | 0.6473 | -533.0 | -366.2 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -23.79 | 48.25 | -25.97 | 141.23 | 0.6422 | -708.0 | -587.8 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -18.76 | 47.52 | -26.70 | 134.66 | 0.6004 | 669.0 | 543.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
