SDO HMI 2011-08-20 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143.87 | 813.56 | 73.65 | 417.91 | 16.08 | 61.23 | -11.89 | 49.52 | 0.2605 | -260.1 | -126.8 | |
|
previous
or next observation for the same group /

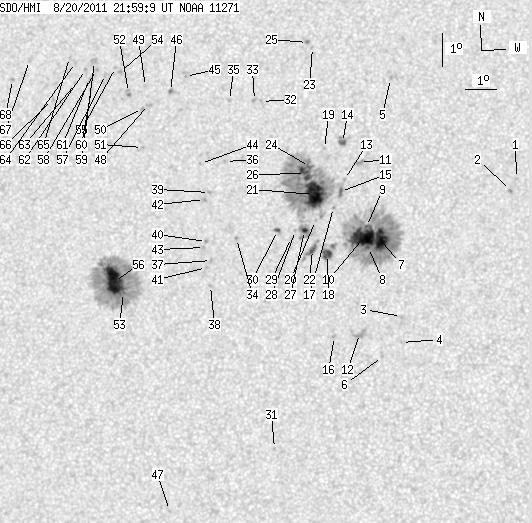

back to the solar disc SDO HMI 2011-08-20 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.66 | 68.99 | -4.13 | 20.12 | 0.2003 | -702.0 | -502.8 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 17.28 | 68.81 | -4.31 | 21.64 | 0.1955 | -1055.0 | -852.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 13.38 | 65.47 | -7.65 | 48.58 | 0.1734 | -711.0 | -484.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 12.59 | 65.50 | -7.62 | 52.19 | 0.1646 | -856.0 | -703.9 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 20.71 | 64.80 | -8.31 | 29.39 | 0.2768 | -690.0 | -514.2 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 12.15 | 64.91 | -8.20 | 56.30 | 0.1684 | -679.0 | -586.9 | |
| 16.90 | 249.76 | 8.56 | 126.64 | 15.72 | 64.72 | -8.40 | 42.21 | 0.2101 | -1515.6 | -463.5 | |
| 1.26 | -7.00 | 0.64 | -7.00 | 15.47 | 64.35 | -8.77 | 44.27 | 0.2114 | -1130.0 | 999999 | |
| 1.35 | -7.00 | 0.68 | -7.00 | 16.12 | 64.26 | -8.86 | 42.44 | 0.2203 | -741.4 | 999999 | |
| 28.41 | -7.00 | 14.42 | -7.00 | 15.78 | 64.18 | -8.94 | 43.79 | 0.2171 | -1293.4 | 999999 | |
| 0.00 | 3.69 | 0.00 | 1.88 | 18.08 | 63.94 | -9.18 | 37.78 | 0.2487 | 994.0 | 776.7 | |
| 0.00 | 9.08 | 0.00 | 4.58 | 12.84 | 64.17 | -8.95 | 55.25 | 0.1854 | -755.0 | -751.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.55 | 63.48 | -9.64 | 40.53 | 0.2467 | -680.0 | -447.3 | |
| 3.24 | 8.00 | 1.66 | 4.11 | 18.69 | 63.35 | -9.77 | 37.91 | 0.2626 | -1004.5 | -692.6 | |
| 2.70 | 228.99 | 1.38 | 117.38 | 17.18 | 63.37 | -9.75 | 41.88 | 0.2433 | -845.1 | -416.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 12.73 | 63.39 | -9.73 | 57.85 | 0.1956 | -806.0 | -683.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.68 | 63.17 | -9.94 | 43.90 | 0.2396 | 614.0 | 396.5 | |
| 7.37 | 14.48 | 3.75 | 7.36 | 15.23 | 63.06 | -10.06 | 48.91 | 0.2247 | -1010.1 | -720.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 18.49 | 62.78 | -10.34 | 39.96 | 0.2662 | -809.0 | -584.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.27 | 62.62 | -10.50 | 46.68 | 0.2416 | -752.0 | -529.9 | |
| 32.82 | -15.00 | 16.79 | -15.00 | 17.07 | 62.54 | -10.58 | 44.47 | 0.2516 | -1302.2 | 999999 | |
| 4.59 | 10.34 | 2.33 | 5.27 | 15.38 | 62.57 | -10.55 | 49.71 | 0.2325 | -972.7 | -695.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 21.63 | 62.17 | -10.95 | 34.53 | 0.3128 | -710.0 | -597.7 | |
| 1.62 | -15.00 | 0.83 | -15.00 | 17.93 | 62.33 | -10.79 | 42.62 | 0.2642 | -869.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 21.78 | 61.99 | -11.13 | 34.66 | 0.3165 | -1015.0 | -890.2 | |
| 8.90 | -15.00 | 4.57 | -15.00 | 17.71 | 62.21 | -10.91 | 43.51 | 0.2630 | -967.0 | 999999 | |
| 2.34 | 15.10 | 1.19 | 7.71 | 15.95 | 62.28 | -10.84 | 48.54 | 0.2423 | 573.8 | 98.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 15.95 | 61.99 | -11.13 | 49.28 | 0.2459 | -610.0 | -571.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 15.73 | 61.88 | -11.24 | 50.26 | 0.2451 | -790.0 | -535.5 | |
| 1.71 | 2.88 | 0.87 | 1.47 | 15.93 | 61.41 | -11.70 | 50.69 | 0.2532 | -897.7 | -725.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.29 | 61.63 | -11.49 | 77.28 | 0.2025 | -743.0 | -635.0 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 19.90 | 60.62 | -12.50 | 41.76 | 0.3070 | -839.0 | -623.3 | |
| 0.00 | 2.43 | 0.00 | 1.26 | 19.93 | 60.38 | -12.73 | 42.20 | 0.3098 | -875.0 | -671.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 15.66 | 60.11 | -13.01 | 54.35 | 0.2679 | 936.0 | 670.1 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.91 | 59.56 | -13.56 | 43.97 | 0.3189 | -863.0 | -618.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.01 | 59.58 | -13.54 | 48.60 | 0.2980 | 820.0 | 690.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 14.96 | 59.35 | -13.77 | 57.98 | 0.2725 | 1074.0 | 816.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 14.19 | 59.36 | -13.75 | 60.46 | 0.2661 | 934.0 | 737.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 17.04 | 59.13 | -13.98 | 52.11 | 0.2941 | 976.0 | 751.3 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 15.54 | 59.15 | -13.97 | 56.51 | 0.2802 | 1029.0 | 826.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 14.74 | 59.20 | -13.92 | 58.93 | 0.2728 | 795.0 | 632.6 | |
| 0.00 | 2.70 | 0.00 | 1.40 | 16.82 | 58.99 | -14.13 | 53.00 | 0.2939 | 912.0 | 738.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.35 | 59.09 | -14.02 | 57.18 | 0.2793 | 953.0 | 778.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 17.93 | 58.77 | -14.35 | 50.39 | 0.3075 | 865.0 | 678.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 20.61 | 58.02 | -15.10 | 45.30 | 0.3444 | 935.0 | 807.5 | |
| 0.54 | 4.05 | 0.28 | 2.13 | 20.13 | 57.57 | -15.55 | 47.17 | 0.3447 | 956.3 | 673.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 7.32 | 58.39 | -14.73 | 87.37 | 0.2536 | -829.0 | -663.1 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 19.70 | 56.87 | -16.24 | 49.31 | 0.3488 | 772.0 | 763.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 20.26 | 56.71 | -16.40 | 48.31 | 0.3563 | 830.0 | 653.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 19.57 | 56.69 | -16.43 | 49.92 | 0.3498 | 887.0 | 692.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.37 | 56.81 | -16.31 | 52.61 | 0.3369 | 871.0 | 732.1 | |
| 0.00 | 3.33 | 0.00 | 1.77 | 20.05 | 56.16 | -16.95 | 49.64 | 0.3610 | 915.0 | 919.8 | |
| 0.72 | 190.24 | 0.37 | 99.15 | 13.90 | 56.57 | -16.55 | 65.35 | 0.3056 | 1199.6 | 475.2 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 20.70 | 55.82 | -17.30 | 48.76 | 0.3715 | 934.0 | 700.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 20.82 | 55.63 | -17.48 | 48.78 | 0.3749 | 731.0 | 573.6 | |
| 29.40 | -53.00 | 15.33 | -53.00 | 14.22 | 56.25 | -16.87 | 64.74 | 0.3124 | 1388.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 20.59 | 55.32 | -17.80 | 49.74 | 0.3765 | 715.0 | 621.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 20.73 | 55.00 | -18.12 | 49.90 | 0.3819 | 915.0 | 759.9 | |
| 0.00 | 4.77 | 0.00 | 2.56 | 20.98 | 54.90 | -18.22 | 49.52 | 0.3855 | 756.0 | 632.1 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 20.10 | 54.90 | -18.21 | 51.39 | 0.3772 | 824.0 | 644.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.44 | 54.79 | -18.32 | 50.81 | 0.3817 | 933.0 | 800.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.72 | 54.62 | -18.49 | 50.46 | 0.3864 | 794.0 | 668.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.27 | 54.34 | -18.78 | 51.81 | 0.3859 | 758.0 | 613.0 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 20.92 | 54.25 | -18.86 | 50.53 | 0.3929 | 829.0 | 680.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 21.07 | 54.03 | -19.09 | 50.53 | 0.3970 | 612.0 | 512.6 | |
| 0.00 | 1.89 | 0.00 | 1.02 | 19.74 | 53.62 | -19.50 | 53.90 | 0.3905 | 808.0 | 522.2 | |
| 0.00 | 2.16 | 0.00 | 1.17 | 20.93 | 52.67 | -20.45 | 52.58 | 0.4127 | 786.0 | 574.6 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 20.31 | 52.17 | -20.95 | 54.45 | 0.4139 | 763.0 | 555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
