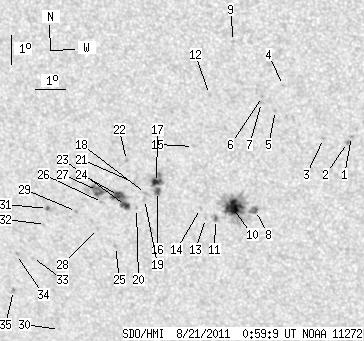

SDO HMI 2011-08-21 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.56 | 166.42 | 29.21 | 97.65 | -21.10 | 54.92 | -16.54 | 150.39 | 0.5379 | 114.1 | 199.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-21 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.81 | -18.83 | 60.77 | -10.69 | 157.88 | 0.4682 | 783.0 | 593.1 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -19.03 | 60.63 | -10.84 | 157.78 | 0.4720 | 929.0 | 776.7 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -18.92 | 59.85 | -11.61 | 156.26 | 0.4750 | 710.0 | 535.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -17.18 | 58.67 | -12.80 | 152.41 | 0.4588 | 830.0 | 642.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.02 | 58.35 | -13.12 | 152.70 | 0.4726 | 707.0 | 533.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -17.56 | 57.95 | -13.51 | 151.54 | 0.4692 | 924.0 | 724.4 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -17.76 | 57.91 | -13.56 | 151.66 | 0.4723 | 700.0 | 541.2 | |
| 1.71 | 6.03 | 0.99 | 3.50 | -21.44 | 57.38 | -14.08 | 154.33 | 0.5249 | 888.9 | 723.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -15.77 | 57.14 | -14.32 | 148.05 | 0.4517 | 736.0 | 520.9 | |
| 14.93 | 65.74 | 8.70 | 38.31 | -21.36 | 56.62 | -14.85 | 153.06 | 0.5289 | 1148.8 | 431.8 | |
| 1.80 | 3.87 | 1.06 | 2.27 | -21.80 | 56.00 | -15.47 | 152.51 | 0.5387 | 718.0 | 571.7 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -17.55 | 56.21 | -15.25 | 148.53 | 0.4824 | 676.0 | 483.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -21.77 | 55.66 | -15.81 | 151.99 | 0.5407 | 653.0 | 511.5 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -21.43 | 55.53 | -15.94 | 151.47 | 0.5373 | 656.0 | 495.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -19.32 | 55.52 | -15.95 | 149.34 | 0.5105 | 518.0 | 414.6 | |
| 3.15 | 4.86 | 1.85 | 2.86 | -20.90 | 54.13 | -17.34 | 148.89 | 0.5408 | 766.7 | 615.4 | |
| 5.67 | 12.23 | 3.32 | 7.16 | -20.59 | 54.13 | -17.33 | 148.57 | 0.5370 | 731.5 | 616.3 | |
| 0.00 | 2.70 | 0.00 | 1.59 | -20.99 | 53.71 | -17.76 | 148.37 | 0.5450 | 120.0 | 176.1 | |
| 0.00 | 2.34 | 0.00 | 1.38 | -21.19 | 53.65 | -17.82 | 148.50 | 0.5480 | 479.0 | 339.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -21.52 | 53.33 | -18.13 | 148.38 | 0.5543 | -606.0 | -451.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -20.62 | 53.34 | -18.12 | 147.47 | 0.5435 | -397.0 | -325.4 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -19.88 | 53.20 | -18.27 | 146.47 | 0.5357 | -842.0 | -742.8 | |
| 5.76 | 19.16 | 3.43 | 11.38 | -21.43 | 52.97 | -18.50 | 147.78 | 0.5561 | -704.6 | -593.7 | |
| 7.37 | -23.00 | 4.38 | -23.00 | -21.09 | 52.77 | -18.69 | 147.16 | 0.5536 | -963.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -22.87 | 52.42 | -19.04 | 148.49 | 0.5774 | -784.0 | -576.7 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -21.36 | 52.18 | -19.28 | 146.64 | 0.5614 | -654.0 | -505.5 | |
| 7.73 | 15.02 | 4.61 | 8.95 | -20.95 | 52.07 | -19.40 | 146.05 | 0.5575 | -949.2 | -747.6 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -22.27 | 51.88 | -19.58 | 147.18 | 0.5744 | -666.0 | -474.3 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -21.71 | 51.23 | -20.23 | 145.75 | 0.5730 | -653.0 | -574.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -25.93 | 49.91 | -21.55 | 148.28 | 0.6306 | -633.0 | -543.5 | |
| 1.44 | 3.60 | 0.87 | 2.18 | -21.65 | 50.23 | -21.24 | 144.40 | 0.5805 | -780.4 | -520.3 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -22.21 | 50.07 | -21.40 | 144.80 | 0.5881 | -221.0 | -272.0 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -23.39 | 49.41 | -22.06 | 145.22 | 0.6064 | -171.0 | -229.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -23.32 | 48.85 | -22.61 | 144.48 | 0.6100 | -541.0 | -477.8 | |
| 0.00 | 2.25 | 0.00 | 1.43 | -24.60 | 48.50 | -22.96 | 145.38 | 0.6266 | -743.0 | -581.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
