SDO HMI 2011-08-21 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.27 | 170.31 | 31.05 | 99.25 | -21.14 | 54.85 | -14.97 | 152.83 | 0.5275 | 94.1 | 79.9 | |
|
previous
or next observation for the same group /

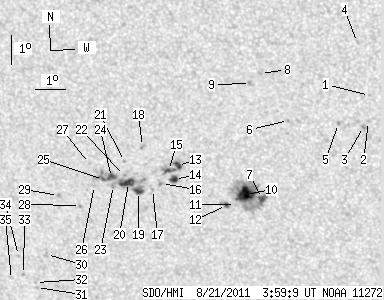

back to the solar disc SDO HMI 2011-08-21 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.95 | 60.92 | -8.89 | 160.65 | 0.4458 | 776.0 | 612.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.82 | 60.85 | -8.97 | 161.16 | 0.4590 | 809.0 | 531.8 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -19.00 | 60.67 | -9.15 | 160.95 | 0.4624 | 803.0 | 717.3 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -16.19 | 60.62 | -9.19 | 158.56 | 0.4216 | 741.0 | 507.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -18.91 | 59.87 | -9.95 | 159.34 | 0.4654 | 769.0 | 600.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -18.85 | 58.24 | -11.58 | 156.27 | 0.4740 | 815.0 | 658.9 | |
| 5.13 | 69.27 | 2.96 | 40.09 | -21.54 | 57.16 | -12.65 | 156.71 | 0.5175 | 760.5 | 421.5 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -17.30 | 57.43 | -12.39 | 153.30 | 0.4577 | 862.0 | 680.7 | |
| 0.00 | 2.61 | 0.00 | 1.46 | -17.64 | 57.08 | -12.74 | 153.01 | 0.4648 | 898.0 | 759.2 | |
| 15.92 | -7.00 | 9.22 | -7.00 | -21.41 | 56.61 | -13.21 | 155.70 | 0.5192 | 1165.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.77 | 56.24 | -13.58 | 155.41 | 0.5262 | 335.0 | 255.5 | |
| 2.16 | 4.05 | 1.26 | 2.36 | -21.82 | 55.93 | -13.89 | 154.97 | 0.5287 | 747.9 | 613.2 | |
| 3.78 | 14.93 | 2.19 | 8.67 | -20.49 | 54.42 | -15.40 | 151.38 | 0.5215 | 959.0 | 362.9 | |
| 4.23 | 5.76 | 2.46 | 3.36 | -20.97 | 54.26 | -15.55 | 151.62 | 0.5288 | 761.9 | 537.6 | |
| 2.43 | -13.00 | 1.41 | -13.00 | -20.67 | 54.09 | -15.72 | 151.06 | 0.5261 | 614.2 | 999999 | |
| 0.00 | 3.60 | 0.00 | 2.11 | -21.13 | 53.81 | -16.01 | 151.07 | 0.5340 | 682.0 | 405.2 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -21.35 | 53.48 | -16.34 | 150.79 | 0.5391 | 175.0 | 98.8 | |
| 0.00 | 2.43 | 0.00 | 1.41 | -19.88 | 53.30 | -16.52 | 149.06 | 0.5220 | -803.0 | -663.3 | |
| 4.59 | 24.29 | 2.70 | 14.30 | -21.43 | 52.99 | -16.83 | 150.16 | 0.5437 | -776.0 | -581.9 | |
| 8.01 | -19.00 | 4.71 | -19.00 | -21.13 | 52.69 | -17.13 | 149.42 | 0.5422 | -1007.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -20.42 | 52.64 | -17.18 | 148.62 | 0.5338 | -792.0 | -644.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -20.90 | 52.58 | -17.24 | 149.03 | 0.5401 | -1054.0 | -823.6 | |
| 0.00 | 2.88 | 0.00 | 1.70 | -21.26 | 52.16 | -17.66 | 148.79 | 0.5477 | -716.0 | -655.2 | |
| 5.04 | 15.47 | 2.97 | 9.14 | -20.98 | 52.13 | -17.69 | 148.46 | 0.5446 | -1055.8 | -815.4 | |
| 1.98 | -24.00 | 1.17 | -24.00 | -21.06 | 51.84 | -17.98 | 148.14 | 0.5478 | -849.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -21.28 | 51.51 | -18.31 | 147.90 | 0.5530 | -585.0 | -515.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -20.53 | 51.43 | -18.39 | 147.00 | 0.5446 | -701.0 | -473.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -22.00 | 50.93 | -18.89 | 147.83 | 0.5660 | -587.0 | -527.3 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -21.68 | 50.21 | -19.61 | 146.54 | 0.5678 | -947.0 | -775.3 | |
| 0.00 | 2.34 | 0.00 | 1.44 | -23.77 | 49.47 | -20.35 | 147.69 | 0.5976 | -717.0 | -565.2 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -24.97 | 48.91 | -20.91 | 148.15 | 0.6153 | -671.0 | -531.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -24.79 | 48.90 | -20.91 | 147.97 | 0.6134 | -731.0 | -600.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -24.52 | 48.52 | -21.30 | 147.26 | 0.6132 | -851.0 | -683.9 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -23.85 | 48.46 | -21.36 | 146.53 | 0.6062 | -512.0 | -438.1 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -24.72 | 48.05 | -21.76 | 146.89 | 0.6189 | -537.0 | -498.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
