SDO HMI 2011-08-21 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.74 | 187.51 | 30.10 | 109.10 | -21.17 | 54.56 | -14.71 | 153.22 | 0.5263 | 38.8 | -7.3 | |
|
previous
or next observation for the same group /

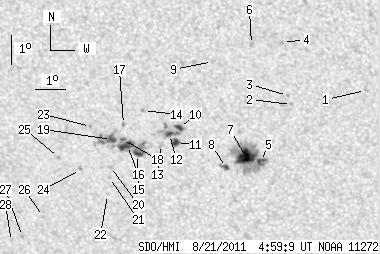

back to the solar disc SDO HMI 2011-08-21 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.75 | -19.05 | 60.71 | -8.56 | 162.12 | 0.4604 | 789.0 | 622.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -19.58 | 58.26 | -11.01 | 157.93 | 0.4808 | -701.0 | -458.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -19.28 | 58.15 | -11.12 | 157.47 | 0.4772 | 724.0 | 596.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.50 | 58.10 | -11.17 | 155.80 | 0.4524 | 868.0 | 684.5 | |
| 3.51 | 71.53 | 2.02 | 41.30 | -21.56 | 57.08 | -12.19 | 157.50 | 0.5151 | 759.9 | 451.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -17.59 | 57.09 | -12.18 | 153.98 | 0.4604 | 1067.0 | 826.6 | |
| 16.82 | -5.00 | 9.72 | -5.00 | -21.43 | 56.62 | -12.65 | 156.64 | 0.5161 | 1134.3 | 999999 | |
| 2.25 | 4.50 | 1.31 | 2.62 | -21.80 | 55.92 | -13.35 | 155.81 | 0.5252 | 723.9 | 538.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -18.20 | 55.77 | -13.50 | 152.22 | 0.4778 | 705.0 | 450.6 | |
| 2.88 | 20.69 | 1.66 | 11.99 | -20.47 | 54.47 | -14.80 | 152.31 | 0.5170 | 999.4 | 284.6 | |
| 4.14 | 5.58 | 2.41 | 3.24 | -20.99 | 54.29 | -14.99 | 152.51 | 0.5251 | 739.0 | 579.9 | |
| 2.61 | -10.00 | 1.51 | -10.00 | -20.72 | 54.11 | -15.16 | 151.99 | 0.5228 | 511.1 | 999999 | |
| 0.00 | 3.33 | 0.00 | 1.94 | -21.08 | 53.81 | -15.47 | 151.85 | 0.5295 | 518.0 | 420.5 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -19.93 | 53.32 | -15.95 | 149.97 | 0.5183 | -921.0 | -779.3 | |
| 3.51 | 62.71 | 2.06 | 36.84 | -21.45 | 52.95 | -16.32 | 150.92 | 0.5403 | -780.2 | -625.4 | |
| 9.09 | -15.00 | 5.34 | -15.00 | -21.15 | 52.65 | -16.63 | 150.18 | 0.5387 | -1054.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -20.43 | 52.59 | -16.68 | 149.38 | 0.5301 | -976.0 | -739.7 | |
| 1.17 | -15.00 | 0.69 | -15.00 | -20.95 | 52.50 | -16.77 | 149.77 | 0.5373 | -1049.3 | 999999 | |
| 5.76 | -15.00 | 3.38 | -15.00 | -20.96 | 52.12 | -17.15 | 149.23 | 0.5403 | -1063.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -21.90 | 51.98 | -17.30 | 149.94 | 0.5529 | -678.0 | -598.8 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -22.28 | 51.89 | -17.38 | 150.20 | 0.5582 | -641.0 | -449.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -22.88 | 51.74 | -17.53 | 150.56 | 0.5666 | -622.0 | -448.6 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -20.55 | 51.46 | -17.81 | 147.84 | 0.5402 | -744.0 | -559.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -22.05 | 50.92 | -18.35 | 148.62 | 0.5624 | -737.0 | -653.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -21.66 | 50.22 | -19.05 | 147.26 | 0.5632 | -848.0 | -662.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -23.75 | 49.38 | -19.89 | 148.25 | 0.5940 | -705.0 | -593.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -24.50 | 48.51 | -20.76 | 147.89 | 0.6089 | -789.0 | -718.3 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -24.70 | 48.08 | -21.19 | 147.56 | 0.6143 | -603.0 | -469.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
