SDO HMI 2011-08-21 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.44 | 731.44 | 62.90 | 370.19 | 16.04 | 61.16 | -6.47 | 32.32 | 0.2013 | -367.1 | -155.8 | |
|
previous
or next observation for the same group /

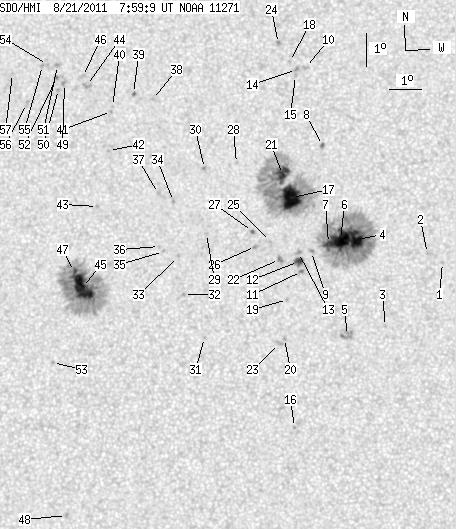

back to the solar disc SDO HMI 2011-08-21 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.14 | 67.44 | -0.18 | 1.24 | 0.1441 | -915.0 | -671.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 15.42 | 66.97 | -0.66 | 4.26 | 0.1492 | -939.0 | -768.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 13.18 | 65.67 | -1.96 | 16.90 | 0.1150 | -803.0 | -592.2 | |
| 14.76 | 232.59 | 7.41 | 116.83 | 15.84 | 64.73 | -2.90 | 17.36 | 0.1637 | -1466.6 | -490.9 | |
| 0.00 | 8.37 | 0.00 | 4.17 | 12.90 | 64.49 | -3.14 | 27.01 | 0.1181 | -909.0 | -842.7 | |
| 24.83 | -4.00 | 12.48 | -4.00 | 15.83 | 64.23 | -3.40 | 20.15 | 0.1664 | -1345.0 | 999999 | |
| 2.07 | -4.00 | 1.04 | -4.00 | 15.71 | 63.85 | -3.78 | 22.46 | 0.1668 | -1115.3 | 999999 | |
| 1.62 | 1.89 | 0.82 | 0.96 | 18.73 | 63.60 | -4.03 | 17.98 | 0.2168 | -876.6 | -890.3 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 15.46 | 63.32 | -4.31 | 25.90 | 0.1666 | -995.0 | -849.9 | |
| 0.00 | 2.70 | 0.00 | 1.38 | 21.15 | 62.98 | -4.65 | 17.05 | 0.2591 | -943.0 | -731.8 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 14.84 | 63.02 | -4.61 | 29.28 | 0.1596 | -1014.0 | -816.8 | |
| 5.49 | 6.39 | 2.76 | 3.21 | 15.15 | 62.92 | -4.71 | 28.86 | 0.1651 | -1066.2 | -858.9 | |
| 0.00 | 2.79 | 0.00 | 1.40 | 15.42 | 62.91 | -4.72 | 28.08 | 0.1693 | -856.0 | -694.8 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 21.09 | 62.69 | -4.94 | 18.13 | 0.2595 | -981.0 | -773.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.90 | 62.66 | -4.97 | 18.46 | 0.2567 | -984.0 | -750.3 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 10.09 | 62.88 | -4.74 | 55.46 | 0.0993 | -931.0 | -716.8 | |
| 30.23 | 216.48 | 15.27 | 109.52 | 17.11 | 62.65 | -4.98 | 25.03 | 0.1971 | -1323.3 | -378.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 21.34 | 62.45 | -5.18 | 18.61 | 0.2647 | -839.0 | -593.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 13.98 | 62.60 | -5.03 | 34.52 | 0.1509 | -835.0 | -581.9 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.79 | 62.53 | -5.10 | 40.06 | 0.1354 | -919.0 | -718.0 | |
| 14.76 | -17.00 | 7.48 | -17.00 | 17.82 | 62.34 | -5.29 | 24.80 | 0.2102 | -1036.1 | 999999 | |
| 0.00 | 3.33 | 0.00 | 1.67 | 15.20 | 62.31 | -5.31 | 31.65 | 0.1711 | -1081.0 | -954.2 | |
| 0.00 | 3.69 | 0.00 | 1.84 | 12.64 | 62.37 | -5.25 | 41.64 | 0.1351 | -803.0 | -638.0 | |
| 0.00 | 2.88 | 0.00 | 1.48 | 21.90 | 62.07 | -5.56 | 19.12 | 0.2757 | -912.0 | -704.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 15.75 | 62.02 | -5.61 | 31.36 | 0.1817 | -786.0 | -607.6 | |
| 0.00 | 2.79 | 0.00 | 1.41 | 15.59 | 61.55 | -6.08 | 33.91 | 0.1838 | -923.0 | -724.1 | |
| 0.45 | 1.26 | 0.23 | 0.64 | 16.05 | 61.44 | -6.19 | 32.97 | 0.1913 | -963.6 | -842.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.14 | 60.85 | -6.78 | 29.80 | 0.2266 | -284.0 | -298.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.97 | 59.98 | -7.65 | 38.89 | 0.2048 | 762.0 | 573.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 17.97 | 59.83 | -7.80 | 33.75 | 0.2333 | 1056.0 | 907.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 12.79 | 60.02 | -7.61 | 51.22 | 0.1663 | 911.0 | 671.2 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 14.09 | 59.32 | -8.31 | 47.95 | 0.1896 | 903.0 | 692.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.25 | 59.12 | -8.51 | 44.26 | 0.2056 | 835.0 | 678.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 16.94 | 58.88 | -8.75 | 39.63 | 0.2291 | 964.0 | 724.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.40 | 58.63 | -9.00 | 45.30 | 0.2131 | 846.0 | 652.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.55 | 58.50 | -9.13 | 45.20 | 0.2165 | 852.0 | 621.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 17.18 | 58.39 | -9.24 | 40.46 | 0.2375 | 837.0 | 664.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 20.08 | 58.03 | -9.60 | 34.29 | 0.2792 | 899.0 | 720.6 | |
| 1.08 | 1.35 | 0.56 | 0.70 | 20.26 | 57.40 | -10.23 | 35.59 | 0.2876 | 932.8 | 874.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 19.84 | 56.73 | -10.89 | 38.19 | 0.2888 | 825.0 | 647.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 19.68 | 56.71 | -10.92 | 38.61 | 0.2870 | 936.0 | 680.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.47 | 56.70 | -10.93 | 41.59 | 0.2722 | 816.0 | 644.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 16.73 | 56.45 | -11.18 | 47.02 | 0.2550 | 771.0 | 608.3 | |
| 0.00 | 3.78 | 0.00 | 1.97 | 20.47 | 55.83 | -11.80 | 38.94 | 0.3061 | 954.0 | 804.6 | |
| 27.89 | 185.08 | 14.21 | 94.29 | 14.24 | 56.10 | -11.52 | 56.09 | 0.2344 | 1333.3 | 461.7 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 20.75 | 55.68 | -11.95 | 38.69 | 0.3112 | 593.0 | 535.5 | |
| 1.26 | -45.00 | 0.64 | -45.00 | 14.72 | 55.82 | -11.81 | 54.99 | 0.2427 | 1028.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 7.30 | 55.87 | -11.76 | 87.32 | 0.2032 | -956.0 | -798.3 | |
| 0.00 | 3.24 | 0.00 | 1.69 | 20.52 | 55.10 | -12.53 | 40.47 | 0.3144 | 966.0 | 851.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 20.33 | 54.92 | -12.71 | 41.29 | 0.3141 | 928.0 | 711.1 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 21.07 | 54.82 | -12.81 | 39.87 | 0.3241 | 910.0 | 730.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 20.70 | 54.82 | -12.81 | 40.68 | 0.3196 | 1006.0 | 830.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.93 | 55.26 | -12.37 | 66.65 | 0.2292 | -1007.0 | -715.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 21.10 | 54.48 | -13.15 | 40.53 | 0.3280 | 896.0 | 675.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 21.06 | 54.32 | -13.31 | 40.94 | 0.3293 | 899.0 | 639.8 | |
| 0.00 | 2.52 | 0.00 | 1.32 | 19.86 | 53.89 | -13.74 | 44.46 | 0.3202 | 684.0 | 647.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 20.78 | 53.34 | -14.29 | 43.46 | 0.3369 | 714.0 | 524.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
