SDO HMI 2011-08-21 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.16 | 758.32 | 63.16 | 383.49 | 16.17 | 61.18 | -5.90 | 297.10 | 0.1984 | -352.0 | -135.7 | |
|
previous
or next observation for the same group /

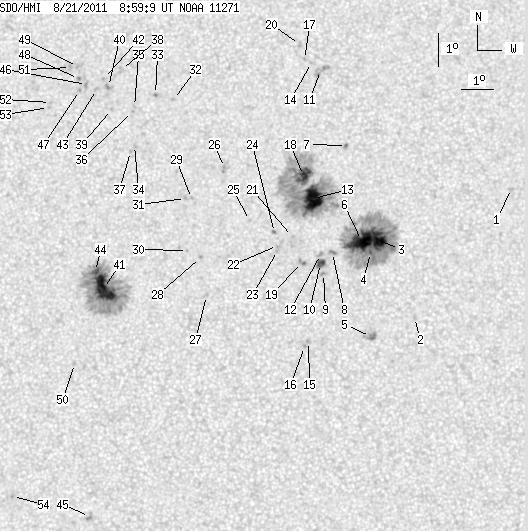

back to the solar disc SDO HMI 2011-08-21 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.09 | 17.44 | 68.93 | 1.85 | 350.47 | 0.1865 | -764.0 | -651.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 13.49 | 65.87 | -1.21 | 10.17 | 0.1172 | -828.0 | -512.0 | |
| 16.38 | 223.58 | 8.22 | 112.25 | 15.84 | 64.72 | -2.36 | 14.30 | 0.1613 | -1426.4 | -471.7 | |
| 1.17 | -3.00 | 0.59 | -3.00 | 15.47 | 64.47 | -2.61 | 16.39 | 0.1562 | -1025.7 | 999999 | |
| 0.00 | 7.02 | 0.00 | 3.50 | 12.90 | 64.50 | -2.58 | 22.73 | 0.1141 | -1063.0 | -893.8 | |
| 30.05 | -3.00 | 15.09 | -3.00 | 15.84 | 64.18 | -2.90 | 17.36 | 0.1637 | -1290.2 | 999999 | |
| 1.26 | 1.35 | 0.64 | 0.68 | 18.76 | 63.66 | -3.43 | 15.37 | 0.2144 | -861.0 | -1028.0 | |
| 0.00 | 3.06 | 0.00 | 1.54 | 15.46 | 63.27 | -3.81 | 23.21 | 0.1631 | -987.0 | -856.7 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 14.82 | 63.00 | -4.08 | 26.47 | 0.1550 | -911.0 | -697.5 | |
| 5.94 | 7.38 | 2.98 | 3.70 | 15.12 | 62.90 | -4.18 | 26.13 | 0.1604 | -1072.0 | -700.9 | |
| 0.00 | 8.64 | 0.00 | 4.43 | 21.09 | 62.76 | -4.32 | 15.99 | 0.2566 | -894.0 | -805.7 | |
| 0.00 | 3.24 | 0.00 | 1.63 | 15.40 | 62.90 | -4.18 | 25.40 | 0.1647 | -881.0 | -646.3 | |
| 29.15 | 252.10 | 14.72 | 127.45 | 17.12 | 62.64 | -4.44 | 22.61 | 0.1935 | -1311.5 | -342.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 21.34 | 62.46 | -4.63 | 16.74 | 0.2620 | -782.0 | -586.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 12.73 | 62.57 | -4.51 | 36.91 | 0.1283 | -893.0 | -740.9 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 12.58 | 62.45 | -4.63 | 38.39 | 0.1275 | -985.0 | -737.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 21.43 | 62.22 | -4.86 | 17.41 | 0.2646 | -845.0 | -647.9 | |
| 13.86 | -13.00 | 7.01 | -13.00 | 17.82 | 62.30 | -4.78 | 22.67 | 0.2068 | -1040.5 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.72 | 15.15 | 62.30 | -4.78 | 29.19 | 0.1656 | -936.0 | -848.5 | |
| 0.00 | 2.70 | 0.00 | 1.39 | 21.90 | 62.04 | -5.04 | 17.44 | 0.2730 | -852.0 | -658.9 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 15.94 | 62.00 | -5.08 | 28.37 | 0.1800 | -741.0 | -695.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 15.66 | 61.53 | -5.55 | 31.33 | 0.1798 | -576.0 | -534.8 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 15.51 | 61.54 | -5.54 | 31.78 | 0.1776 | -869.0 | -659.8 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 16.06 | 61.43 | -5.65 | 30.65 | 0.1866 | -922.0 | -704.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.42 | 60.62 | -6.46 | 33.01 | 0.1990 | 654.0 | 467.0 | |
| 0.00 | 4.86 | 0.00 | 2.47 | 18.04 | 59.76 | -7.32 | 31.96 | 0.2299 | 684.0 | 521.9 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 14.10 | 59.34 | -7.74 | 45.94 | 0.1827 | 839.0 | 573.5 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 15.26 | 59.11 | -7.97 | 42.41 | 0.1994 | 943.0 | 751.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.07 | 58.74 | -8.34 | 37.94 | 0.2265 | 837.0 | 677.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.47 | 58.68 | -8.40 | 43.12 | 0.2068 | 872.0 | 687.8 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 17.06 | 58.55 | -8.53 | 38.57 | 0.2284 | 836.0 | 712.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 20.12 | 58.00 | -9.08 | 32.76 | 0.2750 | 980.0 | 710.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 20.27 | 57.40 | -9.68 | 34.11 | 0.2825 | 1056.0 | 881.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 18.67 | 56.82 | -10.26 | 39.35 | 0.2674 | 770.0 | 679.2 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 19.88 | 56.74 | -10.34 | 36.70 | 0.2837 | 892.0 | 621.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.72 | 56.69 | -10.40 | 37.19 | 0.2822 | 982.0 | 824.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 18.48 | 56.70 | -10.38 | 40.14 | 0.2663 | 872.0 | 643.2 | |
| 0.00 | 3.33 | 0.00 | 1.73 | 21.02 | 56.23 | -10.85 | 35.52 | 0.3037 | 638.0 | 561.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 19.77 | 55.99 | -11.09 | 38.82 | 0.2900 | 750.0 | 641.0 | |
| 0.00 | 3.69 | 0.00 | 1.92 | 20.48 | 55.84 | -11.24 | 37.60 | 0.3006 | 908.0 | 772.6 | |
| 24.29 | 178.33 | 12.35 | 90.68 | 14.25 | 56.07 | -11.02 | 54.90 | 0.2274 | 1350.6 | 485.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 20.73 | 55.66 | -11.42 | 37.51 | 0.3055 | 716.0 | 562.9 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 20.38 | 55.45 | -11.63 | 38.74 | 0.3032 | 590.0 | 669.0 | |
| 3.06 | -41.00 | 1.56 | -41.00 | 14.76 | 55.78 | -11.30 | 53.70 | 0.2361 | 984.7 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.73 | 7.31 | 55.88 | -11.20 | 87.18 | 0.1937 | -824.0 | -736.9 | |
| 0.00 | 3.06 | 0.00 | 1.59 | 20.53 | 55.11 | -11.97 | 39.20 | 0.3087 | 1083.0 | 845.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 20.34 | 54.90 | -12.19 | 40.11 | 0.3086 | 921.0 | 771.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 20.71 | 54.83 | -12.25 | 39.43 | 0.3138 | 1005.0 | 832.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 21.08 | 54.77 | -12.31 | 38.78 | 0.3191 | 840.0 | 665.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.94 | 55.25 | -11.83 | 65.72 | 0.2210 | -950.0 | -618.6 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 21.05 | 54.54 | -12.54 | 39.35 | 0.3210 | 967.0 | 644.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 19.94 | 53.97 | -13.11 | 43.01 | 0.3140 | 817.0 | 644.1 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 19.78 | 53.92 | -13.17 | 43.48 | 0.3128 | 915.0 | 707.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 7.85 | 53.46 | -13.63 | 85.09 | 0.2353 | 988.0 | 774.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
