SDO HMI 2011-08-21 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.68 | 247.31 | 33.12 | 142.14 | -21.14 | 53.94 | -12.05 | 157.51 | 0.5092 | 63.1 | -112.4 | |
|
previous
or next observation for the same group /

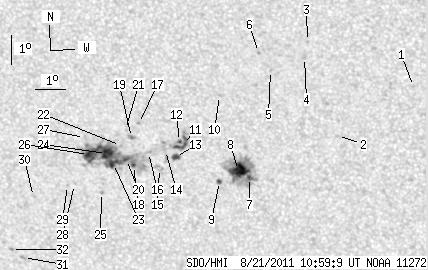

back to the solar disc SDO HMI 2011-08-21 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.52 | 62.27 | -3.71 | 171.86 | 0.4350 | 750.0 | 582.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -20.20 | 59.77 | -6.22 | 167.41 | 0.4680 | 592.0 | 427.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.05 | 58.92 | -7.06 | 163.83 | 0.4235 | 784.0 | 616.9 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -17.59 | 58.81 | -7.18 | 163.94 | 0.4321 | 728.0 | 417.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.04 | 57.69 | -8.29 | 161.94 | 0.4440 | 630.0 | 511.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.45 | 57.34 | -8.65 | 160.76 | 0.4370 | 828.0 | 724.3 | |
| 2.52 | 69.27 | 1.44 | 39.57 | -21.70 | 56.80 | -9.18 | 162.74 | 0.5016 | 648.9 | 461.5 | |
| 16.19 | -7.00 | 9.25 | -7.00 | -21.46 | 56.46 | -9.53 | 161.98 | 0.4998 | 1087.6 | 999999 | |
| 2.34 | 2.70 | 1.34 | 1.55 | -21.86 | 55.80 | -10.18 | 161.10 | 0.5086 | 685.7 | 588.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -18.92 | 55.99 | -9.99 | 159.28 | 0.4656 | 624.0 | 468.8 | |
| 7.56 | 17.99 | 4.31 | 10.25 | -20.61 | 54.67 | -11.32 | 158.22 | 0.4970 | 810.0 | 583.0 | |
| 1.35 | -11.00 | 0.77 | -11.00 | -20.51 | 54.57 | -11.41 | 157.98 | 0.4961 | 811.8 | 999999 | |
| 4.32 | 4.86 | 2.47 | 2.78 | -21.06 | 54.40 | -11.58 | 158.12 | 0.5048 | 697.8 | 447.0 | |
| 0.00 | 9.00 | 0.00 | 5.15 | -20.83 | 54.08 | -11.90 | 157.40 | 0.5033 | -170.0 | 198.7 | |
| 0.00 | 6.03 | 0.00 | 3.48 | -21.46 | 53.83 | -12.15 | 157.48 | 0.5134 | 426.0 | 407.1 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -20.92 | 53.51 | -12.47 | 156.50 | 0.5079 | -614.0 | -514.8 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -19.93 | 53.26 | -12.72 | 155.23 | 0.4960 | -813.0 | -642.1 | |
| 1.80 | 112.98 | 1.04 | 65.36 | -21.38 | 52.97 | -13.01 | 156.00 | 0.5174 | -776.5 | -591.7 | |
| 0.36 | 3.69 | 0.21 | 2.11 | -20.42 | 52.99 | -12.99 | 155.20 | 0.5043 | 722.2 | 415.9 | |
| 2.97 | -18.00 | 1.71 | -18.00 | -21.18 | 52.76 | -13.23 | 155.48 | 0.5160 | -895.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -20.15 | 52.81 | -13.17 | 154.66 | 0.5018 | -585.0 | -546.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -20.70 | 52.60 | -13.38 | 154.80 | 0.5106 | -174.0 | -195.7 | |
| 5.31 | -18.00 | 3.08 | -18.00 | -21.33 | 52.31 | -13.68 | 154.88 | 0.5208 | -918.3 | 999999 | |
| 9.00 | -18.00 | 5.20 | -18.00 | -20.99 | 52.10 | -13.88 | 154.26 | 0.5176 | -1215.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -22.35 | 51.80 | -14.18 | 154.96 | 0.5375 | -699.0 | -630.9 | |
| 3.96 | -18.00 | 2.30 | -18.00 | -21.05 | 51.50 | -14.49 | 153.34 | 0.5223 | -959.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -20.47 | 51.42 | -14.56 | 152.68 | 0.5153 | -628.0 | -488.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -22.10 | 50.91 | -15.07 | 153.39 | 0.5399 | -581.0 | -586.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.14 | 50.67 | -15.31 | 153.07 | 0.5421 | -642.0 | -506.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -22.57 | 49.46 | -16.52 | 151.68 | 0.5557 | -526.0 | -445.8 | |
| 0.00 | 2.07 | 0.00 | 1.26 | -24.74 | 48.82 | -17.16 | 152.72 | 0.5868 | -729.0 | -586.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -24.47 | 48.44 | -17.54 | 151.98 | 0.5860 | -716.0 | -572.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
