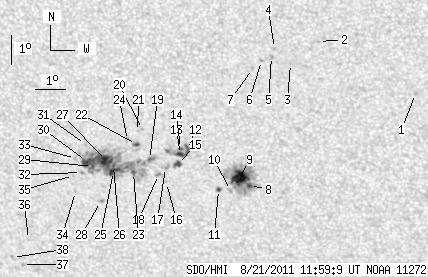

SDO HMI 2011-08-21 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.74 | 254.21 | 29.67 | 145.85 | -21.13 | 53.79 | -11.64 | 158.18 | 0.5068 | 51.0 | -138.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-21 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.51 | 62.30 | -3.13 | 173.11 | 0.4338 | 733.0 | 578.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.81 | 59.25 | -6.19 | 165.59 | 0.4161 | 702.0 | 567.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.56 | 58.32 | -7.11 | 164.06 | 0.4313 | 770.0 | 626.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -17.07 | 57.83 | -7.60 | 162.66 | 0.4261 | 812.0 | 620.6 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -17.33 | 57.72 | -7.71 | 162.63 | 0.4306 | 908.0 | 787.3 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -17.47 | 57.40 | -8.04 | 162.04 | 0.4343 | 787.0 | 654.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.74 | 57.10 | -8.34 | 161.62 | 0.4398 | 666.0 | 564.1 | |
| 2.34 | 69.35 | 1.34 | 39.55 | -21.72 | 56.78 | -8.65 | 163.70 | 0.4997 | 661.3 | 447.4 | |
| 16.01 | -8.00 | 9.13 | -8.00 | -21.45 | 56.47 | -8.96 | 162.97 | 0.4971 | 1092.7 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -21.91 | 56.14 | -9.29 | 162.68 | 0.5051 | 472.0 | 377.6 | |
| 1.53 | 2.43 | 0.88 | 1.39 | -21.88 | 55.75 | -9.69 | 161.98 | 0.5066 | 574.2 | 608.0 | |
| 1.26 | 17.99 | 0.72 | 10.24 | -20.53 | 54.82 | -10.62 | 159.38 | 0.4919 | 950.1 | 631.8 | |
| 2.97 | -12.00 | 1.69 | -12.00 | -20.70 | 54.57 | -10.86 | 159.09 | 0.4957 | 796.7 | 999999 | |
| 0.72 | -12.00 | 0.41 | -12.00 | -20.50 | 54.59 | -10.84 | 158.96 | 0.4928 | 910.0 | 999999 | |
| 4.05 | 4.86 | 2.31 | 2.78 | -21.05 | 54.45 | -10.98 | 159.14 | 0.5013 | 619.4 | 532.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -21.68 | 54.03 | -11.40 | 158.91 | 0.5123 | 505.0 | 458.3 | |
| 0.00 | 3.42 | 0.00 | 1.96 | -21.16 | 54.04 | -11.39 | 158.52 | 0.5051 | 386.0 | 389.7 | |
| 0.00 | 2.16 | 0.00 | 1.24 | -21.41 | 53.79 | -11.64 | 158.29 | 0.5099 | 756.0 | 556.7 | |
| 1.17 | 124.57 | 0.67 | 71.86 | -20.90 | 53.53 | -11.90 | 157.45 | 0.5043 | -725.5 | -597.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -19.88 | 53.38 | -12.05 | 156.33 | 0.4911 | -772.0 | -575.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -19.96 | 53.21 | -12.22 | 156.10 | 0.4932 | -742.0 | -643.5 | |
| 0.81 | 2.61 | 0.46 | 1.49 | -20.40 | 53.14 | -12.29 | 156.36 | 0.4997 | 705.9 | 526.5 | |
| 1.98 | -19.00 | 1.14 | -19.00 | -21.36 | 52.96 | -12.47 | 156.87 | 0.5140 | -772.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -20.27 | 52.85 | -12.58 | 155.76 | 0.4997 | -544.0 | -241.6 | |
| 4.95 | -19.00 | 2.86 | -19.00 | -21.35 | 52.29 | -13.14 | 155.76 | 0.5178 | -938.7 | 999999 | |
| 0.54 | -19.00 | 0.31 | -19.00 | -21.14 | 52.31 | -13.12 | 155.62 | 0.5149 | -1064.5 | 999999 | |
| 7.02 | -19.00 | 4.05 | -19.00 | -20.98 | 52.09 | -13.34 | 155.12 | 0.5140 | -1265.4 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.37 | -22.40 | 51.75 | -13.68 | 155.79 | 0.5351 | -665.0 | -549.9 | |
| 1.26 | -19.00 | 0.73 | -19.00 | -21.20 | 51.60 | -13.83 | 154.52 | 0.5201 | -938.1 | 999999 | |
| 5.13 | -19.00 | 2.97 | -19.00 | -21.03 | 51.42 | -14.01 | 154.08 | 0.5190 | -936.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -20.45 | 51.44 | -13.99 | 153.58 | 0.5112 | -689.0 | -504.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -21.42 | 51.21 | -14.22 | 154.09 | 0.5255 | -693.0 | -502.6 | |
| 0.00 | 1.98 | 0.00 | 1.15 | -20.94 | 51.06 | -14.37 | 153.42 | 0.5202 | -512.0 | -459.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.08 | 50.94 | -14.49 | 154.26 | 0.5359 | -614.0 | -509.5 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.53 | 50.93 | -14.50 | 153.76 | 0.5288 | -535.0 | -475.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -23.82 | 49.13 | -16.30 | 153.11 | 0.5699 | -533.0 | -439.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -24.72 | 48.80 | -16.63 | 153.42 | 0.5832 | -742.0 | -597.4 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -24.48 | 48.49 | -16.95 | 152.79 | 0.5823 | -723.0 | -590.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
