SDO HMI 2011-08-21 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.21 | 286.65 | 42.51 | 164.24 | -21.14 | 53.57 | -11.31 | 158.75 | 0.5052 | -42.9 | -113.7 | |
|
previous
or next observation for the same group /

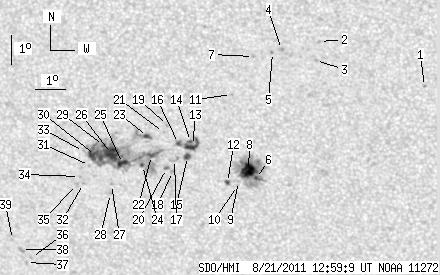

back to the solar disc SDO HMI 2011-08-21 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.54 | 62.30 | -2.59 | 174.31 | 0.4333 | 729.0 | 645.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.07 | 58.98 | -5.91 | 166.37 | 0.4190 | 809.0 | 594.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -17.71 | 58.83 | -6.05 | 166.41 | 0.4294 | 750.0 | 598.6 | |
| 0.00 | 2.25 | 0.00 | 1.23 | -17.35 | 57.75 | -7.13 | 163.88 | 0.4283 | 934.0 | 800.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.46 | 57.46 | -7.42 | 163.32 | 0.4312 | 749.0 | 677.5 | |
| 1.26 | 70.42 | 0.72 | 40.10 | -21.75 | 56.73 | -8.15 | 164.60 | 0.4979 | 660.1 | 447.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -17.60 | 56.84 | -8.04 | 162.13 | 0.4362 | 732.0 | 570.3 | |
| 14.48 | -6.00 | 8.25 | -6.00 | -21.47 | 56.48 | -8.40 | 163.99 | 0.4950 | 1114.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.86 | 56.13 | -8.75 | 163.59 | 0.5021 | 494.0 | 334.2 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -22.00 | 56.09 | -8.80 | 163.60 | 0.5043 | 428.0 | 342.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -18.89 | 56.07 | -8.81 | 161.52 | 0.4591 | 617.0 | 455.8 | |
| 1.71 | 2.97 | 0.98 | 1.70 | -21.90 | 55.76 | -9.12 | 162.97 | 0.5043 | 571.4 | 426.9 | |
| 8.45 | 18.17 | 4.80 | 10.32 | -20.65 | 54.69 | -10.19 | 160.23 | 0.4915 | 800.1 | 614.2 | |
| 0.90 | -13.00 | 0.51 | -13.00 | -20.52 | 54.63 | -10.25 | 160.03 | 0.4899 | 942.3 | 999999 | |
| 3.78 | 4.23 | 2.15 | 2.41 | -21.03 | 54.50 | -10.38 | 160.17 | 0.4979 | 713.4 | 620.6 | |
| 2.61 | -13.00 | 1.48 | -13.00 | -20.59 | 54.23 | -10.65 | 159.37 | 0.4931 | 632.8 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.65 | -21.15 | 54.06 | -10.82 | 159.49 | 0.5018 | 290.0 | 457.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -21.56 | 53.96 | -10.92 | 159.63 | 0.5081 | 700.0 | 464.4 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -19.99 | 53.91 | -10.97 | 158.33 | 0.4862 | -821.0 | -615.0 | |
| 1.98 | 2.34 | 1.14 | 1.34 | -21.46 | 53.77 | -11.11 | 159.23 | 0.5077 | 690.6 | 443.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.23 | 53.76 | -11.12 | 158.26 | 0.4905 | 460.0 | 279.9 | |
| 3.60 | 144.97 | 2.06 | 83.40 | -21.03 | 53.30 | -11.58 | 158.10 | 0.5042 | -796.8 | -491.3 | |
| 2.70 | 10.34 | 1.54 | 5.90 | -20.38 | 53.22 | -11.66 | 157.44 | 0.4957 | 684.0 | 121.5 | |
| 1.35 | -22.00 | 0.78 | -22.00 | -21.38 | 52.98 | -11.90 | 157.83 | 0.5109 | -760.3 | 999999 | |
| 4.68 | -22.00 | 2.70 | -22.00 | -21.33 | 52.31 | -12.57 | 156.68 | 0.5141 | -948.4 | 999999 | |
| 14.75 | -22.00 | 8.49 | -22.00 | -21.00 | 51.98 | -12.90 | 155.85 | 0.5116 | -1209.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.07 | 51.88 | -13.00 | 156.58 | 0.5266 | -728.0 | -582.8 | |
| 0.00 | 1.80 | 0.00 | 1.05 | -22.38 | 51.82 | -13.07 | 156.73 | 0.5312 | -760.0 | -599.2 | |
| 1.44 | -22.00 | 0.83 | -22.00 | -20.73 | 51.73 | -13.15 | 155.21 | 0.5094 | -1017.9 | 999999 | |
| 10.52 | -22.00 | 6.08 | -22.00 | -21.08 | 51.44 | -13.45 | 155.03 | 0.5161 | -941.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.43 | 51.20 | -13.68 | 154.96 | 0.5222 | -523.0 | -457.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -22.06 | 50.94 | -13.94 | 155.09 | 0.5322 | -611.0 | -465.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -20.96 | 51.05 | -13.84 | 154.29 | 0.5169 | -562.0 | -464.1 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -21.82 | 50.83 | -14.05 | 154.71 | 0.5298 | -638.0 | -595.1 | |
| 0.00 | 2.43 | 0.00 | 1.42 | -22.10 | 50.70 | -14.18 | 154.75 | 0.5343 | -665.0 | -461.5 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -24.73 | 48.85 | -16.04 | 154.25 | 0.5796 | -672.0 | -607.6 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -24.92 | 48.65 | -16.23 | 154.12 | 0.5832 | -676.0 | -504.5 | |
| 0.00 | 2.79 | 0.00 | 1.69 | -24.46 | 48.53 | -16.35 | 153.59 | 0.5781 | -659.0 | -558.2 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -24.11 | 48.27 | -16.61 | 152.93 | 0.5755 | -463.0 | -465.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
