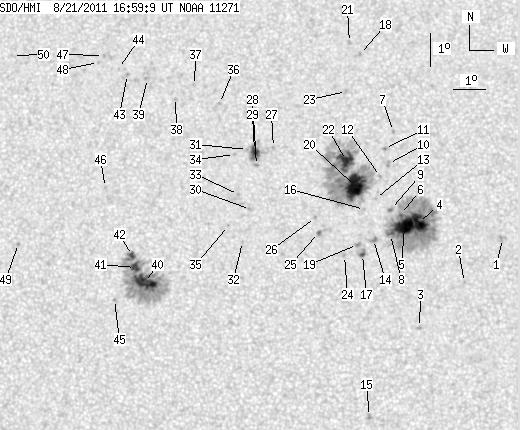

SDO HMI 2011-08-21 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.04 | 638.76 | 58.35 | 321.39 | 16.22 | 61.49 | -1.18 | 297.10 | 0.1742 | -386.4 | -171.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-21 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.95 | 0.00 | 1.99 | 15.48 | 67.31 | 4.64 | 332.47 | 0.1694 | -892.0 | -735.5 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 14.14 | 66.09 | 3.42 | 335.38 | 0.1395 | -831.0 | -597.4 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 12.78 | 64.67 | 2.00 | 341.62 | 0.1085 | -1088.0 | -850.6 | |
| 14.65 | 207.09 | 7.36 | 103.93 | 15.99 | 64.67 | 2.00 | 348.02 | 0.1623 | -1316.9 | -477.9 | |
| 19.95 | -4.00 | 10.01 | -4.00 | 15.86 | 64.23 | 1.56 | 350.49 | 0.1588 | -1431.2 | 999999 | |
| 0.90 | -4.00 | 0.45 | -4.00 | 16.23 | 64.10 | 1.43 | 351.59 | 0.1648 | -614.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.79 | 63.90 | 1.23 | 354.38 | 0.2081 | -859.0 | -631.9 | |
| 0.54 | -4.00 | 0.27 | -4.00 | 15.62 | 63.78 | 1.11 | 352.97 | 0.1535 | -909.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 16.39 | 63.79 | 1.12 | 353.53 | 0.1667 | -970.0 | -822.5 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 17.80 | 63.73 | 1.06 | 354.67 | 0.1909 | -728.0 | -548.6 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 18.27 | 63.61 | 0.94 | 355.49 | 0.1987 | 1007.0 | 644.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 17.40 | 63.48 | 0.81 | 355.79 | 0.1837 | -735.0 | -494.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.73 | 63.31 | 0.64 | 356.39 | 0.1718 | -853.0 | -612.4 | |
| 0.00 | 3.95 | 0.00 | 1.98 | 15.47 | 63.25 | 0.58 | 356.27 | 0.1500 | -1148.0 | -937.6 | |
| 0.00 | 2.34 | 0.00 | 1.16 | 10.07 | 63.11 | 0.44 | 352.19 | 0.0562 | -1024.0 | -816.1 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 16.39 | 62.97 | 0.30 | 358.28 | 0.1657 | -839.0 | -617.0 | |
| 1.89 | 6.83 | 0.94 | 3.42 | 15.01 | 62.90 | 0.23 | 358.42 | 0.1418 | -1080.2 | -837.7 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 21.19 | 62.81 | 0.14 | 359.46 | 0.2480 | -957.0 | -776.0 | |
| 0.00 | 2.61 | 0.00 | 1.31 | 15.31 | 62.74 | 0.07 | 359.51 | 0.1470 | -830.0 | -738.0 | |
| 31.10 | 208.88 | 15.65 | 105.27 | 17.10 | 62.68 | 0.01 | 359.94 | 0.1779 | -1302.6 | -395.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 21.57 | 62.49 | -0.18 | 0.67 | 0.2544 | -910.0 | -608.1 | |
| 16.45 | -20.00 | 8.30 | -20.00 | 17.90 | 62.40 | -0.27 | 1.37 | 0.1917 | -1062.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.04 | 62.39 | -0.28 | 1.15 | 0.2284 | -788.0 | -611.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 14.98 | 62.34 | -0.33 | 2.29 | 0.1413 | -1048.0 | -830.1 | |
| 0.36 | 2.43 | 0.18 | 1.22 | 15.68 | 61.52 | -1.15 | 7.23 | 0.1546 | -996.2 | -819.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 16.14 | 61.42 | -1.25 | 7.43 | 0.1628 | -808.0 | -579.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 18.29 | 60.06 | -2.61 | 12.32 | 0.2033 | -734.0 | -573.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 17.73 | 59.53 | -3.14 | 15.50 | 0.1961 | 972.0 | 777.0 | |
| 4.67 | 16.90 | 2.36 | 8.55 | 18.20 | 59.46 | -3.21 | 15.19 | 0.2041 | 1017.4 | 613.9 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 16.38 | 59.36 | -3.31 | 18.56 | 0.1747 | 686.0 | 529.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.23 | 59.23 | -3.44 | 16.15 | 0.2056 | 899.0 | 732.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.39 | 59.13 | -3.54 | 21.93 | 0.1602 | 861.0 | 669.4 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 16.84 | 58.97 | -3.70 | 19.65 | 0.1843 | 857.0 | 672.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 18.07 | 58.82 | -3.85 | 18.21 | 0.2051 | 989.0 | 765.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 15.88 | 58.68 | -3.99 | 23.18 | 0.1709 | 894.0 | 699.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.65 | 58.30 | -4.37 | 17.99 | 0.2334 | 972.0 | 737.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 20.20 | 57.48 | -5.19 | 20.24 | 0.2468 | 523.0 | 489.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 19.82 | 56.87 | -5.80 | 22.97 | 0.2445 | 606.0 | 648.0 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 20.40 | 55.94 | -6.73 | 25.13 | 0.2598 | 880.0 | 702.3 | |
| 17.08 | 137.79 | 8.58 | 69.26 | 14.11 | 56.07 | -6.60 | 41.42 | 0.1692 | 1336.9 | 550.1 | |
| 5.39 | -40.00 | 2.71 | -40.00 | 14.56 | 55.78 | -6.89 | 40.88 | 0.1783 | 1123.6 | 999999 | |
| 3.06 | -40.00 | 1.54 | -40.00 | 14.93 | 55.67 | -7.00 | 39.96 | 0.1842 | 923.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 20.51 | 55.28 | -7.39 | 27.00 | 0.2664 | 1064.0 | 813.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 20.70 | 54.98 | -7.69 | 27.60 | 0.2714 | 796.0 | 633.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.58 | 55.15 | -7.52 | 47.34 | 0.1739 | 739.0 | 530.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.00 | 54.73 | -7.94 | 36.80 | 0.2215 | 806.0 | 599.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 21.09 | 54.47 | -8.20 | 28.38 | 0.2813 | 795.0 | 694.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 20.87 | 54.32 | -8.35 | 29.23 | 0.2793 | 922.0 | 677.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 15.23 | 52.03 | -10.64 | 50.48 | 0.2319 | 825.0 | 647.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 21.04 | 51.47 | -11.20 | 36.34 | 0.3072 | 678.0 | 437.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
