SDO HMI 2011-08-21 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.94 | 316.95 | 53.99 | 180.27 | -21.10 | 53.45 | -9.22 | 162.38 | 0.4942 | -35.0 | -92.5 | |
|
previous
or next observation for the same group /

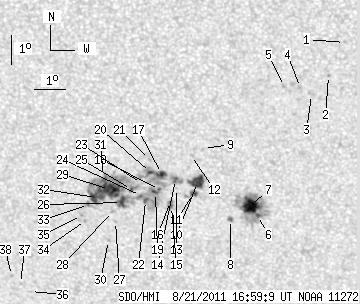

back to the solar disc SDO HMI 2011-08-21 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | -15.94 | 59.59 | -3.08 | 172.42 | 0.3931 | 648.0 | 504.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -17.04 | 59.06 | -3.61 | 171.57 | 0.4117 | 865.0 | 702.0 | |
| 0.00 | 2.25 | 0.00 | 1.23 | -17.67 | 58.51 | -4.16 | 170.56 | 0.4230 | 687.0 | 600.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.44 | 58.16 | -4.51 | 169.69 | 0.4204 | 819.0 | 691.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.42 | 57.65 | -5.02 | 168.54 | 0.4215 | 844.0 | 665.0 | |
| 1.71 | 71.37 | 0.97 | 40.46 | -21.81 | 56.63 | -6.04 | 168.49 | 0.4915 | 643.4 | 394.7 | |
| 17.26 | -6.00 | 9.78 | -6.00 | -21.46 | 56.41 | -6.26 | 167.93 | 0.4870 | 1127.7 | 999999 | |
| 0.81 | 2.43 | 0.46 | 1.38 | -21.96 | 55.73 | -6.94 | 166.91 | 0.4966 | 816.7 | 591.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.54 | 54.97 | -7.70 | 164.13 | 0.4637 | 426.0 | 355.3 | |
| 12.94 | 14.92 | 7.31 | 8.42 | -20.70 | 54.71 | -7.96 | 164.35 | 0.4819 | 911.3 | 585.8 | |
| 2.79 | 5.66 | 1.58 | 3.21 | -21.08 | 54.56 | -8.11 | 164.30 | 0.4881 | 748.4 | 541.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -19.78 | 54.57 | -8.10 | 163.50 | 0.4690 | 669.0 | 458.0 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -20.92 | 54.01 | -8.66 | 163.19 | 0.4881 | 210.0 | 142.3 | |
| 2.07 | 195.94 | 1.17 | 111.67 | -20.61 | 54.00 | -8.67 | 162.97 | 0.4837 | 685.6 | -326.4 | |
| 1.26 | 4.76 | 0.72 | 2.72 | -21.54 | 53.81 | -8.86 | 163.22 | 0.4980 | 785.4 | 675.0 | |
| 0.36 | -15.00 | 0.20 | -15.00 | -21.37 | 53.79 | -8.88 | 163.07 | 0.4956 | 879.0 | 999999 | |
| 5.21 | -14.00 | 2.95 | -14.00 | -20.41 | 53.55 | -9.12 | 162.01 | 0.4829 | 826.2 | 999999 | |
| 1.26 | -14.00 | 0.71 | -14.00 | -20.96 | 53.45 | -9.22 | 162.20 | 0.4913 | -662.1 | 999999 | |
| 1.89 | -14.00 | 1.07 | -14.00 | -21.07 | 53.31 | -9.36 | 162.02 | 0.4935 | -728.5 | 999999 | |
| 1.62 | -14.00 | 0.91 | -14.00 | -20.39 | 53.19 | -9.48 | 161.33 | 0.4842 | 650.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -19.94 | 53.19 | -9.48 | 161.01 | 0.4778 | -853.0 | -683.1 | |
| 2.07 | -14.00 | 1.18 | -14.00 | -21.35 | 52.97 | -9.70 | 161.59 | 0.4992 | -744.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -20.77 | 52.87 | -9.80 | 161.02 | 0.4913 | -319.0 | -305.3 | |
| 0.90 | -14.00 | 0.51 | -14.00 | -21.18 | 52.81 | -9.86 | 161.21 | 0.4975 | -918.0 | 999999 | |
| 1.62 | -14.00 | 0.92 | -14.00 | -20.98 | 52.53 | -10.14 | 160.56 | 0.4960 | -773.1 | 999999 | |
| 5.66 | -14.00 | 3.24 | -14.00 | -21.44 | 52.17 | -10.50 | 160.26 | 0.5043 | -850.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.10 | 51.92 | -10.75 | 160.30 | 0.5149 | -664.0 | -497.3 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -21.76 | 51.84 | -10.83 | 159.93 | 0.5105 | -641.0 | -516.1 | |
| 24.54 | -14.00 | 14.02 | -14.00 | -21.00 | 51.80 | -10.87 | 159.30 | 0.5001 | -1151.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -22.77 | 51.63 | -11.04 | 160.29 | 0.5257 | -623.0 | -462.6 | |
| 1.08 | -14.00 | 0.61 | -14.00 | -20.59 | 51.63 | -11.04 | 158.69 | 0.4952 | -405.8 | 999999 | |
| 8.54 | -14.00 | 4.90 | -14.00 | -21.29 | 51.35 | -11.32 | 158.74 | 0.5065 | -953.5 | 999999 | |
| 1.35 | -14.00 | 0.78 | -14.00 | -21.54 | 51.06 | -11.61 | 158.45 | 0.5115 | -650.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -22.09 | 50.92 | -11.75 | 158.63 | 0.5200 | -608.0 | -541.6 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -21.92 | 50.80 | -11.87 | 158.30 | 0.5183 | -752.0 | -663.9 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -24.65 | 48.80 | -13.87 | 157.26 | 0.5660 | -455.0 | -460.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -24.37 | 48.49 | -14.18 | 156.60 | 0.5641 | -742.0 | -543.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -24.10 | 48.21 | -14.46 | 155.98 | 0.5622 | -615.0 | -527.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
