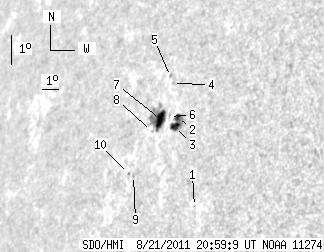

SDO HMI 2011-08-21 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.78 | 45.39 | 17.65 | 42.91 | 18.82 | 1.64 | -58.81 | 72.11 | 0.8529 | -565.4 | -182.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-21 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.63 | 16.51 | 4.64 | -55.81 | 74.68 | 0.8245 | -356.0 | -330.9 | |
| 2.52 | 11.95 | 2.33 | 11.04 | 19.08 | 2.37 | -58.09 | 71.76 | 0.8468 | -679.9 | -728.4 | |
| 5.03 | -2.00 | 4.66 | -2.00 | 18.80 | 2.34 | -58.11 | 72.10 | 0.8468 | -720.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.60 | 20.07 | 1.47 | -58.98 | 70.66 | 0.8551 | -453.0 | -446.3 | |
| 0.00 | 1.35 | 0.00 | 1.29 | 20.27 | 1.23 | -59.23 | 70.45 | 0.8573 | -332.0 | -252.1 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 19.07 | 1.88 | -58.57 | 71.81 | 0.8510 | -371.0 | -310.3 | |
| 11.23 | 26.24 | 10.66 | 25.04 | 18.92 | 1.40 | -59.05 | 72.01 | 0.8550 | -609.4 | 29.0 | |
| 0.00 | 1.08 | 0.00 | 1.03 | 18.51 | 1.07 | -59.38 | 72.52 | 0.8576 | -181.0 | -155.2 | |
| 0.00 | 1.53 | 0.00 | 1.47 | 17.09 | 0.71 | -59.74 | 74.20 | 0.8601 | -402.0 | -334.5 | |
| 0.00 | 1.08 | 0.00 | 1.05 | 17.12 | 0.38 | -60.08 | 74.18 | 0.8629 | -405.0 | -356.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
