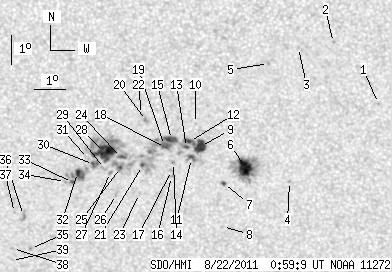

SDO HMI 2011-08-22 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.94 | 292.47 | 45.58 | 165.01 | -21.17 | 53.45 | -4.80 | 170.68 | 0.4800 | 20.4 | -150.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.27 | 60.64 | 2.39 | 185.09 | 0.4450 | 745.0 | 653.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -17.22 | 59.18 | 0.93 | 182.17 | 0.4111 | 857.0 | 730.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -17.38 | 58.07 | -0.18 | 179.58 | 0.4135 | 668.0 | 441.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.93 | 57.77 | -0.48 | 179.08 | 0.4848 | 707.0 | 550.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.92 | 57.11 | -1.14 | 177.42 | 0.4224 | 853.0 | 707.7 | |
| 16.90 | 49.62 | 9.52 | 27.97 | -21.45 | 56.34 | -1.91 | 176.26 | 0.4783 | 1135.9 | 499.5 | |
| 1.62 | 2.07 | 0.92 | 1.17 | -22.01 | 55.61 | -2.64 | 174.95 | 0.4877 | 592.7 | 616.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -23.51 | 55.55 | -2.70 | 175.12 | 0.5105 | 569.0 | 507.7 | |
| 10.70 | 82.62 | 5.99 | 46.42 | -20.74 | 54.88 | -3.37 | 173.26 | 0.4694 | 981.7 | 94.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.96 | 54.74 | -3.51 | 172.75 | 0.4575 | 779.0 | 583.7 | |
| 2.52 | 10.16 | 1.42 | 5.72 | -21.15 | 54.58 | -3.67 | 172.77 | 0.4763 | 697.9 | 298.1 | |
| 1.53 | -9.00 | 0.86 | -9.00 | -20.57 | 54.53 | -3.72 | 172.51 | 0.4674 | 1060.8 | 999999 | |
| 1.71 | -9.00 | 0.96 | -9.00 | -20.78 | 54.43 | -3.82 | 172.36 | 0.4708 | 757.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.30 | 53.99 | -4.26 | 171.67 | 0.4797 | 848.0 | 657.1 | |
| 7.10 | -9.00 | 3.98 | -9.00 | -20.51 | 53.95 | -4.30 | 171.33 | 0.4677 | 911.8 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -21.78 | 53.91 | -4.34 | 171.68 | 0.4872 | 584.0 | 502.7 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -21.57 | 53.92 | -4.33 | 171.62 | 0.4840 | 344.0 | 286.1 | |
| 1.35 | -9.00 | 0.76 | -9.00 | -20.78 | 53.75 | -4.50 | 171.02 | 0.4724 | -441.5 | 999999 | |
| 3.42 | -9.00 | 1.92 | -9.00 | -20.72 | 53.72 | -4.53 | 170.94 | 0.4715 | 325.9 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.80 | -19.87 | 53.16 | -5.09 | 169.50 | 0.4600 | -782.0 | -652.6 | |
| 1.44 | -9.00 | 0.81 | -9.00 | -21.41 | 52.97 | -5.28 | 169.77 | 0.4839 | -625.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.67 | 53.00 | -5.25 | 169.10 | 0.4574 | -802.0 | -625.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -22.38 | 52.84 | -5.41 | 169.89 | 0.4988 | -784.0 | -587.5 | |
| 2.43 | 69.85 | 1.37 | 39.37 | -21.15 | 52.30 | -5.95 | 168.37 | 0.4818 | -943.4 | -512.5 | |
| 1.26 | 17.71 | 0.71 | 10.03 | -21.49 | 52.25 | -6.00 | 168.44 | 0.4872 | -856.5 | -604.8 | |
| 0.00 | 2.34 | 0.00 | 1.34 | -22.43 | 52.08 | -6.17 | 168.53 | 0.5016 | -779.0 | -605.8 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -21.67 | 51.92 | -6.33 | 167.89 | 0.4908 | -760.0 | -571.0 | |
| 22.12 | -24.00 | 12.48 | -24.00 | -20.98 | 51.75 | -6.50 | 167.26 | 0.4812 | -1135.7 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.63 | -21.53 | 51.72 | -6.53 | 167.48 | 0.4894 | -466.0 | -539.5 | |
| 2.07 | 5.03 | 1.17 | 2.85 | -21.40 | 51.37 | -6.88 | 166.75 | 0.4887 | -914.0 | -887.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.20 | 51.22 | -7.03 | 166.36 | 0.4862 | -704.0 | -591.9 | |
| 3.15 | 19.69 | 1.79 | 11.22 | -21.68 | 50.83 | -7.42 | 165.91 | 0.4948 | -1088.1 | -820.0 | |
| 1.62 | -32.00 | 0.92 | -32.00 | -22.03 | 50.65 | -7.60 | 165.76 | 0.5006 | -709.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -22.00 | 50.42 | -7.83 | 165.33 | 0.5010 | -520.0 | -502.3 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -24.38 | 49.10 | -9.15 | 164.38 | 0.5403 | -816.0 | -717.4 | |
| 0.00 | 4.49 | 0.00 | 2.61 | -23.22 | 48.94 | -9.31 | 163.47 | 0.5244 | -796.0 | -661.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -23.12 | 48.65 | -9.60 | 162.92 | 0.5243 | -645.0 | -534.6 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.39 | 48.49 | -9.76 | 163.41 | 0.5429 | -679.0 | -558.4 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -24.82 | 48.42 | -9.83 | 163.55 | 0.5492 | -563.0 | -498.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
