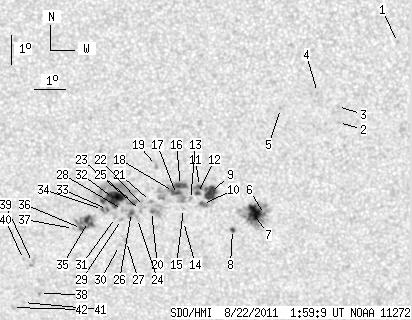

SDO HMI 2011-08-22 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.40 | 271.57 | 49.79 | 153.06 | -21.17 | 53.37 | -4.33 | 171.60 | 0.4790 | -28.5 | -109.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | -15.71 | 60.86 | 3.16 | 187.84 | 0.3901 | 693.0 | 460.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.36 | 59.02 | 1.32 | 182.92 | 0.4295 | 625.0 | 617.7 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -17.82 | 58.98 | 1.28 | 182.91 | 0.4210 | 749.0 | 629.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.35 | 58.34 | 0.64 | 181.49 | 0.4131 | 806.0 | 614.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.89 | 57.16 | -0.54 | 178.78 | 0.4216 | 815.0 | 644.0 | |
| 0.99 | 52.87 | 0.56 | 29.79 | -21.49 | 56.63 | -1.07 | 177.91 | 0.4782 | 777.5 | 507.5 | |
| 16.18 | -6.00 | 9.12 | -6.00 | -21.45 | 56.27 | -1.43 | 177.21 | 0.4779 | 1129.6 | 999999 | |
| 2.07 | 2.34 | 1.17 | 1.32 | -22.01 | 55.58 | -2.12 | 175.94 | 0.4870 | 578.1 | 588.3 | |
| 13.40 | 25.17 | 7.50 | 14.10 | -20.74 | 54.88 | -2.82 | 174.35 | 0.4684 | 948.2 | 753.5 | |
| 2.43 | 4.68 | 1.37 | 2.63 | -21.15 | 54.62 | -3.09 | 173.91 | 0.4752 | 707.5 | 348.1 | |
| 1.89 | -9.00 | 1.06 | -9.00 | -20.53 | 54.53 | -3.17 | 173.59 | 0.4659 | 1038.5 | 999999 | |
| 1.71 | -9.00 | 0.96 | -9.00 | -20.77 | 54.46 | -3.24 | 173.51 | 0.4697 | 792.6 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -20.98 | 54.23 | -3.47 | 173.11 | 0.4733 | 712.0 | 540.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.74 | 53.98 | -3.72 | 172.84 | 0.4854 | 612.0 | 485.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -21.29 | 53.99 | -3.71 | 172.74 | 0.4785 | 698.0 | 548.5 | |
| 6.38 | 35.60 | 3.57 | 19.97 | -20.50 | 53.92 | -3.79 | 172.35 | 0.4666 | 942.1 | 84.9 | |
| 1.89 | -16.00 | 1.06 | -16.00 | -20.81 | 53.78 | -3.92 | 172.17 | 0.4716 | -428.0 | 999999 | |
| 3.60 | -16.00 | 2.02 | -16.00 | -20.71 | 53.68 | -4.02 | 171.95 | 0.4703 | 333.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -19.83 | 53.16 | -4.54 | 170.59 | 0.4580 | -853.0 | -697.5 | |
| 0.90 | 13.04 | 0.51 | 7.36 | -21.41 | 52.94 | -4.76 | 170.76 | 0.4825 | -698.7 | -75.5 | |
| 0.00 | 2.25 | 0.00 | 1.27 | -21.06 | 52.92 | -4.78 | 170.59 | 0.4774 | -757.0 | -537.9 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -21.24 | 52.72 | -4.98 | 170.27 | 0.4805 | -558.0 | -667.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.38 | 52.59 | -5.11 | 170.06 | 0.4830 | -660.0 | -640.4 | |
| 0.00 | 2.43 | 0.00 | 1.38 | -21.65 | 52.48 | -5.22 | 169.96 | 0.4874 | -230.0 | -84.0 | |
| 2.25 | 71.75 | 1.27 | 40.40 | -21.10 | 52.33 | -5.37 | 169.47 | 0.4795 | -913.0 | -489.0 | |
| 2.52 | 5.03 | 1.42 | 2.85 | -21.45 | 52.29 | -5.41 | 169.53 | 0.4849 | -884.5 | -763.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.46 | 52.09 | -5.62 | 169.55 | 0.5005 | -753.0 | -624.4 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -21.35 | 52.00 | -5.70 | 168.94 | 0.4842 | -848.0 | -740.3 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -21.70 | 51.95 | -5.75 | 168.99 | 0.4895 | -779.0 | -569.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -22.60 | 51.85 | -5.85 | 169.18 | 0.5033 | -577.0 | -446.9 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.63 | 51.76 | -5.94 | 168.60 | 0.4891 | -616.0 | -503.0 | |
| 22.12 | -25.00 | 12.47 | -25.00 | -20.97 | 51.72 | -5.98 | 168.24 | 0.4794 | -1121.1 | 999999 | |
| 1.17 | 4.77 | 0.66 | 2.70 | -21.36 | 51.51 | -6.19 | 168.01 | 0.4858 | -919.9 | -795.5 | |
| 1.17 | -33.00 | 0.66 | -33.00 | -21.36 | 51.34 | -6.36 | 167.71 | 0.4863 | -929.5 | 999999 | |
| 5.84 | 22.84 | 3.33 | 13.00 | -21.78 | 50.86 | -6.84 | 167.02 | 0.4942 | -1021.2 | -772.2 | |
| 1.89 | -35.00 | 1.08 | -35.00 | -22.03 | 50.62 | -7.08 | 166.70 | 0.4987 | -674.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -22.03 | 50.36 | -7.34 | 166.23 | 0.4997 | -588.0 | -478.9 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.33 | 49.08 | -8.62 | 165.23 | 0.5376 | -824.0 | -693.0 | |
| 0.00 | 3.33 | 0.00 | 1.93 | -23.24 | 48.92 | -8.78 | 164.38 | 0.5227 | -704.0 | -693.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -23.14 | 48.63 | -9.07 | 163.83 | 0.5224 | -728.0 | -561.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -24.67 | 48.52 | -9.18 | 164.50 | 0.5444 | -652.0 | -465.0 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -24.85 | 48.13 | -9.57 | 163.98 | 0.5486 | -524.0 | -368.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
