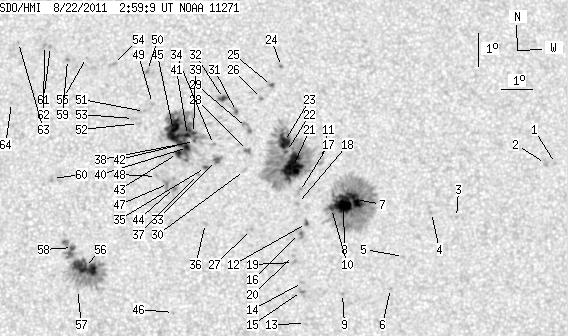

SDO HMI 2011-08-22 02:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.78 | 747.21 | 73.52 | 377.23 | 16.69 | 61.35 | 4.20 | 339.19 | 0.1912 | -216.0 | -124.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 02:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.10 | 71.12 | 13.97 | 307.93 | 0.2939 | -788.0 | -632.9 | |
| 0.00 | 3.51 | 0.00 | 1.81 | 17.11 | 70.80 | 13.65 | 308.57 | 0.2897 | -805.0 | -682.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 15.52 | 67.82 | 10.67 | 310.29 | 0.2349 | -776.0 | -597.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 15.69 | 67.03 | 9.88 | 312.98 | 0.2268 | -826.0 | -677.3 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 14.36 | 66.08 | 8.93 | 310.98 | 0.2001 | -701.0 | -458.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 13.39 | 65.63 | 8.48 | 308.39 | 0.1839 | -819.0 | -582.2 | |
| 11.60 | 207.18 | 5.87 | 104.77 | 16.13 | 64.63 | 7.47 | 322.15 | 0.2045 | -1263.7 | -428.0 | |
| 20.77 | -7.00 | 10.50 | -7.00 | 15.98 | 64.24 | 7.09 | 323.13 | 0.1986 | -1389.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 13.26 | 64.12 | 6.97 | 313.24 | 0.1628 | -919.0 | -720.1 | |
| 1.98 | -7.00 | 1.00 | -7.00 | 15.87 | 63.85 | 6.70 | 324.27 | 0.1931 | -1052.8 | 999999 | |
| 0.00 | 4.32 | 0.00 | 2.19 | 17.32 | 63.55 | 6.40 | 329.53 | 0.2108 | -325.0 | -299.4 | |
| 1.62 | 2.34 | 0.81 | 1.18 | 15.42 | 63.05 | 5.90 | 326.23 | 0.1789 | -948.7 | -839.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.36 | 62.94 | 5.79 | 314.02 | 0.1376 | -720.0 | -508.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.61 | 62.87 | 5.72 | 320.33 | 0.1525 | -859.0 | -687.0 | |
| 0.00 | 3.06 | 0.00 | 1.53 | 13.34 | 62.84 | 5.68 | 319.31 | 0.1485 | -1164.0 | -902.2 | |
| 0.00 | 6.29 | 0.00 | 3.17 | 15.11 | 62.82 | 5.67 | 326.27 | 0.1725 | -1039.0 | -782.0 | |
| 0.00 | 3.42 | 0.00 | 1.72 | 16.40 | 62.85 | 5.70 | 329.99 | 0.1914 | -1007.0 | -878.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 16.03 | 62.78 | 5.63 | 329.29 | 0.1854 | -1119.0 | -851.2 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 14.23 | 62.61 | 5.45 | 324.13 | 0.1580 | -886.0 | -780.5 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 14.44 | 62.61 | 5.46 | 324.91 | 0.1610 | -971.0 | -725.2 | |
| 30.30 | 198.01 | 15.32 | 100.17 | 17.14 | 62.65 | 5.50 | 332.73 | 0.2008 | -1308.8 | -469.9 | |
| 0.99 | -21.00 | 0.50 | -21.00 | 17.64 | 62.48 | 5.32 | 334.59 | 0.2070 | -1111.5 | 999999 | |
| 12.77 | -21.00 | 6.47 | -21.00 | 17.95 | 62.42 | 5.27 | 335.47 | 0.2114 | -1075.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.27 | 62.40 | 5.25 | 339.64 | 0.2477 | -948.0 | -765.9 | |
| 0.45 | 1.71 | 0.23 | 0.87 | 19.69 | 62.06 | 4.90 | 339.99 | 0.2364 | -1081.2 | -881.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 19.28 | 61.72 | 4.57 | 340.65 | 0.2281 | -1001.0 | -758.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.25 | 61.31 | 4.16 | 334.24 | 0.1616 | -744.0 | -570.6 | |
| 0.00 | 3.60 | 0.00 | 1.82 | 17.68 | 61.23 | 4.08 | 340.04 | 0.1995 | -1188.0 | -868.3 | |
| 0.00 | 6.56 | 0.00 | 3.33 | 18.39 | 61.22 | 4.07 | 341.31 | 0.2109 | -349.0 | -696.7 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 17.06 | 61.12 | 3.97 | 339.39 | 0.1890 | -503.0 | -447.9 | |
| 1.35 | 2.88 | 0.68 | 1.46 | 18.89 | 60.91 | 3.76 | 343.36 | 0.2174 | -916.9 | -766.1 | |
| 3.24 | 4.86 | 1.64 | 2.47 | 19.29 | 60.50 | 3.35 | 345.57 | 0.2222 | -1004.6 | -822.6 | |
| 3.60 | 6.20 | 1.81 | 3.13 | 17.38 | 60.24 | 3.09 | 344.18 | 0.1894 | -926.8 | -555.6 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 17.87 | 60.15 | 3.00 | 345.30 | 0.1972 | -369.0 | -322.9 | |
| 1.26 | 2.61 | 0.63 | 1.31 | 17.16 | 59.89 | 2.73 | 345.61 | 0.1843 | -803.8 | -721.3 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 15.44 | 59.86 | 2.71 | 342.89 | 0.1556 | 766.0 | 549.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 16.95 | 59.66 | 2.51 | 346.47 | 0.1798 | 561.0 | 315.6 | |
| 0.90 | 130.47 | 0.45 | 65.94 | 17.97 | 59.55 | 2.40 | 348.27 | 0.1964 | 714.7 | 453.1 | |
| 1.89 | -38.00 | 0.95 | -38.00 | 18.22 | 59.52 | 2.37 | 348.66 | 0.2005 | 653.0 | 999999 | |
| 2.61 | -38.00 | 1.32 | -38.00 | 17.78 | 59.32 | 2.17 | 349.16 | 0.1926 | 1053.6 | 999999 | |
| 1.98 | -38.00 | 1.00 | -38.00 | 18.15 | 59.33 | 2.17 | 349.50 | 0.1988 | 997.6 | 999999 | |
| 2.25 | -38.00 | 1.13 | -38.00 | 17.88 | 59.10 | 1.95 | 350.33 | 0.1935 | 1216.2 | 999999 | |
| 3.51 | -38.00 | 1.77 | -38.00 | 17.60 | 59.00 | 1.85 | 350.56 | 0.1885 | 1109.4 | 999999 | |
| 0.00 | 5.31 | 0.00 | 2.67 | 16.55 | 58.90 | 1.74 | 350.10 | 0.1704 | 973.0 | 675.8 | |
| 17.80 | -38.00 | 9.00 | -38.00 | 18.31 | 58.88 | 1.73 | 351.74 | 0.2003 | 1291.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.73 | 58.83 | 1.68 | 344.16 | 0.1054 | 785.0 | 565.9 | |
| 0.00 | 6.65 | 0.00 | 3.35 | 16.68 | 58.71 | 1.56 | 351.26 | 0.1720 | 932.0 | 886.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.89 | 58.33 | 1.18 | 353.52 | 0.1748 | 693.0 | 650.7 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 19.15 | 58.22 | 1.06 | 355.26 | 0.2133 | 914.0 | 686.0 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 20.18 | 58.06 | 0.91 | 356.28 | 0.2306 | 992.0 | 792.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 18.90 | 57.96 | 0.81 | 356.33 | 0.2087 | 776.0 | 676.5 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 18.53 | 57.76 | 0.61 | 357.11 | 0.2022 | 875.0 | 668.8 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 18.69 | 57.60 | 0.45 | 357.89 | 0.2047 | 758.0 | 730.2 | |
| 0.00 | 3.51 | 0.00 | 1.79 | 20.36 | 56.96 | -0.19 | 0.76 | 0.2333 | 835.0 | 667.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 20.58 | 56.09 | -1.06 | 4.21 | 0.2376 | 749.0 | 581.1 | |
| 22.48 | 98.10 | 11.23 | 48.99 | 14.10 | 56.06 | -1.09 | 8.41 | 0.1267 | 1235.7 | 574.0 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 13.43 | 55.85 | -1.30 | 11.07 | 0.1158 | 140.0 | 100.2 | |
| 2.43 | -56.00 | 1.21 | -56.00 | 14.71 | 55.68 | -1.47 | 10.38 | 0.1383 | 969.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 20.52 | 55.47 | -1.68 | 6.66 | 0.2375 | 1127.0 | 892.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 16.83 | 55.03 | -2.12 | 11.63 | 0.1763 | 944.0 | 877.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 20.92 | 54.92 | -2.24 | 8.57 | 0.2456 | 1030.0 | 905.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 20.95 | 54.72 | -2.43 | 9.28 | 0.2466 | 1061.0 | 851.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 21.04 | 53.87 | -3.28 | 12.34 | 0.2507 | 663.0 | 499.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 19.17 | 53.69 | -3.46 | 15.06 | 0.2206 | 780.0 | 612.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
