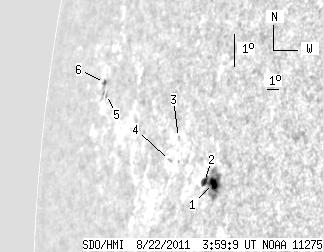

SDO HMI 2011-08-22 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.72 | 42.00 | 12.17 | 53.23 | 7.70 | 348.88 | -67.73 | 84.54 | 0.9206 | -394.8 | -275.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.31 | 34.98 | 6.18 | 40.83 | 7.37 | 351.21 | -65.39 | 85.09 | 0.9068 | -776.4 | -392.3 | |
| 3.51 | -1.00 | 4.19 | -1.00 | 7.35 | 350.54 | -66.07 | 85.05 | 0.9116 | -257.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.65 | 8.43 | 348.09 | -68.52 | 83.69 | 0.9277 | -522.0 | -341.2 | |
| 0.00 | 1.08 | 0.00 | 1.45 | 7.67 | 347.60 | -69.01 | 84.47 | 0.9312 | -265.0 | -157.2 | |
| 0.00 | 1.80 | 0.00 | 3.51 | 8.88 | 340.47 | -76.13 | 82.59 | 0.9684 | 374.0 | 327.6 | |
| 0.90 | 2.88 | 1.80 | 5.79 | 9.20 | 339.99 | -76.61 | 82.23 | 0.9703 | 167.2 | 67.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
