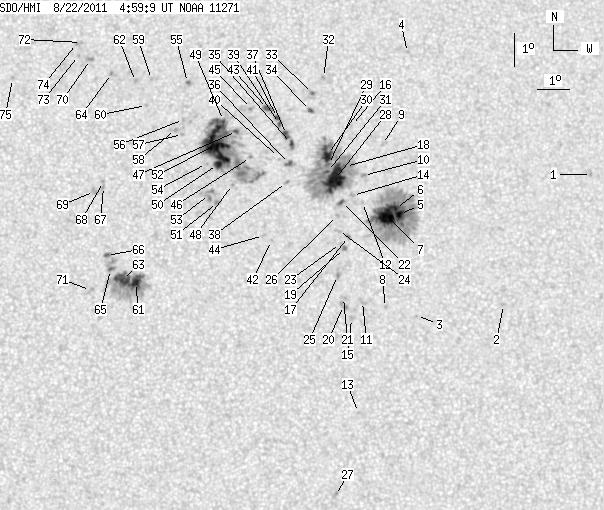

SDO HMI 2011-08-22 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.68 | 789.89 | 75.72 | 399.22 | 16.77 | 61.10 | 5.04 | 335.22 | 0.1980 | -137.0 | -128.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.70 | 17.14 | 70.95 | 14.89 | 306.37 | 0.3064 | -854.0 | -683.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 13.23 | 67.85 | 11.80 | 299.39 | 0.2295 | -877.0 | -720.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.95 | 65.09 | 9.03 | 304.79 | 0.1871 | -783.0 | -616.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 21.06 | 65.20 | 9.14 | 328.87 | 0.2880 | -802.0 | -756.5 | |
| 3.87 | 198.67 | 1.96 | 100.72 | 16.05 | 64.67 | 8.62 | 317.96 | 0.2160 | -1390.0 | -481.6 | |
| 0.99 | -5.00 | 0.50 | -5.00 | 16.24 | 64.56 | 8.50 | 318.94 | 0.2170 | -1275.7 | 999999 | |
| 17.00 | -5.00 | 8.61 | -5.00 | 16.00 | 64.26 | 8.20 | 319.17 | 0.2107 | -1473.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 13.22 | 64.12 | 8.07 | 308.98 | 0.1765 | -918.0 | -761.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 18.22 | 64.23 | 8.17 | 325.54 | 0.2397 | 892.0 | 569.5 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 17.27 | 63.58 | 7.52 | 325.29 | 0.2204 | -883.0 | -506.0 | |
| 0.00 | 3.69 | 0.00 | 1.85 | 13.41 | 63.41 | 7.35 | 312.42 | 0.1693 | -899.0 | -681.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.44 | 63.51 | 7.45 | 323.16 | 0.2085 | -942.0 | -691.1 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 10.03 | 63.19 | 7.13 | 294.20 | 0.1347 | -857.0 | -656.8 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.66 | 63.20 | 7.14 | 324.94 | 0.2084 | -436.0 | -308.1 | |
| 0.00 | 2.88 | 0.00 | 1.44 | 12.90 | 63.04 | 6.99 | 311.44 | 0.1589 | -808.0 | -598.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 18.82 | 63.26 | 7.20 | 330.17 | 0.2395 | 709.0 | 526.3 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 15.40 | 63.03 | 6.97 | 321.68 | 0.1896 | -1196.0 | -935.8 | |
| 0.45 | 195.34 | 0.23 | 99.01 | 17.56 | 63.01 | 6.95 | 328.06 | 0.2192 | -832.2 | -470.1 | |
| 0.00 | 2.79 | 0.00 | 1.40 | 15.04 | 62.89 | 6.83 | 320.97 | 0.1833 | -1094.0 | -875.8 | |
| 0.00 | 4.32 | 0.00 | 2.17 | 13.30 | 62.81 | 6.75 | 314.29 | 0.1605 | -607.0 | -849.2 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 13.54 | 62.81 | 6.76 | 315.36 | 0.1635 | -948.0 | -706.5 | |
| 1.44 | 2.43 | 0.73 | 1.23 | 16.48 | 62.84 | 6.79 | 325.78 | 0.2024 | -979.3 | -1056.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.19 | 62.77 | 6.71 | 322.00 | 0.1840 | -800.0 | -637.2 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 15.59 | 62.72 | 6.66 | 323.55 | 0.1889 | -784.0 | -677.7 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 14.22 | 62.64 | 6.59 | 318.90 | 0.1699 | -1049.0 | -872.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.05 | 62.70 | 6.64 | 325.07 | 0.1951 | -1096.0 | -863.2 | |
| 0.00 | 2.70 | 0.00 | 1.34 | 7.53 | 62.43 | 6.38 | 275.72 | 0.1112 | -665.0 | -426.4 | |
| 32.74 | -18.00 | 16.59 | -18.00 | 17.16 | 62.64 | 6.59 | 328.41 | 0.2102 | -1294.8 | 999999 | |
| 0.27 | -18.00 | 0.14 | -18.00 | 17.63 | 62.47 | 6.41 | 330.25 | 0.2154 | -1269.7 | 999999 | |
| 10.34 | -18.00 | 5.25 | -18.00 | 17.94 | 62.45 | 6.39 | 331.05 | 0.2198 | -1093.3 | 999999 | |
| 1.44 | -18.00 | 0.73 | -18.00 | 17.41 | 62.43 | 6.37 | 329.87 | 0.2119 | -1031.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 20.33 | 62.41 | 6.36 | 335.92 | 0.2555 | -954.0 | -768.3 | |
| 0.45 | 1.44 | 0.23 | 0.74 | 19.83 | 62.03 | 5.98 | 336.35 | 0.2454 | -1035.0 | -910.6 | |
| 1.80 | 2.79 | 0.92 | 1.42 | 19.30 | 61.95 | 5.89 | 335.71 | 0.2367 | -954.0 | -825.5 | |
| 2.07 | 11.51 | 1.05 | 5.84 | 18.29 | 61.31 | 5.25 | 336.24 | 0.2166 | -998.1 | -833.0 | |
| 3.42 | 4.95 | 1.73 | 2.50 | 17.67 | 61.22 | 5.17 | 335.32 | 0.2064 | -886.4 | -440.5 | |
| 3.87 | -35.00 | 1.96 | -35.00 | 18.57 | 61.15 | 5.10 | 337.38 | 0.2199 | -923.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 17.09 | 61.11 | 5.05 | 334.51 | 0.1966 | -896.0 | -619.4 | |
| 1.26 | 4.95 | 0.64 | 2.51 | 18.91 | 60.94 | 4.88 | 338.83 | 0.2239 | -985.6 | -897.5 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 17.86 | 60.88 | 4.82 | 337.16 | 0.2070 | -197.0 | -355.3 | |
| 1.89 | -39.00 | 0.96 | -39.00 | 19.10 | 60.88 | 4.82 | 339.37 | 0.2265 | -960.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.31 | 60.59 | 4.54 | 332.41 | 0.1654 | 762.0 | 632.8 | |
| 3.42 | 5.58 | 1.74 | 2.84 | 19.38 | 60.57 | 4.51 | 341.04 | 0.2292 | -990.9 | -735.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 15.47 | 60.34 | 4.29 | 334.14 | 0.1659 | 887.0 | 686.5 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 19.39 | 60.05 | 3.99 | 343.07 | 0.2266 | -998.0 | -656.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 17.87 | 59.98 | 3.93 | 341.06 | 0.2017 | -589.0 | -563.1 | |
| 1.71 | 170.07 | 0.87 | 86.00 | 18.68 | 59.55 | 3.50 | 344.17 | 0.2126 | 695.8 | 270.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 17.04 | 59.39 | 3.34 | 342.42 | 0.1850 | 270.0 | 301.4 | |
| 1.08 | -47.00 | 0.55 | -47.00 | 19.02 | 59.14 | 3.08 | 346.35 | 0.2165 | 521.3 | 999999 | |
| 4.59 | -47.00 | 2.32 | -47.00 | 17.66 | 58.93 | 2.87 | 345.63 | 0.1931 | 1282.5 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.45 | 16.49 | 58.91 | 2.85 | 343.98 | 0.1736 | 976.0 | 787.6 | |
| 39.30 | -47.00 | 19.88 | -47.00 | 18.28 | 58.90 | 2.85 | 346.52 | 0.2033 | 1264.1 | 999999 | |
| 0.00 | 8.00 | 0.00 | 4.03 | 16.74 | 58.66 | 2.60 | 345.68 | 0.1766 | 920.0 | 901.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 17.69 | 58.58 | 2.52 | 347.36 | 0.1922 | 959.0 | 806.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 20.21 | 58.00 | 1.94 | 352.11 | 0.2328 | 1090.0 | 926.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 19.06 | 57.86 | 1.80 | 351.95 | 0.2131 | 743.0 | 659.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 18.59 | 57.82 | 1.76 | 351.78 | 0.2051 | 1048.0 | 807.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 18.75 | 57.60 | 1.54 | 352.91 | 0.2072 | 1028.0 | 892.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 20.30 | 56.84 | 0.78 | 356.84 | 0.2326 | 842.0 | 681.9 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 19.49 | 56.67 | 0.62 | 357.33 | 0.2186 | 862.0 | 609.5 | |
| 4.86 | 85.17 | 2.42 | 42.51 | 14.05 | 56.31 | 0.25 | 358.00 | 0.1244 | 1378.3 | 601.7 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 20.24 | 56.32 | 0.26 | 358.93 | 0.2312 | 890.0 | 743.2 | |
| 8.18 | -61.00 | 4.09 | -61.00 | 14.11 | 55.90 | -0.15 | 1.18 | 0.1254 | 1244.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 20.49 | 55.54 | -0.51 | 2.05 | 0.2356 | 1109.0 | 923.5 | |
| 1.62 | 8.63 | 0.81 | 4.32 | 14.44 | 55.53 | -0.53 | 3.91 | 0.1315 | 989.9 | 851.9 | |
| 1.62 | 2.88 | 0.81 | 1.44 | 14.87 | 55.40 | -0.65 | 4.57 | 0.1391 | 901.6 | 854.1 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 16.99 | 55.30 | -0.76 | 4.14 | 0.1758 | 911.0 | 684.7 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 17.14 | 55.30 | -0.76 | 4.07 | 0.1784 | 738.0 | 554.2 | |
| 0.00 | 3.96 | 0.00 | 1.99 | 16.83 | 55.02 | -1.04 | 5.77 | 0.1736 | 832.0 | 700.4 | |
| 0.00 | 2.79 | 0.00 | 1.42 | 20.93 | 54.86 | -1.20 | 4.61 | 0.2436 | 1122.0 | 902.6 | |
| 0.00 | 3.15 | 0.00 | 1.57 | 13.80 | 54.91 | -1.15 | 9.27 | 0.1216 | 612.0 | 464.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 21.46 | 54.56 | -1.49 | 5.53 | 0.2531 | 714.0 | 545.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 21.05 | 54.47 | -1.59 | 6.05 | 0.2463 | 917.0 | 663.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 21.43 | 54.40 | -1.66 | 6.14 | 0.2528 | 886.0 | 653.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 20.32 | 52.34 | -3.72 | 14.70 | 0.2406 | 652.0 | 616.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
