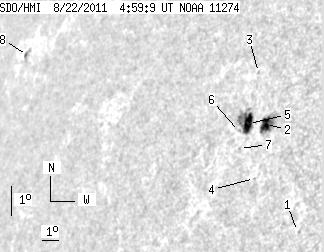

SDO HMI 2011-08-22 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.13 | 52.89 | 17.82 | 47.27 | 18.89 | 359.54 | -56.51 | 71.77 | 0.8286 | -595.9 | -156.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.35 | 15.81 | 5.25 | -50.80 | 75.19 | 0.7735 | -453.0 | -490.8 | |
| 8.63 | 19.43 | 7.19 | 16.14 | 18.89 | 2.33 | -53.72 | 71.59 | 0.8061 | -769.1 | -564.0 | |
| 0.00 | 0.72 | 0.00 | 0.62 | 20.43 | 1.17 | -54.88 | 69.84 | 0.8187 | -331.0 | -326.5 | |
| 0.00 | 0.90 | 0.00 | 0.74 | 17.21 | 2.49 | -53.57 | 73.67 | 0.8031 | -544.0 | -426.8 | |
| 12.50 | 25.72 | 10.63 | 21.97 | 18.84 | 1.42 | -54.63 | 71.76 | 0.8148 | -668.0 | -16.6 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 18.55 | 1.06 | -55.00 | 72.14 | 0.8180 | -245.0 | -213.3 | |
| 0.00 | 0.72 | 0.00 | 0.61 | 18.04 | 1.30 | -54.76 | 72.75 | 0.8153 | -254.0 | -207.9 | |
| 0.00 | 4.68 | 0.00 | 6.61 | 19.33 | 345.48 | -70.58 | 71.91 | 0.9377 | 264.0 | 228.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
