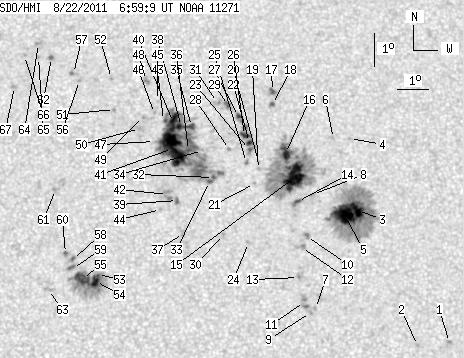

SDO HMI 2011-08-22 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177.47 | 820.19 | 89.90 | 415.47 | 17.00 | 60.87 | 5.91 | 331.88 | 0.2075 | 11.5 | -113.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.70 | 0.00 | 1.37 | 12.03 | 67.37 | 12.41 | 293.53 | 0.2302 | -883.0 | -748.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 11.96 | 66.35 | 11.39 | 294.95 | 0.2141 | -925.0 | -679.5 | |
| 9.26 | 179.26 | 4.71 | 91.16 | 16.13 | 64.64 | 9.68 | 314.98 | 0.2293 | -1283.8 | -463.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.35 | 64.50 | 9.54 | 321.75 | 0.2551 | 811.0 | 570.0 | |
| 26.53 | -3.00 | 13.48 | -3.00 | 16.01 | 64.22 | 9.25 | 315.85 | 0.2229 | -1363.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.36 | 63.98 | 9.02 | 323.28 | 0.2499 | 677.0 | 552.0 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 13.15 | 63.18 | 8.22 | 308.18 | 0.1779 | -873.0 | -751.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 16.64 | 63.22 | 8.26 | 320.97 | 0.2196 | -769.0 | -604.3 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 13.03 | 63.02 | 8.06 | 308.17 | 0.1745 | -886.0 | -739.8 | |
| 0.00 | 3.69 | 0.00 | 1.86 | 15.36 | 62.98 | 8.02 | 317.66 | 0.2006 | -961.0 | -836.5 | |
| 0.00 | 7.11 | 0.00 | 3.58 | 13.37 | 62.84 | 7.88 | 310.31 | 0.1757 | -902.0 | -840.9 | |
| 0.00 | 5.22 | 0.00 | 2.63 | 15.02 | 62.81 | 7.84 | 317.08 | 0.1945 | -826.0 | -805.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.11 | 62.68 | 7.72 | 314.03 | 0.1820 | -1003.0 | -882.3 | |
| 1.98 | 6.48 | 1.00 | 3.28 | 16.44 | 62.73 | 7.77 | 322.02 | 0.2117 | -1073.9 | -831.7 | |
| 32.02 | 191.76 | 16.26 | 97.44 | 17.18 | 62.67 | 7.71 | 324.38 | 0.2210 | -1290.8 | -481.0 | |
| 7.29 | -15.00 | 3.71 | -15.00 | 17.92 | 62.41 | 7.45 | 327.21 | 0.2288 | -1110.8 | 999999 | |
| 2.79 | 5.22 | 1.43 | 2.67 | 19.85 | 62.07 | 7.11 | 332.56 | 0.2539 | -1009.7 | -774.5 | |
| 1.71 | 2.97 | 0.87 | 1.52 | 19.44 | 62.06 | 7.10 | 331.82 | 0.2478 | -1014.8 | -717.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.44 | 61.53 | 6.56 | 329.21 | 0.2140 | -879.0 | -759.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.69 | 61.53 | 6.57 | 329.78 | 0.2177 | -539.0 | -446.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 17.01 | 61.38 | 6.42 | 328.66 | 0.2066 | -916.0 | -726.1 | |
| 2.43 | 19.25 | 1.23 | 9.78 | 18.28 | 61.27 | 6.31 | 332.14 | 0.2242 | -1067.8 | -802.7 | |
| 1.26 | -22.00 | 0.64 | -22.00 | 18.06 | 61.26 | 6.30 | 331.69 | 0.2209 | -1076.6 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 15.20 | 61.13 | 6.17 | 324.30 | 0.1786 | -655.0 | -415.3 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 17.66 | 61.15 | 6.19 | 331.19 | 0.2141 | -1041.0 | -810.0 | |
| 4.05 | -22.00 | 2.06 | -22.00 | 18.49 | 61.12 | 6.15 | 333.17 | 0.2263 | -1012.5 | 999999 | |
| 2.25 | 4.68 | 1.15 | 2.38 | 19.09 | 60.94 | 5.98 | 334.99 | 0.2340 | -882.2 | -812.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 18.07 | 60.62 | 5.66 | 334.17 | 0.2161 | 119.0 | 225.5 | |
| 0.00 | 4.23 | 0.00 | 2.16 | 19.43 | 60.63 | 5.67 | 336.75 | 0.2371 | -1128.0 | -897.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.45 | 60.35 | 5.39 | 328.65 | 0.1748 | 939.0 | 700.2 | |
| 0.00 | 3.60 | 0.00 | 1.83 | 19.53 | 60.28 | 5.32 | 338.20 | 0.2364 | -826.0 | -733.3 | |
| 0.90 | 226.30 | 0.45 | 114.58 | 17.21 | 60.08 | 5.12 | 334.51 | 0.1990 | -1016.2 | 219.4 | |
| 0.72 | -32.00 | 0.36 | -32.00 | 17.09 | 59.95 | 4.99 | 334.80 | 0.1962 | -1199.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.05 | 59.75 | 4.79 | 337.64 | 0.2097 | 251.0 | 163.0 | |
| 2.97 | -32.00 | 1.51 | -32.00 | 18.79 | 59.42 | 4.46 | 340.32 | 0.2196 | 579.9 | 999999 | |
| 1.71 | -32.00 | 0.87 | -32.00 | 18.05 | 59.31 | 4.34 | 339.54 | 0.2070 | 478.2 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.40 | 15.50 | 59.09 | 4.13 | 335.06 | 0.1653 | 630.0 | 704.3 | |
| 3.96 | -32.00 | 2.01 | -32.00 | 18.79 | 59.10 | 4.14 | 341.63 | 0.2178 | 729.6 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.49 | 16.51 | 58.92 | 3.96 | 338.33 | 0.1801 | 882.0 | 778.8 | |
| 11.42 | -32.00 | 5.80 | -32.00 | 18.92 | 58.85 | 3.88 | 342.87 | 0.2185 | 1114.7 | 999999 | |
| 44.07 | -32.00 | 22.30 | -32.00 | 18.12 | 58.80 | 3.83 | 341.87 | 0.2052 | 1362.2 | 999999 | |
| 0.00 | 7.83 | 0.00 | 3.94 | 16.70 | 58.61 | 3.65 | 340.27 | 0.1812 | 647.0 | 921.8 | |
| 0.45 | -32.00 | 0.23 | -32.00 | 18.98 | 58.53 | 3.56 | 344.29 | 0.2181 | 778.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 16.24 | 58.38 | 3.42 | 340.54 | 0.1725 | 933.0 | 716.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.61 | 58.35 | 3.39 | 345.78 | 0.2275 | 587.0 | 558.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 19.20 | 58.24 | 3.28 | 345.74 | 0.2204 | 790.0 | 658.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 18.34 | 58.22 | 3.26 | 344.73 | 0.2060 | 650.0 | 585.8 | |
| 0.00 | 3.78 | 0.00 | 1.93 | 20.23 | 58.00 | 3.04 | 347.79 | 0.2365 | 1059.0 | 857.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 19.11 | 57.89 | 2.92 | 347.13 | 0.2175 | 782.0 | 664.8 | |
| 0.00 | 3.33 | 0.00 | 1.69 | 18.74 | 57.75 | 2.79 | 347.31 | 0.2108 | 949.0 | 849.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 19.34 | 56.96 | 2.00 | 351.30 | 0.2183 | 902.0 | 768.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 20.30 | 56.87 | 1.91 | 352.30 | 0.2344 | 855.0 | 676.1 | |
| 0.81 | 78.34 | 0.40 | 39.11 | 14.26 | 56.37 | 1.41 | 349.39 | 0.1303 | 856.9 | 590.6 | |
| 4.95 | -53.00 | 2.47 | -53.00 | 14.04 | 56.31 | 1.35 | 349.56 | 0.1264 | 1327.3 | 999999 | |
| 12.50 | -53.00 | 6.24 | -53.00 | 14.14 | 55.90 | 0.94 | 352.76 | 0.1269 | 1215.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 20.24 | 55.84 | 0.88 | 356.43 | 0.2316 | 936.0 | 690.1 | |
| 0.00 | 3.42 | 0.00 | 1.74 | 20.46 | 55.64 | 0.68 | 357.27 | 0.2352 | 1056.0 | 777.1 | |
| 0.90 | 2.52 | 0.45 | 1.26 | 14.72 | 55.59 | 0.63 | 355.51 | 0.1364 | 956.5 | 856.9 | |
| 0.54 | 3.15 | 0.27 | 1.57 | 14.44 | 55.59 | 0.63 | 355.34 | 0.1317 | 980.5 | 987.6 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 14.90 | 55.37 | 0.41 | 357.13 | 0.1394 | 941.0 | 875.9 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 16.87 | 55.06 | 0.10 | 359.45 | 0.1732 | 958.0 | 717.0 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 20.96 | 54.93 | -0.03 | 0.11 | 0.2434 | 1020.0 | 922.0 | |
| 0.00 | 4.23 | 0.00 | 2.11 | 13.80 | 54.84 | -0.12 | 0.99 | 0.1201 | 802.0 | 662.0 | |
| 0.00 | 2.88 | 0.00 | 1.47 | 21.40 | 54.51 | -0.45 | 1.69 | 0.2510 | 810.0 | 625.8 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 20.96 | 54.51 | -0.45 | 1.74 | 0.2435 | 872.0 | 545.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 21.02 | 54.06 | -0.91 | 3.47 | 0.2449 | 751.0 | 649.3 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 20.05 | 53.74 | -1.22 | 5.05 | 0.2289 | 891.0 | 637.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
