SDO HMI 2011-08-22 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.98 | 235.13 | 39.88 | 132.13 | -21.18 | 53.36 | -1.05 | 177.99 | 0.4748 | 50.5 | -136.6 | |
|
previous
or next observation for the same group /

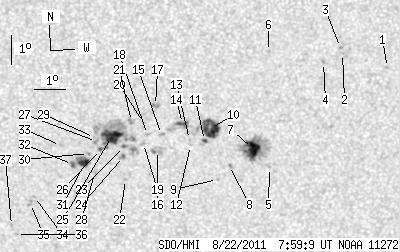

back to the solar disc SDO HMI 2011-08-22 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.70 | -18.70 | 60.51 | 6.10 | 193.12 | 0.4454 | 646.0 | 466.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.21 | 59.05 | 4.64 | 190.26 | 0.4333 | 650.0 | 461.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.01 | 58.98 | 4.57 | 190.19 | 0.4300 | 822.0 | 709.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.51 | 58.45 | 4.04 | 188.84 | 0.4363 | 819.0 | 727.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -22.09 | 56.78 | 2.36 | 184.50 | 0.4885 | 676.0 | 569.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -18.13 | 56.69 | 2.27 | 185.08 | 0.4270 | 785.0 | 608.6 | |
| 13.31 | 49.11 | 7.50 | 27.66 | -21.42 | 56.21 | 1.80 | 183.52 | 0.4778 | 1135.1 | 542.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -22.01 | 55.47 | 1.05 | 182.02 | 0.4862 | 841.0 | 626.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -22.50 | 55.08 | 0.66 | 181.24 | 0.4935 | 583.0 | 494.4 | |
| 22.22 | 30.13 | 12.43 | 16.85 | -20.73 | 54.84 | 0.43 | 180.86 | 0.4663 | 988.4 | 696.7 | |
| 1.62 | 2.25 | 0.91 | 1.26 | -21.15 | 54.65 | 0.23 | 180.46 | 0.4726 | 694.4 | 515.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -21.32 | 54.19 | -0.22 | 179.56 | 0.4753 | 679.0 | 532.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -21.11 | 54.16 | -0.25 | 179.49 | 0.4721 | 720.0 | 589.5 | |
| 4.59 | 14.12 | 2.56 | 7.89 | -20.56 | 53.93 | -0.48 | 179.03 | 0.4636 | 860.4 | 269.5 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -20.94 | 53.25 | -1.16 | 177.68 | 0.4698 | -851.0 | -581.7 | |
| 0.00 | 8.36 | 0.00 | 4.71 | -21.49 | 53.11 | -1.30 | 177.46 | 0.4784 | -83.0 | -192.2 | |
| 0.00 | 3.42 | 0.00 | 1.90 | -19.95 | 53.06 | -1.35 | 177.20 | 0.4546 | -747.0 | -649.1 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -20.94 | 52.79 | -1.62 | 176.77 | 0.4702 | -752.0 | -478.0 | |
| 0.00 | 2.25 | 0.00 | 1.26 | -21.25 | 52.66 | -1.75 | 176.55 | 0.4751 | -761.0 | -595.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -20.53 | 52.67 | -1.74 | 176.46 | 0.4639 | 196.0 | 240.9 | |
| 0.00 | 3.78 | 0.00 | 2.11 | -20.50 | 52.28 | -2.13 | 175.67 | 0.4638 | -533.0 | -577.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.50 | 52.05 | -2.36 | 175.57 | 0.4948 | -690.0 | -558.2 | |
| 1.17 | 10.61 | 0.66 | 5.98 | -21.36 | 52.01 | -2.41 | 175.28 | 0.4774 | -820.4 | -679.3 | |
| 1.26 | 2.52 | 0.71 | 1.42 | -21.70 | 52.00 | -2.41 | 175.34 | 0.4827 | -690.1 | -631.6 | |
| 17.18 | 61.34 | 9.65 | 34.41 | -21.02 | 51.62 | -2.79 | 174.46 | 0.4727 | -1158.2 | -570.0 | |
| 1.44 | -25.00 | 0.81 | -25.00 | -21.47 | 51.26 | -3.16 | 173.85 | 0.4802 | -815.1 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.57 | -21.19 | 51.13 | -3.28 | 173.54 | 0.4762 | -955.0 | -739.7 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -22.30 | 51.04 | -3.37 | 173.64 | 0.4932 | -526.0 | -322.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.05 | 51.07 | -3.34 | 173.38 | 0.4742 | -260.0 | -310.1 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -21.61 | 50.86 | -3.55 | 173.12 | 0.4830 | -817.0 | -695.3 | |
| 5.94 | 15.56 | 3.37 | 8.82 | -21.96 | 50.72 | -3.69 | 172.95 | 0.4885 | -944.0 | -817.5 | |
| 2.25 | -31.00 | 1.28 | -31.00 | -21.99 | 50.33 | -4.09 | 172.22 | 0.4899 | -796.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.34 | 49.95 | -4.46 | 171.30 | 0.4808 | -801.0 | -628.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -23.12 | 49.03 | -5.38 | 170.22 | 0.5098 | -715.0 | -657.2 | |
| 0.00 | 3.15 | 0.00 | 1.82 | -23.37 | 48.89 | -5.52 | 170.06 | 0.5138 | -722.0 | -610.5 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -24.48 | 48.37 | -6.04 | 169.58 | 0.5314 | -666.0 | -522.8 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -24.16 | 48.22 | -6.19 | 169.20 | 0.5271 | -725.0 | -563.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
