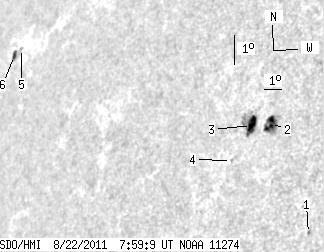

SDO HMI 2011-08-22 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.29 | 50.74 | 20.40 | 44.12 | 18.85 | 359.03 | -55.38 | 71.68 | 0.8172 | -471.3 | -245.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.88 | 15.76 | 5.45 | -48.97 | 75.08 | 0.7535 | -541.0 | -454.0 | |
| 8.27 | 19.97 | 6.65 | 16.02 | 18.92 | 2.33 | -52.08 | 71.36 | 0.7898 | -781.3 | -590.1 | |
| 12.23 | 22.94 | 10.03 | 18.86 | 18.77 | 1.39 | -53.02 | 71.66 | 0.7990 | -671.2 | -99.1 | |
| 0.00 | 0.99 | 0.00 | 0.82 | 17.62 | 0.83 | -53.58 | 73.16 | 0.8035 | 304.0 | 272.5 | |
| 0.00 | 1.35 | 0.00 | 1.77 | 19.58 | 345.48 | -68.93 | 71.64 | 0.9280 | 378.0 | 351.9 | |
| 2.79 | 4.32 | 3.72 | 5.77 | 19.31 | 345.09 | -69.32 | 71.93 | 0.9303 | 203.6 | 61.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
