SDO HMI 2011-08-22 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.26 | 43.99 | 11.82 | 53.15 | 7.84 | 347.99 | -66.43 | 84.51 | 0.9107 | -448.2 | -200.0 | |
|
previous
or next observation for the same group /

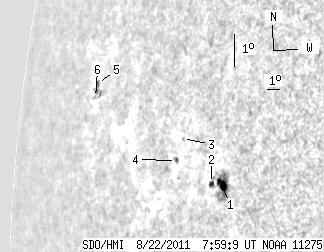

back to the solar disc SDO HMI 2011-08-22 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.02 | 27.34 | 7.55 | 29.33 | 7.34 | 351.29 | -63.12 | 85.31 | 0.8895 | -726.4 | -380.2 | |
| 2.16 | 5.04 | 2.38 | 5.54 | 7.29 | 350.61 | -63.81 | 85.30 | 0.8949 | -278.8 | -225.5 | |
| 0.00 | 0.99 | 0.00 | 1.19 | 8.41 | 348.15 | -66.26 | 83.88 | 0.9125 | -388.0 | -330.0 | |
| 0.00 | 2.70 | 0.00 | 3.27 | 7.70 | 347.91 | -66.50 | 84.63 | 0.9145 | -440.0 | -249.5 | |
| 1.08 | 6.57 | 1.89 | 11.44 | 9.17 | 339.93 | -74.49 | 82.44 | 0.9608 | 207.5 | 221.9 | |
| 0.00 | 1.35 | 0.00 | 2.38 | 8.74 | 339.94 | -74.47 | 82.89 | 0.9609 | -58.0 | -77.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
