SDO HMI 2011-08-22 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.70 | 38.86 | 13.77 | 46.61 | 7.85 | 347.70 | -66.17 | 84.51 | 0.9088 | -275.6 | -196.6 | |
|
previous
or next observation for the same group /

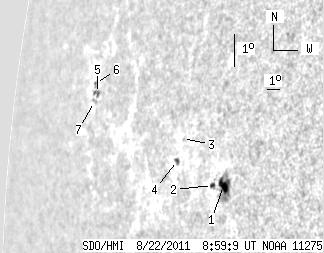

back to the solar disc SDO HMI 2011-08-22 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.21 | 24.19 | 6.55 | 25.46 | 7.34 | 351.35 | -62.51 | 85.35 | 0.8847 | -734.4 | -410.4 | |
| 1.80 | 2.70 | 1.94 | 2.91 | 7.26 | 350.63 | -63.24 | 85.38 | 0.8905 | -270.2 | -298.9 | |
| 0.00 | 0.54 | 0.00 | 0.63 | 8.43 | 348.13 | -65.74 | 83.89 | 0.9087 | -456.0 | -450.8 | |
| 1.80 | 3.33 | 2.13 | 3.95 | 7.74 | 347.97 | -65.89 | 84.64 | 0.9102 | -288.1 | -219.4 | |
| 1.89 | 3.69 | 3.15 | 6.19 | 8.94 | 340.31 | -73.55 | 82.76 | 0.9564 | 414.7 | 227.8 | |
| 0.00 | 2.07 | 0.00 | 3.52 | 9.20 | 339.94 | -73.92 | 82.45 | 0.9581 | 157.0 | 179.0 | |
| 0.00 | 2.34 | 0.00 | 3.95 | 8.67 | 340.12 | -73.74 | 83.02 | 0.9574 | 319.0 | 241.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
