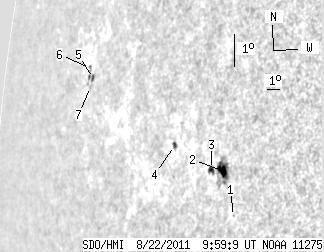

SDO HMI 2011-08-22 09:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.63 | 39.67 | 11.14 | 46.04 | 7.74 | 348.14 | -65.18 | 84.71 | 0.9018 | -215.9 | -202.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 09:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.63 | 6.01 | 352.40 | -60.92 | 87.00 | 0.8723 | -422.0 | -387.6 | |
| 3.24 | 23.83 | 3.34 | 24.65 | 7.29 | 351.48 | -61.83 | 85.46 | 0.8792 | -818.4 | -391.5 | |
| 2.61 | 4.77 | 2.76 | 5.05 | 7.26 | 350.69 | -62.62 | 85.43 | 0.8856 | -283.6 | -185.8 | |
| 2.34 | 2.88 | 2.71 | 3.34 | 7.71 | 347.97 | -65.35 | 84.72 | 0.9063 | -283.9 | -306.6 | |
| 1.44 | 3.87 | 2.33 | 6.31 | 8.92 | 340.43 | -72.89 | 82.83 | 0.9530 | 400.3 | 184.2 | |
| 0.00 | 2.16 | 0.00 | 3.57 | 9.18 | 339.97 | -73.34 | 82.52 | 0.9552 | 303.0 | 168.3 | |
| 0.00 | 1.53 | 0.00 | 2.49 | 8.65 | 340.25 | -73.07 | 83.09 | 0.9540 | 419.0 | 315.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
