SDO HMI 2011-08-22 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.05 | 237.71 | 39.35 | 133.50 | -21.13 | 53.38 | 0.62 | 181.28 | 0.4738 | 25.9 | -158.0 | |
|
previous
or next observation for the same group /

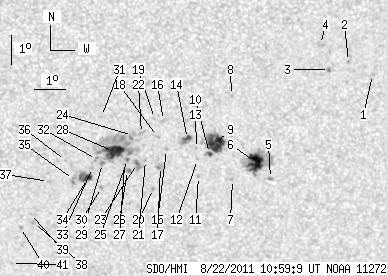

back to the solar disc SDO HMI 2011-08-22 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.65 | -18.48 | 59.89 | 7.12 | 195.35 | 0.4460 | 662.0 | 455.2 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -18.04 | 59.10 | 6.33 | 193.98 | 0.4360 | 788.0 | 628.9 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -18.30 | 58.50 | 5.73 | 192.56 | 0.4379 | 914.0 | 664.8 | |
| 0.00 | 3.24 | 0.00 | 1.77 | -17.46 | 58.19 | 5.42 | 192.32 | 0.4239 | 612.0 | 661.0 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -21.99 | 56.70 | 3.93 | 187.50 | 0.4895 | 625.0 | 519.4 | |
| 17.35 | 48.29 | 9.79 | 27.23 | -21.44 | 56.20 | 3.43 | 186.69 | 0.4801 | 1028.9 | 459.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -22.02 | 55.46 | 2.69 | 185.14 | 0.4878 | 776.0 | 663.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -19.14 | 55.37 | 2.61 | 185.58 | 0.4433 | 569.0 | 585.6 | |
| 22.84 | 34.62 | 12.79 | 19.39 | -20.74 | 54.88 | 2.11 | 184.25 | 0.4675 | 990.5 | 618.1 | |
| 1.71 | -9.00 | 0.96 | -9.00 | -21.12 | 54.69 | 1.92 | 183.81 | 0.4731 | 608.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -21.91 | 54.34 | 1.57 | 183.03 | 0.4849 | 748.0 | 511.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.32 | 54.30 | 1.54 | 183.02 | 0.4759 | 666.0 | 498.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -20.94 | 54.27 | 1.50 | 182.99 | 0.4700 | 742.0 | 523.2 | |
| 3.60 | 6.83 | 2.01 | 3.82 | -20.60 | 53.97 | 1.20 | 182.44 | 0.4645 | 879.1 | 327.4 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -20.97 | 53.29 | 0.53 | 181.05 | 0.4700 | -792.0 | -577.9 | |
| 0.00 | 2.34 | 0.00 | 1.30 | -19.98 | 53.19 | 0.42 | 180.88 | 0.4545 | -727.0 | -552.0 | |
| 0.00 | 4.50 | 0.00 | 2.53 | -21.56 | 53.10 | 0.33 | 180.65 | 0.4790 | -318.0 | -244.5 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -20.53 | 53.00 | 0.23 | 180.47 | 0.4630 | 580.0 | 485.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.91 | 52.90 | 0.13 | 180.28 | 0.4534 | -774.0 | -673.0 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -22.32 | 52.87 | 0.10 | 180.20 | 0.4906 | -801.0 | -689.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.35 | 52.61 | -0.16 | 179.69 | 0.4758 | -709.0 | -611.6 | |
| 0.00 | 3.60 | 0.00 | 2.01 | -20.43 | 52.48 | -0.29 | 179.42 | 0.4614 | -529.0 | -329.4 | |
| 1.26 | 6.02 | 0.71 | 3.39 | -21.46 | 52.35 | -0.42 | 179.18 | 0.4774 | -884.1 | -664.4 | |
| 0.00 | 3.87 | 0.00 | 2.16 | -20.49 | 52.19 | -0.58 | 178.83 | 0.4626 | -459.0 | -625.5 | |
| 0.27 | 1.53 | 0.15 | 0.86 | -21.32 | 52.02 | -0.74 | 178.54 | 0.4754 | -949.0 | -776.2 | |
| 0.00 | 4.05 | 0.00 | 2.28 | -21.70 | 52.02 | -0.75 | 178.55 | 0.4812 | -790.0 | -603.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.53 | 51.93 | -0.84 | 178.36 | 0.4786 | -740.0 | -555.1 | |
| 18.70 | 69.15 | 10.50 | 38.75 | -21.04 | 51.57 | -1.20 | 177.62 | 0.4714 | -1116.5 | -474.6 | |
| 0.00 | 2.52 | 0.00 | 1.42 | -21.46 | 51.21 | -1.56 | 176.95 | 0.4780 | -856.0 | -752.4 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -22.29 | 51.17 | -1.60 | 176.97 | 0.4908 | -742.0 | -465.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -19.85 | 51.19 | -1.57 | 176.72 | 0.4531 | -692.0 | -537.8 | |
| 0.00 | 3.60 | 0.00 | 2.02 | -21.32 | 51.01 | -1.75 | 176.55 | 0.4761 | -749.0 | -665.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.60 | 50.88 | -1.89 | 176.33 | 0.4805 | -746.0 | -624.4 | |
| 4.32 | 9.53 | 2.44 | 5.40 | -21.98 | 50.71 | -2.06 | 176.06 | 0.4865 | -883.2 | -937.7 | |
| 0.00 | 4.14 | 0.00 | 2.34 | -22.02 | 50.25 | -2.51 | 175.20 | 0.4876 | -763.0 | -664.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -21.36 | 50.00 | -2.76 | 174.59 | 0.4779 | -707.0 | -599.3 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -22.09 | 49.43 | -3.34 | 173.66 | 0.4899 | -739.0 | -541.3 | |
| 0.00 | 2.43 | 0.00 | 1.40 | -23.53 | 48.90 | -3.87 | 173.04 | 0.5125 | -749.0 | -595.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -23.21 | 48.81 | -3.96 | 172.80 | 0.5079 | -514.0 | -442.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -23.71 | 48.46 | -4.31 | 172.31 | 0.5160 | -747.0 | -560.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -24.99 | 48.12 | -4.65 | 172.08 | 0.5356 | -636.0 | -447.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
