groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 229.56 976.79 117.00 498.08 17.33 60.76 8.55 322.77 0.2357 36.2 -85.4


previous   or   next   observation for the same group / back to the solar disc

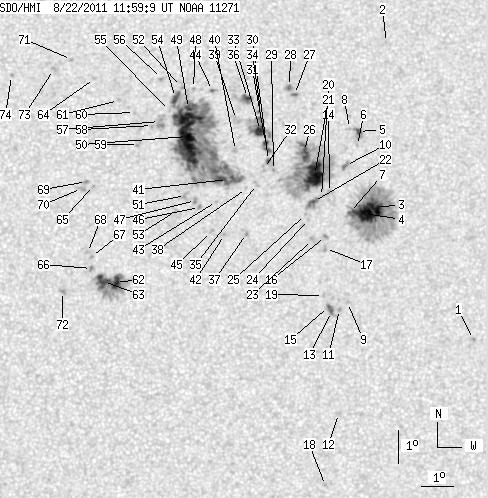

SDO HMI 2011-08-22 11:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.35 0.00 0.69 12.09 67.50 15.29 290.06 0.2756 -944.0 -718.3
2 0.00 0.90 0.00 0.47 21.31 65.36 13.14 319.88 0.3300 -701.0 -601.5
3 11.24 191.87 5.77 98.46 16.21 64.60 12.38 308.53 0.2644 -1186.6 -399.1
4 21.85 -3.00 11.20 -3.00 16.03 64.23 12.02 308.78 0.2578 -1378.6 999999
5 3.06 8.00 1.58 4.13 18.56 64.21 11.99 316.03 0.2849 920.8 786.7
6 0.00 0.90 0.00 0.46 18.13 64.14 11.93 315.05 0.2792 490.0 349.9
7 0.27 -3.00 0.14 -3.00 16.08 63.75 11.54 310.01 0.2520 -1017.0 999999
8 0.00 2.61 0.00 1.35 18.66 63.92 11.70 316.96 0.2828 681.0 405.0
9 0.00 1.80 0.00 0.91 13.32 63.54 11.33 300.75 0.2234 -737.0 -563.2
10 0.00 4.05 0.00 2.08 17.52 63.71 11.50 314.41 0.2672 -873.0 -677.9
11 0.00 1.62 0.00 0.82 13.12 63.28 11.06 300.48 0.2178 -930.0 -757.3
12 0.00 2.43 0.00 1.23 9.96 63.12 10.90 286.43 0.1951 -858.0 -535.7
13 1.44 7.10 0.73 3.60 13.06 63.02 10.81 300.81 0.2136 -1010.7 -884.9
14 0.00 3.06 0.00 1.56 16.70 63.15 10.93 313.43 0.2511 -355.0 -445.4
15 1.44 -13.00 0.73 -13.00 13.22 62.93 10.72 301.64 0.2136 -1075.6 999999
16 0.00 2.16 0.00 1.10 15.36 62.94 10.73 309.63 0.2340 -981.0 -776.1
17 0.00 2.43 0.00 1.24 14.99 62.92 10.71 308.40 0.2300 -860.0 -655.7
18 0.00 1.71 0.00 0.86 7.78 62.65 10.43 275.37 0.1811 -892.0 -602.2
19 0.00 1.89 0.00 0.96 13.55 62.79 10.57 303.34 0.2145 -719.0 -619.8
20 0.00 1.44 0.00 0.74 16.59 62.88 10.66 313.75 0.2466 -595.0 -581.2
21 31.29 174.42 16.01 89.27 17.24 62.69 10.48 316.17 0.2519 -1260.7 -474.3
22 0.90 9.80 0.46 5.00 16.44 62.62 10.40 313.99 0.2417 -1182.7 -890.6
23 0.00 2.70 0.00 1.37 15.27 62.52 10.31 310.43 0.2277 -972.0 -766.8
24 0.00 0.81 0.00 0.41 15.89 62.43 10.21 312.75 0.2332 -850.0 -627.3
25 0.00 0.90 0.00 0.46 16.04 62.34 10.12 313.50 0.2338 -796.0 -639.0
26 10.43 -21.00 5.35 -21.00 17.98 62.41 10.20 318.99 0.2577 -967.6 999999
27 1.62 2.07 0.83 1.07 19.76 62.19 9.98 323.92 0.2781 -986.7 -902.6
28 1.26 4.68 0.65 2.41 20.01 62.05 9.83 324.87 0.2800 -943.6 -898.4
29 0.00 1.26 0.00 0.64 17.42 61.38 9.16 320.38 0.2393 -980.0 -823.1
30 1.98 4.41 1.01 2.25 17.73 61.24 9.02 321.67 0.2418 -986.7 -681.7
31 2.43 7.01 1.24 3.58 18.29 61.17 8.95 323.32 0.2484 -1062.6 -1017.0
32 0.00 2.43 0.00 1.24 17.49 61.06 8.84 321.53 0.2368 -445.0 -616.6
33 8.36 30.93 4.28 15.83 18.66 61.03 8.81 324.67 0.2520 -1164.3 -562.6
34 0.00 2.16 0.00 1.11 19.28 61.06 8.84 326.02 0.2608 -901.0 -789.4
35 0.00 2.97 0.00 1.51 17.00 60.81 8.60 320.93 0.2278 -599.0 -571.8
36 4.23 12.77 2.17 6.55 19.69 60.66 8.44 328.12 0.2628 -996.5 -688.7
37 0.00 2.07 0.00 1.05 15.50 60.43 8.21 317.49 0.2046 849.0 668.4
38 0.00 1.08 0.00 0.55 16.88 60.49 8.27 321.65 0.2229 488.0 345.3
39 0.00 6.56 0.00 3.36 19.01 60.27 8.05 327.84 0.2498 -428.0 -329.2
40 0.00 2.88 0.00 1.47 18.06 60.19 7.97 325.81 0.2357 630.0 388.6
41 16.09 346.96 8.17 176.55 17.17 59.89 7.68 324.48 0.2206 -873.9 231.6
42 0.00 1.08 0.00 0.55 15.48 59.73 7.51 319.90 0.1965 872.0 678.1
43 0.00 0.99 0.00 0.50 16.49 59.51 7.30 323.92 0.2077 771.0 604.5
44 1.17 2.07 0.60 1.06 19.93 59.53 7.31 332.08 0.2567 -671.8 -583.5
45 0.00 1.80 0.00 0.91 15.58 59.32 7.10 321.77 0.1934 907.0 741.8
46 0.00 2.16 0.00 1.09 16.32 58.97 6.75 325.47 0.1999 833.0 679.8
47 0.00 2.61 0.00 1.32 16.53 58.85 6.63 326.57 0.2018 999.0 824.8
48 0.00 1.08 0.00 0.55 20.00 58.92 6.70 334.21 0.2531 -726.0 -519.3
49 2.97 -41.00 1.51 -41.00 19.38 58.73 6.51 333.69 0.2424 877.0 999999
50 82.54 -41.00 42.00 -41.00 18.51 58.66 6.45 332.16 0.2289 1201.4 999999
51 0.00 4.05 0.00 2.05 16.69 58.53 6.32 328.25 0.2012 901.0 823.8
52 0.00 2.70 0.00 1.38 20.07 58.53 6.31 335.63 0.2514 574.0 441.6
53 0.00 1.26 0.00 0.64 16.23 58.23 6.02 328.21 0.1919 852.0 660.9
54 6.02 -41.00 3.08 -41.00 19.73 58.32 6.10 335.74 0.2447 787.3 999999
55 0.00 1.35 0.00 0.69 19.32 58.11 5.90 335.76 0.2371 747.0 604.1
56 0.00 2.16 0.00 1.10 20.32 57.89 5.67 338.24 0.2511 914.0 703.7
57 0.00 10.43 0.00 5.31 18.99 57.78 5.56 336.37 0.2296 860.0 792.8
58 0.00 1.35 0.00 0.69 18.87 57.55 5.33 337.02 0.2262 775.0 672.3
59 0.00 2.43 0.00 1.23 18.28 57.08 4.86 337.80 0.2140 854.0 748.2
60 0.00 1.17 0.00 0.59 19.27 56.98 4.76 339.90 0.2291 883.0 701.8
61 0.00 1.71 0.00 0.87 19.65 56.48 4.26 342.41 0.2324 784.0 660.0
62 7.37 59.43 3.69 29.73 14.05 56.26 4.04 331.19 0.1425 1239.0 603.6
63 11.60 -62.00 5.80 -62.00 14.08 55.88 3.66 333.58 0.1400 1190.2 999999
64 0.00 1.62 0.00 0.83 20.34 55.72 3.50 346.15 0.2402 905.0 689.4
65 0.00 1.26 0.00 0.63 17.03 55.62 3.40 342.10 0.1853 849.0 719.6
66 0.00 2.34 0.00 1.17 14.48 55.51 3.29 337.09 0.1436 1025.0 796.8
67 0.00 1.26 0.00 0.63 14.85 55.52 3.30 338.04 0.1495 874.0 739.5
68 0.00 2.07 0.00 1.04 14.97 55.39 3.18 339.09 0.1507 900.0 611.7
69 0.00 2.52 0.00 1.27 17.15 55.40 3.18 343.39 0.1863 952.0 758.9
70 0.00 3.69 0.00 1.86 16.94 55.23 3.02 343.86 0.1820 921.0 780.0
71 0.00 1.62 0.00 0.83 20.94 54.98 2.77 349.46 0.2475 990.0 785.1
72 0.00 2.97 0.00 1.48 13.79 54.60 2.38 341.36 0.1267 1010.0 748.4
73 0.00 1.98 0.00 1.01 20.63 54.39 2.18 351.47 0.2407 774.0 797.6
74 0.00 1.44 0.00 0.73 20.45 53.03 0.81 356.74 0.2352 818.0 674.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
