SDO HMI 2011-08-22 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.13 | 951.82 | 98.10 | 486.08 | 17.45 | 60.73 | 9.07 | 321.36 | 0.2426 | -85.3 | -55.8 | |
|
previous
or next observation for the same group /

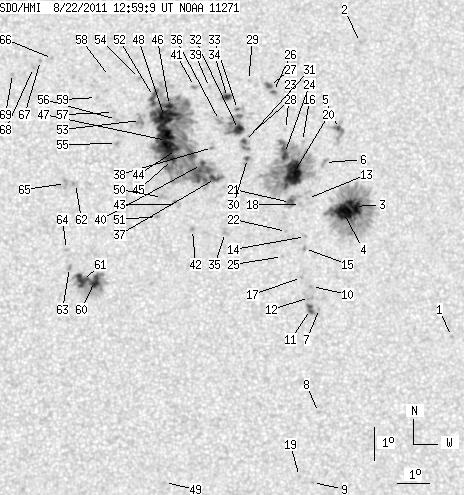

back to the solar disc SDO HMI 2011-08-22 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.13 | 67.47 | 15.80 | 289.66 | 0.2840 | -864.0 | -700.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 21.26 | 65.20 | 13.54 | 318.97 | 0.3338 | -802.0 | -637.9 | |
| 12.41 | 183.12 | 6.38 | 94.15 | 16.19 | 64.60 | 12.93 | 307.33 | 0.2715 | -1158.0 | -427.8 | |
| 18.52 | -3.00 | 9.51 | -3.00 | 16.02 | 64.23 | 12.57 | 307.55 | 0.2649 | -1407.4 | 999999 | |
| 1.80 | 14.38 | 0.93 | 7.44 | 18.61 | 64.25 | 12.58 | 314.82 | 0.2924 | 996.5 | 553.5 | |
| 0.00 | 3.87 | 0.00 | 1.99 | 17.57 | 63.72 | 12.05 | 313.24 | 0.2745 | -721.0 | -651.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.10 | 63.30 | 11.63 | 299.24 | 0.2261 | -842.0 | -725.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 9.94 | 63.14 | 11.47 | 285.66 | 0.2043 | -894.0 | -651.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 7.82 | 62.88 | 11.22 | 275.30 | 0.1944 | -955.0 | -768.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 13.78 | 63.08 | 11.41 | 302.32 | 0.2284 | -820.0 | -712.9 | |
| 4.49 | 6.20 | 2.28 | 3.15 | 13.08 | 63.01 | 11.35 | 299.72 | 0.2217 | -1021.9 | -809.4 | |
| 0.00 | 3.51 | 0.00 | 1.78 | 13.44 | 63.00 | 11.33 | 301.20 | 0.2244 | -694.0 | -741.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 16.47 | 63.10 | 11.43 | 311.50 | 0.2549 | -904.0 | -679.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.31 | 62.97 | 11.30 | 308.07 | 0.2411 | -774.0 | -616.7 | |
| 0.00 | 2.25 | 0.00 | 1.15 | 14.94 | 62.91 | 11.25 | 306.93 | 0.2368 | -941.0 | -719.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 18.23 | 63.05 | 11.38 | 316.61 | 0.2741 | -600.0 | -417.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.06 | 62.77 | 11.11 | 304.06 | 0.2266 | -910.0 | -690.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 16.29 | 62.86 | 11.20 | 311.51 | 0.2500 | -713.0 | -609.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.01 | 62.48 | 10.82 | 276.46 | 0.1879 | -848.0 | -604.9 | |
| 32.09 | 167.12 | 16.45 | 85.68 | 17.22 | 62.66 | 10.99 | 314.79 | 0.2578 | -1258.6 | -494.2 | |
| 4.05 | 11.69 | 2.07 | 5.97 | 16.36 | 62.54 | 10.88 | 312.52 | 0.2468 | -1030.5 | -895.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 15.48 | 62.37 | 10.70 | 310.10 | 0.2350 | -837.0 | -752.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 18.62 | 62.52 | 10.85 | 318.91 | 0.2727 | -729.0 | -471.9 | |
| 6.47 | -20.00 | 3.32 | -20.00 | 17.88 | 62.44 | 10.77 | 317.17 | 0.2629 | -1038.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.71 | 62.20 | 10.53 | 307.86 | 0.2250 | -776.0 | -576.2 | |
| 1.35 | 6.56 | 0.70 | 3.39 | 19.80 | 62.20 | 10.54 | 322.56 | 0.2843 | -1028.8 | -870.2 | |
| 3.24 | -26.00 | 1.67 | -26.00 | 19.99 | 62.09 | 10.42 | 323.29 | 0.2856 | -984.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.46 | 61.31 | 9.64 | 321.74 | 0.2577 | -798.0 | -649.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.16 | 61.41 | 9.74 | 325.43 | 0.2812 | -683.0 | -495.5 | |
| 1.62 | 4.49 | 0.83 | 2.30 | 17.75 | 61.23 | 9.57 | 320.09 | 0.2479 | -985.2 | -802.3 | |
| 2.07 | 7.55 | 1.06 | 3.87 | 18.27 | 61.17 | 9.50 | 321.68 | 0.2539 | -1127.9 | -966.0 | |
| 7.19 | 26.61 | 3.69 | 13.64 | 18.65 | 60.99 | 9.33 | 323.12 | 0.2570 | -1163.7 | -660.5 | |
| 1.26 | 3.96 | 0.65 | 2.03 | 19.27 | 61.00 | 9.33 | 324.59 | 0.2653 | -774.7 | -714.5 | |
| 4.14 | 7.64 | 2.13 | 3.93 | 19.65 | 60.69 | 9.03 | 326.31 | 0.2675 | -1031.7 | -724.9 | |
| 0.00 | 3.60 | 0.00 | 1.82 | 15.48 | 60.42 | 8.75 | 315.67 | 0.2108 | 876.0 | 626.1 | |
| 0.00 | 4.23 | 0.00 | 2.16 | 18.94 | 60.39 | 8.73 | 325.58 | 0.2550 | -539.0 | -379.3 | |
| 4.94 | 367.95 | 2.52 | 187.48 | 17.15 | 60.18 | 8.51 | 321.65 | 0.2289 | -1086.3 | 267.4 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 18.11 | 60.12 | 8.46 | 324.38 | 0.2411 | 740.0 | 525.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.97 | 60.12 | 8.46 | 328.65 | 0.2668 | -735.0 | -601.5 | |
| 0.45 | -37.00 | 0.23 | -37.00 | 17.59 | 59.75 | 8.08 | 324.25 | 0.2304 | -302.6 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 20.01 | 59.64 | 7.97 | 330.19 | 0.2632 | -863.0 | -643.1 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 15.59 | 59.38 | 7.71 | 319.58 | 0.2002 | 923.0 | 770.0 | |
| 0.00 | 3.51 | 0.00 | 1.77 | 16.37 | 58.93 | 7.26 | 323.67 | 0.2057 | 316.0 | 706.6 | |
| 1.35 | -37.00 | 0.69 | -37.00 | 18.06 | 58.96 | 7.30 | 328.11 | 0.2296 | 1083.8 | 999999 | |
| 2.16 | -37.00 | 1.10 | -37.00 | 17.76 | 58.82 | 7.16 | 327.85 | 0.2239 | 1175.5 | 999999 | |
| 3.24 | -37.00 | 1.65 | -37.00 | 19.43 | 58.80 | 7.13 | 331.69 | 0.2480 | 946.8 | 999999 | |
| 29.49 | -37.00 | 15.01 | -37.00 | 18.35 | 58.65 | 6.99 | 329.85 | 0.2309 | 1350.4 | 999999 | |
| 22.38 | -37.00 | 11.42 | -37.00 | 19.06 | 58.62 | 6.95 | 331.53 | 0.2411 | 1212.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.91 | 58.30 | 6.63 | 278.88 | 0.1163 | -815.0 | -529.9 | |
| 0.00 | 3.78 | 0.00 | 1.91 | 16.59 | 58.46 | 6.79 | 326.10 | 0.2041 | 640.0 | 682.9 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 16.01 | 58.28 | 6.61 | 325.09 | 0.1943 | 976.0 | 767.3 | |
| 7.91 | -37.00 | 4.04 | -37.00 | 19.72 | 58.29 | 6.62 | 333.95 | 0.2483 | 767.1 | 999999 | |
| 0.00 | 9.98 | 0.00 | 5.08 | 18.98 | 57.84 | 6.17 | 334.09 | 0.2338 | 951.0 | 851.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 20.28 | 57.86 | 6.19 | 336.40 | 0.2539 | 977.0 | 749.3 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 18.27 | 57.04 | 5.38 | 335.71 | 0.2173 | 953.0 | 751.5 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 19.02 | 57.07 | 5.40 | 337.02 | 0.2290 | 901.0 | 645.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 19.23 | 56.98 | 5.31 | 337.74 | 0.2319 | 842.0 | 664.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 20.36 | 56.89 | 5.22 | 339.87 | 0.2489 | 776.0 | 599.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 19.71 | 56.44 | 4.78 | 340.51 | 0.2361 | 792.0 | 596.8 | |
| 8.90 | 55.29 | 4.46 | 27.68 | 14.04 | 56.24 | 4.57 | 328.08 | 0.1470 | 1232.7 | 613.6 | |
| 10.61 | -60.00 | 5.31 | -60.00 | 14.08 | 55.86 | 4.20 | 330.35 | 0.1442 | 1139.5 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.41 | 17.05 | 55.70 | 4.04 | 339.08 | 0.1893 | 455.0 | 492.9 | |
| 0.00 | 2.25 | 0.00 | 1.13 | 14.48 | 55.46 | 3.80 | 334.02 | 0.1471 | 968.0 | 851.7 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 15.03 | 55.38 | 3.71 | 336.10 | 0.1551 | 912.0 | 617.8 | |
| 0.00 | 5.12 | 0.00 | 2.58 | 17.05 | 55.39 | 3.72 | 340.59 | 0.1875 | 955.0 | 800.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 20.93 | 55.05 | 3.39 | 347.17 | 0.2495 | 764.0 | 671.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.87 | 54.66 | 2.99 | 348.56 | 0.2471 | 882.0 | 722.2 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 20.66 | 54.43 | 2.76 | 349.25 | 0.2428 | 1025.0 | 886.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 20.47 | 53.75 | 2.08 | 351.74 | 0.2378 | 714.0 | 615.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
