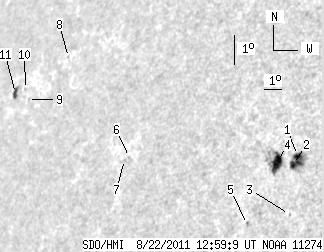

SDO HMI 2011-08-22 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.37 | 58.98 | 20.52 | 49.05 | 18.87 | 358.24 | -53.43 | 71.42 | 0.7981 | -323.8 | -288.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.33 | 21.49 | 2.53 | 16.32 | 19.06 | 2.30 | -49.37 | 70.79 | 0.7619 | -740.3 | -663.4 | |
| 3.33 | -1.00 | 2.54 | -1.00 | 18.77 | 2.17 | -49.50 | 71.19 | 0.7628 | -665.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 17.24 | 2.60 | -49.06 | 73.14 | 0.7562 | -522.0 | -395.5 | |
| 13.75 | 25.62 | 10.65 | 19.89 | 18.76 | 1.37 | -50.29 | 71.32 | 0.7712 | -666.8 | -159.8 | |
| 0.00 | 1.35 | 0.00 | 1.06 | 16.75 | 0.70 | -50.97 | 73.99 | 0.7761 | -500.0 | -459.7 | |
| 0.00 | 0.90 | 0.00 | 0.83 | 18.17 | 353.56 | -58.11 | 72.84 | 0.8464 | 381.0 | 387.5 | |
| 0.00 | 0.36 | 0.00 | 0.33 | 18.08 | 353.30 | -58.37 | 72.97 | 0.8486 | 397.0 | 338.0 | |
| 0.00 | 0.90 | 0.00 | 0.99 | 20.76 | 347.81 | -63.85 | 70.20 | 0.8940 | 338.0 | 260.0 | |
| 0.00 | 0.54 | 0.00 | 0.63 | 19.21 | 345.88 | -65.79 | 71.99 | 0.9074 | -199.0 | -186.2 | |
| 0.00 | 0.90 | 0.00 | 1.06 | 19.49 | 345.50 | -66.17 | 71.70 | 0.9100 | 326.0 | 358.8 | |
| 3.96 | 5.93 | 4.80 | 7.19 | 19.29 | 344.85 | -66.82 | 71.93 | 0.9144 | 319.4 | 221.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
