SDO HMI 2011-08-22 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.54 | 989.51 | 107.13 | 506.18 | 17.45 | 60.70 | 9.59 | 319.81 | 0.2482 | -44.9 | -81.7 | |
|
previous
or next observation for the same group /

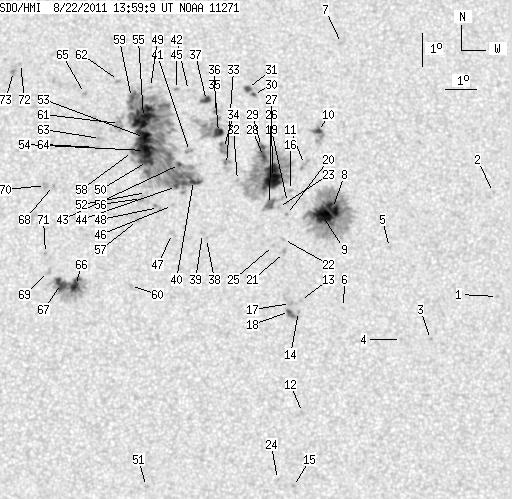

back to the solar disc SDO HMI 2011-08-22 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.57 | 13.37 | 69.74 | 18.62 | 290.85 | 0.3339 | -735.0 | -516.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.56 | 69.89 | 18.78 | 299.33 | 0.3555 | -473.0 | -496.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.14 | 67.47 | 16.35 | 289.15 | 0.2926 | -871.0 | -723.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 12.17 | 66.53 | 15.42 | 290.19 | 0.2781 | -770.0 | -512.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 14.99 | 66.33 | 15.22 | 299.64 | 0.2930 | -883.0 | -644.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 13.20 | 64.73 | 13.62 | 296.15 | 0.2565 | -730.0 | -539.9 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 21.33 | 65.29 | 14.18 | 317.87 | 0.3416 | -797.0 | -650.0 | |
| 10.16 | 175.99 | 5.24 | 90.68 | 16.24 | 64.57 | 13.45 | 306.43 | 0.2789 | -1193.0 | -446.5 | |
| 19.41 | -8.00 | 9.99 | -8.00 | 16.03 | 64.23 | 13.12 | 306.47 | 0.2724 | -1392.8 | 999999 | |
| 3.69 | 16.45 | 1.91 | 8.54 | 18.62 | 64.29 | 13.17 | 313.59 | 0.2995 | 1014.3 | 524.9 | |
| 0.00 | 4.49 | 0.00 | 2.32 | 17.61 | 63.75 | 12.64 | 312.06 | 0.2822 | -825.0 | -570.8 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 10.04 | 63.28 | 12.16 | 285.35 | 0.2161 | -746.0 | -496.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 13.45 | 63.37 | 12.25 | 299.38 | 0.2380 | -852.0 | -701.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.11 | 63.29 | 12.17 | 298.26 | 0.2342 | -806.0 | -669.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 7.80 | 62.92 | 11.81 | 275.02 | 0.2044 | -830.0 | -778.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 16.82 | 63.25 | 12.13 | 310.93 | 0.2674 | -532.0 | -436.4 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 13.36 | 63.05 | 11.93 | 299.68 | 0.2326 | -1033.0 | -831.1 | |
| 2.16 | 6.29 | 1.10 | 3.20 | 13.12 | 63.00 | 11.89 | 298.82 | 0.2300 | -1064.2 | -893.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 16.46 | 63.13 | 12.01 | 310.10 | 0.2621 | -880.0 | -747.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.09 | 63.07 | 11.96 | 309.09 | 0.2576 | -794.0 | -609.7 | |
| 0.00 | 2.61 | 0.00 | 1.33 | 14.93 | 62.94 | 11.82 | 305.58 | 0.2445 | -923.0 | -696.8 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 15.33 | 62.93 | 11.81 | 306.94 | 0.2482 | -884.0 | -687.0 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 16.31 | 62.83 | 11.71 | 310.34 | 0.2567 | -766.0 | -599.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.03 | 62.43 | 11.31 | 276.32 | 0.1963 | -634.0 | -521.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.15 | 62.60 | 11.48 | 307.10 | 0.2420 | -974.0 | -661.0 | |
| 32.00 | 154.24 | 16.43 | 79.21 | 17.24 | 62.69 | 11.57 | 313.41 | 0.2650 | -1255.0 | -511.6 | |
| 7.10 | 13.48 | 3.64 | 6.91 | 16.41 | 62.54 | 11.43 | 311.31 | 0.2541 | -1059.1 | -812.6 | |
| 5.75 | -26.00 | 2.96 | -26.00 | 17.89 | 62.44 | 11.32 | 315.84 | 0.2694 | -1022.0 | 999999 | |
| 2.43 | -26.00 | 1.25 | -26.00 | 18.20 | 62.39 | 11.28 | 316.77 | 0.2725 | -806.1 | 999999 | |
| 0.81 | 9.35 | 0.42 | 4.84 | 19.82 | 62.24 | 11.13 | 321.12 | 0.2906 | -920.7 | -652.9 | |
| 3.51 | -30.00 | 1.81 | -30.00 | 20.01 | 62.06 | 10.95 | 322.00 | 0.2911 | -968.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 17.17 | 61.55 | 10.44 | 316.07 | 0.2506 | -758.0 | -593.8 | |
| 0.00 | 8.54 | 0.00 | 4.37 | 17.67 | 61.23 | 10.11 | 318.36 | 0.2529 | -946.0 | -821.2 | |
| 0.00 | 8.90 | 0.00 | 4.56 | 18.17 | 61.16 | 10.04 | 319.88 | 0.2583 | -1143.0 | -998.1 | |
| 6.74 | 43.32 | 3.46 | 22.24 | 18.66 | 61.03 | 9.91 | 321.51 | 0.2632 | -1192.4 | -515.7 | |
| 0.90 | 4.22 | 0.46 | 2.17 | 19.29 | 60.97 | 9.85 | 323.18 | 0.2706 | -815.1 | -697.3 | |
| 4.85 | 6.38 | 2.50 | 3.29 | 19.66 | 60.69 | 9.58 | 324.78 | 0.2730 | -1020.9 | -755.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 15.41 | 60.47 | 9.36 | 313.56 | 0.2172 | 664.0 | 511.3 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 15.56 | 60.35 | 9.23 | 314.45 | 0.2175 | 711.0 | 596.8 | |
| 6.38 | 390.27 | 3.25 | 199.11 | 17.20 | 60.14 | 9.02 | 320.18 | 0.2350 | -942.2 | 227.6 | |
| 0.00 | 3.33 | 0.00 | 1.70 | 18.09 | 60.05 | 8.94 | 322.86 | 0.2458 | 665.0 | 391.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 19.99 | 60.13 | 9.01 | 327.08 | 0.2720 | -699.0 | -566.1 | |
| 1.71 | -40.00 | 0.87 | -40.00 | 17.70 | 59.71 | 8.60 | 322.88 | 0.2371 | 419.5 | 999999 | |
| 2.07 | -40.00 | 1.05 | -40.00 | 17.02 | 59.58 | 8.47 | 321.41 | 0.2268 | -755.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 20.02 | 59.74 | 8.62 | 328.28 | 0.2691 | -870.0 | -668.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.44 | 59.43 | 8.32 | 320.19 | 0.2177 | 606.0 | 521.3 | |
| 0.00 | 3.51 | 0.00 | 1.77 | 15.58 | 59.39 | 8.28 | 317.55 | 0.2065 | 758.0 | 556.4 | |
| 0.00 | 3.60 | 0.00 | 1.82 | 16.39 | 58.98 | 7.87 | 321.55 | 0.2122 | 473.0 | 745.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 20.10 | 58.89 | 7.78 | 330.96 | 0.2630 | -728.0 | -574.3 | |
| 7.55 | -40.00 | 3.84 | -40.00 | 17.81 | 58.69 | 7.57 | 326.52 | 0.2285 | 1247.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 7.89 | 58.36 | 7.25 | 278.12 | 0.1268 | -906.0 | -692.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.85 | 58.62 | 7.50 | 324.21 | 0.2147 | 801.0 | 614.8 | |
| 15.28 | -40.00 | 7.79 | -40.00 | 18.55 | 58.62 | 7.51 | 328.53 | 0.2384 | 1296.7 | 999999 | |
| 18.79 | -40.00 | 9.57 | -40.00 | 18.15 | 58.61 | 7.49 | 327.64 | 0.2326 | 1328.7 | 999999 | |
| 34.16 | -40.00 | 17.46 | -40.00 | 19.17 | 58.62 | 7.51 | 329.92 | 0.2473 | 1131.3 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.64 | 16.67 | 58.45 | 7.34 | 324.29 | 0.2105 | 998.0 | 822.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.00 | 58.30 | 7.18 | 322.83 | 0.1999 | 896.0 | 728.5 | |
| 2.07 | -40.00 | 1.05 | -40.00 | 18.12 | 58.22 | 7.11 | 328.92 | 0.2288 | 1046.0 | 999999 | |
| 4.85 | -40.00 | 2.48 | -40.00 | 19.80 | 58.26 | 7.15 | 332.37 | 0.2535 | 822.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.01 | 58.01 | 6.90 | 316.82 | 0.1710 | 740.0 | 610.3 | |
| 0.00 | 11.59 | 0.00 | 5.91 | 19.00 | 57.84 | 6.72 | 332.19 | 0.2383 | 879.0 | 823.0 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 20.33 | 57.86 | 6.75 | 334.66 | 0.2585 | 832.0 | 719.6 | |
| 0.00 | 3.06 | 0.00 | 1.55 | 18.54 | 57.21 | 6.09 | 333.51 | 0.2266 | 1037.0 | 771.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 18.26 | 57.10 | 5.99 | 333.32 | 0.2216 | 905.0 | 757.9 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 19.94 | 56.74 | 5.63 | 337.79 | 0.2449 | 833.0 | 702.5 | |
| 8.18 | 56.18 | 4.10 | 28.14 | 14.03 | 56.28 | 5.17 | 324.85 | 0.1525 | 1216.5 | 604.2 | |
| 8.99 | -66.00 | 4.50 | -66.00 | 14.10 | 55.85 | 4.73 | 327.42 | 0.1493 | 1187.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.11 | 55.66 | 4.55 | 336.83 | 0.1935 | 797.0 | 675.7 | |
| 0.00 | 3.42 | 0.00 | 1.71 | 14.47 | 55.45 | 4.33 | 330.93 | 0.1512 | 924.0 | 729.6 | |
| 0.00 | 4.22 | 0.00 | 2.13 | 17.11 | 55.41 | 4.29 | 338.00 | 0.1918 | 907.0 | 838.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 15.02 | 55.36 | 4.25 | 333.11 | 0.1589 | 883.0 | 654.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 20.90 | 54.69 | 3.58 | 346.43 | 0.2497 | 911.0 | 733.3 | |
| 0.00 | 3.24 | 0.00 | 1.65 | 20.65 | 54.46 | 3.35 | 347.04 | 0.2447 | 973.0 | 740.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
