SDO HMI 2011-08-22 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.57 | 45.94 | 15.93 | 49.45 | 7.76 | 347.89 | -63.23 | 84.83 | 0.8871 | -262.2 | -219.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

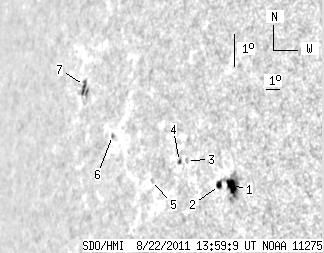

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.01 | 31.46 | 6.77 | 30.39 | 7.30 | 351.52 | -59.60 | 85.62 | 0.8600 | -729.8 | -422.7 | |
| 3.60 | -1.00 | 3.55 | -1.00 | 7.22 | 350.79 | -60.32 | 85.65 | 0.8664 | -288.2 | 999999 | |
| 0.00 | 1.98 | 0.00 | 2.09 | 7.75 | 348.53 | -62.58 | 84.88 | 0.8850 | -519.0 | -393.0 | |
| 0.54 | 1.89 | 0.58 | 2.02 | 7.67 | 348.08 | -63.03 | 84.93 | 0.8886 | -418.0 | -333.6 | |
| 0.00 | 0.90 | 0.00 | 1.03 | 6.90 | 346.32 | -64.80 | 85.66 | 0.9026 | -295.0 | -242.6 | |
| 0.00 | 1.80 | 0.00 | 2.32 | 7.91 | 342.99 | -68.12 | 84.28 | 0.9254 | 356.0 | 245.8 | |
| 3.42 | 7.91 | 5.03 | 11.60 | 9.11 | 340.00 | -71.11 | 82.76 | 0.9432 | 338.0 | 320.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
