groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 198.08 993.77 101.56 509.23 17.58 60.65 10.09 318.76 0.2548 -93.0 -67.5


previous   or   next   observation for the same group / back to the solar disc

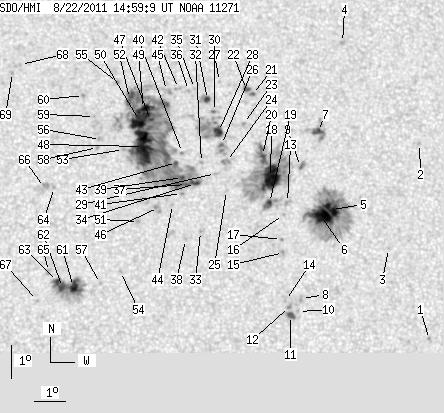

SDO HMI 2011-08-22 14:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.80 0.00 0.93 12.15 67.46 16.90 288.69 0.3014 -727.0 -583.2
2 0.00 1.08 0.00 0.57 18.16 67.63 17.07 305.62 0.3446 -849.0 -692.5
3 0.00 0.99 0.00 0.51 14.97 66.33 15.77 298.80 0.3009 -797.0 -647.3
4 0.00 2.43 0.00 1.28 21.38 65.38 14.82 316.76 0.3492 -869.0 -585.3
5 11.59 164.01 5.99 84.70 16.22 64.57 14.00 305.37 0.2862 -1155.7 -457.1
6 22.20 -5.00 11.45 -5.00 16.02 64.23 13.66 305.38 0.2797 -1360.9 999999
7 6.02 18.15 3.13 9.45 18.64 64.30 13.73 312.51 0.3065 1017.2 466.3
8 0.00 2.88 0.00 1.47 13.53 63.43 12.86 298.56 0.2476 -849.0 -658.2
9 0.81 3.59 0.42 1.86 17.57 63.65 13.09 310.99 0.2874 -684.4 -691.3
10 0.00 1.53 0.00 0.78 13.13 63.31 12.75 297.31 0.2429 -884.0 -689.6
11 3.95 4.85 2.02 2.47 13.02 63.05 12.49 297.33 0.2382 -1065.9 -941.9
12 0.00 2.61 0.00 1.33 13.29 63.03 12.47 298.40 0.2399 -1028.0 -848.1
13 0.00 3.15 0.00 1.62 16.48 63.15 12.59 308.89 0.2698 -871.0 -685.5
14 0.00 1.08 0.00 0.55 13.48 62.91 12.35 299.31 0.2396 -906.0 -736.1
15 0.00 1.80 0.00 0.92 14.95 62.93 12.37 304.49 0.2522 -946.0 -824.5
16 0.00 1.08 0.00 0.55 16.11 63.00 12.44 308.10 0.2642 -877.0 -711.8
17 0.00 1.62 0.00 0.83 15.35 62.89 12.33 305.90 0.2553 -943.0 -748.1
18 31.90 168.51 16.42 86.73 17.26 62.66 12.09 312.27 0.2716 -1249.0 -472.5
19 2.43 14.92 1.25 7.66 16.49 62.57 12.01 310.20 0.2624 -1114.6 -859.8
20 7.73 -18.00 3.98 -18.00 17.94 62.44 11.88 314.65 0.2765 -967.1 999999
21 1.62 6.20 0.84 3.22 19.84 62.25 11.69 319.83 0.2967 -1064.2 -783.9
22 2.97 -21.00 1.54 -21.00 20.00 62.06 11.50 320.63 0.2968 -978.0 999999
23 0.00 1.62 0.00 0.83 18.95 61.89 11.33 318.56 0.2820 -971.0 -776.8
24 0.00 4.94 0.00 2.54 17.78 61.26 10.70 317.11 0.2609 -1005.0 -888.4
25 0.00 1.26 0.00 0.64 16.89 61.21 10.65 314.70 0.2499 -830.0 -672.5
26 1.44 8.81 0.74 4.52 18.31 61.13 10.57 318.85 0.2659 -1059.8 -903.7
27 0.00 0.81 0.00 0.42 20.27 61.20 10.63 323.35 0.2913 -765.0 -635.0
28 7.37 46.91 3.79 24.12 18.72 61.06 10.50 320.07 0.2701 -1184.9 -470.3
29 0.00 1.80 0.00 0.92 17.42 60.89 10.32 317.09 0.2523 -853.0 -616.6
30 0.00 2.43 0.00 1.25 19.34 60.97 10.41 321.82 0.2770 -1107.0 -781.2
31 3.50 7.19 1.81 3.71 19.72 60.77 10.20 323.23 0.2798 -1042.9 -815.3
32 0.00 1.62 0.00 0.83 17.77 60.45 9.89 319.24 0.2517 -710.0 -524.0
33 0.00 1.26 0.00 0.64 15.65 60.31 9.75 313.23 0.2248 896.0 699.5
34 4.22 408.46 2.16 208.72 17.13 60.22 9.66 318.08 0.2412 -1083.2 265.8
35 0.00 1.35 0.00 0.70 20.07 60.36 9.80 325.07 0.2805 -848.0 -634.5
36 0.00 1.44 0.00 0.74 20.01 60.16 9.60 325.48 0.2778 -847.0 -651.0
37 0.63 -34.00 0.32 -34.00 17.10 59.93 9.37 318.86 0.2376 -1156.9 999999
38 0.00 1.26 0.00 0.64 15.41 59.82 9.26 313.86 0.2161 712.0 604.6
39 1.89 -34.00 0.96 -34.00 17.32 59.82 9.25 319.83 0.2391 -761.4 999999
40 0.00 1.44 0.00 0.74 18.09 59.86 9.29 321.80 0.2494 800.0 530.1
41 0.00 1.44 0.00 0.73 16.83 59.76 9.20 318.57 0.2323 -929.0 -709.4
42 0.00 2.61 0.00 1.34 20.08 59.84 9.28 326.52 0.2757 -811.0 -669.4
43 1.80 -34.00 0.92 -34.00 17.79 59.65 9.08 321.61 0.2432 405.0 999999
44 0.00 0.99 0.00 0.50 16.49 59.46 8.89 318.50 0.2247 683.0 471.3
45 0.00 5.66 0.00 2.91 20.02 59.44 8.88 327.52 0.2713 -213.0 -422.4
46 0.00 5.66 0.00 2.87 16.41 59.00 8.44 319.69 0.2186 749.0 631.3
47 1.44 -34.00 0.74 -34.00 19.13 58.87 8.31 327.27 0.2538 940.6 999999
48 35.50 -34.00 18.11 -34.00 18.30 58.61 8.05 326.16 0.2397 1340.2 999999
49 7.28 -34.00 3.73 -34.00 19.48 58.67 8.10 328.67 0.2568 1046.1 999999
50 19.32 -34.00 9.88 -34.00 19.11 58.52 7.96 328.33 0.2502 1268.8 999999
51 0.00 1.89 0.00 0.96 15.99 58.35 7.79 320.60 0.2061 904.0 670.1
52 8.27 -34.00 4.24 -34.00 19.79 58.23 7.66 330.70 0.2576 773.4 999999
53 0.00 1.08 0.00 0.55 18.22 57.96 7.40 328.12 0.2326 909.0 726.7
54 0.00 1.08 0.00 0.54 14.47 57.72 7.16 317.58 0.1798 -745.0 -475.9
55 0.00 1.53 0.00 0.78 20.30 57.86 7.30 332.83 0.2621 900.0 703.7
56 0.00 2.88 0.00 1.46 18.54 57.23 6.67 331.39 0.2311 760.0 744.8
57 0.00 0.99 0.00 0.50 14.11 57.08 6.52 318.79 0.1679 747.0 460.0
58 0.00 1.62 0.00 0.82 18.29 57.13 6.57 331.23 0.2266 983.0 731.4
59 0.00 0.81 0.00 0.41 19.25 57.07 6.51 333.45 0.2404 896.0 734.9
60 0.00 1.08 0.00 0.55 19.91 56.74 6.18 335.81 0.2480 904.0 797.7
61 6.74 55.72 3.38 27.94 14.03 56.23 5.67 322.33 0.1576 1237.5 672.8
62 4.22 -61.00 2.12 -61.00 14.00 55.89 5.32 323.94 0.1537 1253.9 999999
63 3.24 -61.00 1.62 -61.00 14.19 55.73 5.17 325.43 0.1547 1074.3 999999
64 0.00 1.08 0.00 0.54 17.07 55.71 5.15 334.08 0.1972 795.0 647.0
65 0.00 2.70 0.00 1.35 14.50 55.46 4.90 327.97 0.1565 805.0 681.1
66 0.00 6.47 0.00 3.27 17.07 55.39 4.83 335.48 0.1949 936.0 722.6
67 0.00 1.26 0.00 0.63 13.61 55.09 4.53 326.66 0.1404 896.0 635.1
68 0.00 1.08 0.00 0.55 20.89 54.73 4.16 344.32 0.2521 847.0 701.1
69 0.00 1.26 0.00 0.64 20.65 54.46 3.90 345.00 0.2469 1051.0 875.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
