Sunspot Group 11271

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11271	201.28	999.65	103.40	513.17	17.60	60.62	10.62	317.23	0.2612	-59.2	-66.3

previous or next observation for the same group / back to the solar disc

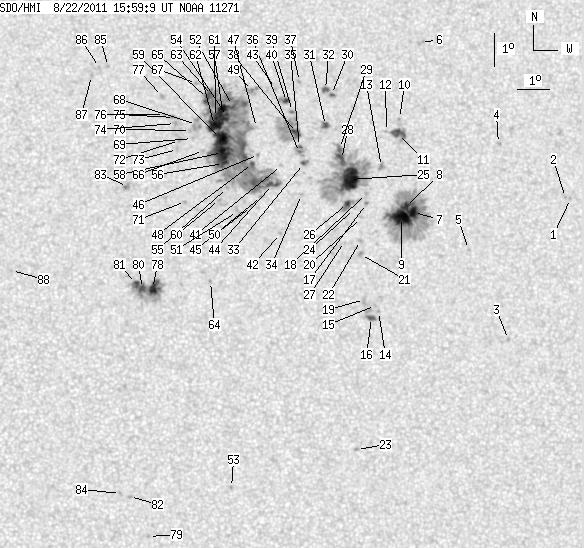

SDO HMI 2011-08-22 15:59:09 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.26	0.00	0.67	16.42	69.88	19.87	297.79	0.3701	-843.0	-693.0
2	0.00	1.08	0.00	0.57	16.46	69.72	19.71	298.05	0.3680	-817.0	-652.9
3	0.00	1.62	0.00	0.84	12.20	67.47	17.46	288.34	0.3103	-863.0	-677.3
4	0.00	2.25	0.00	1.19	18.21	67.65	17.65	304.90	0.3526	-853.0	-627.6
5	0.00	0.90	0.00	0.47	14.99	66.37	16.36	298.03	0.3096	-763.0	-675.4
6	0.00	2.61	0.00	1.38	21.43	65.38	15.37	315.87	0.3559	-805.0	-631.3
7	8.27	163.54	4.28	84.65	16.17	64.66	14.65	304.08	0.2946	-1184.7	-457.7
8	4.85	-7.00	2.51	-7.00	16.37	64.42	14.41	305.06	0.2930	-1084.1	999999
9	20.04	-7.00	10.36	-7.00	16.03	64.26	14.25	304.36	0.2879	-1405.1	999999
10	0.00	1.17	0.00	0.61	19.08	64.44	14.43	312.27	0.3197	-781.0	-512.3
11	8.54	12.94	4.45	6.75	18.62	64.37	14.36	311.26	0.3140	1013.9	703.9
12	0.00	1.53	0.00	0.80	18.69	63.98	13.97	312.18	0.3100	896.0	609.1
13	0.00	4.31	0.00	2.24	17.62	63.73	13.72	309.86	0.2958	-865.0	-642.5
14	0.00	1.08	0.00	0.55	13.18	63.34	13.33	296.52	0.2520	-846.0	-684.6
15	0.00	1.53	0.00	0.78	13.37	63.25	13.24	297.33	0.2520	-890.0	-712.0
16	3.95	8.09	2.02	4.13	13.00	63.10	13.09	296.25	0.2472	-1087.0	-829.4
17	0.00	1.62	0.00	0.83	16.49	63.16	13.15	307.80	0.2772	-887.0	-760.9
18	0.00	1.35	0.00	0.70	16.80	63.18	13.17	308.65	0.2805	-927.0	-673.2
19	0.00	3.86	0.00	1.98	13.56	62.91	12.90	298.61	0.2483	-874.0	-660.3
20	0.00	1.53	0.00	0.79	16.07	62.97	12.96	306.90	0.2706	-963.0	-697.3
21	0.00	2.97	0.00	1.52	14.94	62.86	12.85	303.48	0.2588	-981.0	-798.7
22	0.00	2.07	0.00	1.06	15.36	62.89	12.88	304.84	0.2630	-1101.0	-775.6
23	0.00	1.98	0.00	1.00	9.01	62.45	12.44	280.39	0.2173	-876.0	-629.6
24	0.00	1.26	0.00	0.65	16.35	62.76	12.75	308.18	0.2706	-719.0	-608.7
25	29.65	172.88	15.29	89.12	17.25	62.66	12.65	311.01	0.2783	-1291.2	-514.3
26	2.88	-25.00	1.48	-25.00	16.51	62.54	12.53	309.11	0.2693	-1136.0	999999
27	0.00	0.72	0.00	0.37	15.35	62.37	12.36	305.83	0.2558	-463.0	-567.6
28	6.83	-25.00	3.53	-25.00	17.87	62.44	12.43	313.20	0.2823	-1021.1	999999
29	2.70	-25.00	1.39	-25.00	18.21	62.40	12.39	314.21	0.2856	-836.0	999999
30	1.62	2.97	0.84	1.54	19.89	62.26	12.25	318.65	0.3035	-1024.3	-718.2
31	3.59	5.66	1.86	2.93	18.93	61.99	11.98	316.97	0.2891	-937.5	-838.3
32	3.32	3.59	1.73	1.87	20.05	62.08	12.07	319.44	0.3034	-974.5	-817.7
33	2.07	3.14	1.06	1.62	17.77	61.20	11.19	315.85	0.2664	-986.9	-906.9
34	0.00	1.71	0.00	0.87	16.82	61.07	11.07	313.43	0.2541	-727.0	-533.3
35	1.26	9.97	0.65	5.13	18.30	61.10	11.09	317.49	0.2715	-952.6	-795.2
36	0.90	-35.00	0.46	-35.00	18.12	61.09	11.08	317.04	0.2692	-1053.8	999999
37	0.00	1.62	0.00	0.84	20.32	61.24	11.23	321.99	0.2979	-780.0	-587.7
38	5.39	49.15	2.78	25.31	18.74	61.03	11.02	318.78	0.2760	-1225.4	-470.9
39	0.00	1.71	0.00	0.88	19.39	60.94	10.94	320.59	0.2832	-1085.0	-889.8
40	3.14	5.93	1.62	3.06	19.71	60.77	10.76	321.77	0.2853	-1088.1	-820.9
41	0.00	1.26	0.00	0.64	17.73	60.48	10.47	317.55	0.2576	-785.0	-556.2
42	0.00	1.80	0.00	0.92	15.64	60.33	10.33	311.61	0.2319	826.0	637.5
43	0.00	1.17	0.00	0.60	20.12	60.44	10.43	323.53	0.2872	-847.0	-654.5
44	5.12	395.64	2.62	202.48	17.15	60.16	10.15	316.78	0.2470	-1095.6	248.5
45	0.00	1.98	0.00	1.01	16.79	59.78	9.78	316.76	0.2383	-947.0	-620.2
46	0.00	1.26	0.00	0.64	18.08	59.76	9.75	320.47	0.2540	843.0	652.0
47	0.00	1.71	0.00	0.88	18.92	59.74	9.73	322.63	0.2646	-70.0	-22.6
48	1.62	-44.00	0.83	-44.00	17.81	59.55	9.54	320.34	0.2483	451.6	999999
49	0.00	8.72	0.00	4.50	20.07	59.68	9.67	325.42	0.2793	-981.0	-573.5
50	0.00	1.17	0.00	0.59	16.49	59.45	9.44	316.82	0.2308	680.0	507.6
51	0.00	3.59	0.00	1.83	16.34	58.99	8.98	317.74	0.2238	751.0	718.2
52	0.45	-44.00	0.23	-44.00	19.62	59.00	8.99	326.33	0.2667	661.0	999999
53	0.00	1.17	0.00	0.59	7.94	58.52	8.52	277.35	0.1486	-906.0	-700.1
54	3.23	-44.00	1.66	-44.00	19.28	58.82	8.81	326.10	0.2604	1001.1	999999
55	0.00	1.71	0.00	0.87	17.08	58.71	8.70	320.86	0.2300	810.0	610.9
56	4.67	-44.00	2.38	-44.00	17.83	58.61	8.61	323.18	0.2388	1214.9	999999
57	10.78	-44.00	5.53	-44.00	19.44	58.66	8.66	326.91	0.2611	1152.2	999999
58	17.52	-44.00	8.95	-44.00	18.17	58.60	8.59	324.11	0.2432	1346.8	999999
59	13.75	-44.00	7.03	-44.00	18.60	58.56	8.55	325.31	0.2486	1314.5	999999
60	0.00	1.26	0.00	0.64	16.72	58.43	8.43	320.67	0.2224	925.0	742.8
61	0.90	-44.00	0.46	-44.00	19.25	58.43	8.42	327.22	0.2564	1191.9	999999
62	12.76	-44.00	6.53	-44.00	19.01	58.38	8.37	326.80	0.2526	1290.5	999999
63	1.44	-44.00	0.74	-44.00	19.94	58.37	8.36	328.87	0.2655	-177.9	999999
64	0.00	1.26	0.00	0.63	14.21	58.05	8.04	313.33	0.1872	-755.0	-542.1
65	7.10	-44.00	3.64	-44.00	19.85	58.20	8.19	329.19	0.2628	798.6	999999
66	0.00	1.62	0.00	0.82	18.24	57.99	7.98	326.23	0.2383	822.0	571.5
67	0.00	1.89	0.00	0.97	20.32	57.86	7.86	331.15	0.2668	886.0	665.0
68	0.00	9.79	0.00	5.01	19.05	57.80	7.79	328.72	0.2479	701.0	858.1
69	0.00	1.17	0.00	0.60	18.62	57.65	7.64	328.23	0.2405	759.0	662.7
70	0.00	1.44	0.00	0.73	18.86	57.60	7.59	328.97	0.2435	895.0	710.8
71	0.00	1.26	0.00	0.64	16.68	57.35	7.34	324.29	0.2106	1010.0	742.8
72	0.00	1.62	0.00	0.82	18.56	57.23	7.22	329.52	0.2360	992.0	779.1
73	0.00	1.98	0.00	1.01	18.28	57.15	7.15	329.14	0.2313	839.0	655.5
74	0.00	2.34	0.00	1.19	19.09	57.12	7.12	331.03	0.2428	969.0	804.1
75	0.00	3.14	0.00	1.61	19.27	57.10	7.09	331.50	0.2453	1003.0	738.9
76	0.00	0.99	0.00	0.50	19.37	56.78	6.77	332.77	0.2442	814.0	635.5
77	0.00	2.34	0.00	1.20	19.93	56.74	6.73	333.98	0.2523	916.0	768.5
78	6.11	53.73	3.07	26.97	14.03	56.21	6.21	319.81	0.1633	1256.5	701.4
79	0.00	1.26	0.00	0.63	6.49	55.95	5.94	266.11	0.1035	-908.0	-733.5
80	3.77	-78.00	1.89	-78.00	14.03	55.90	5.89	321.27	0.1599	1320.2	999999
81	3.06	-78.00	1.53	-78.00	14.18	55.72	5.71	322.75	0.1600	1054.4	999999
82	0.00	1.62	0.00	0.80	7.71	55.38	5.37	278.68	0.0942	828.0	720.1
83	0.00	3.41	0.00	1.73	17.16	55.51	5.51	332.77	0.2012	1046.0	898.2
84	0.00	1.62	0.00	0.80	7.81	55.10	5.09	280.15	0.0898	924.0	718.1
85	0.00	0.99	0.00	0.51	20.89	55.02	5.01	341.33	0.2562	866.0	669.7
86	0.00	1.44	0.00	0.74	20.86	54.73	4.72	342.32	0.2542	920.0	752.8
87	0.00	1.80	0.00	0.92	20.61	54.46	4.45	342.95	0.2488	966.0	749.7
88	0.00	0.90	0.00	0.45	14.61	51.80	1.80	347.23	0.1377	851.0	618.8

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
